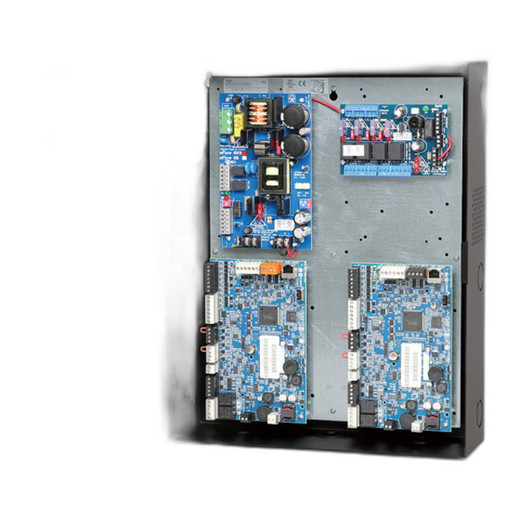

Altronix TROVE1C1 Access Control Integration Enclosure
The Altronix TROVE1C1 is a purpose-built integration enclosure that consolidates access control power distribution, relay management, and device mounting into a single compact unit. Rather than scattered relay boxes and separate power supplies across a facility, the TROVE1C1 centralizes these functions into one backplane-integrated platform, reducing installation labor, troubleshooting surface area, and cable routing complexity in mid-scale access control deployments.
Overview
The TROVE1C1 serves as a central hub for access control system components, combining integrated backplane architecture, power distribution circuits, and standardized DIN rail mounting in one enclosure. This consolidation eliminates the need for point-to-point wiring between control modules, relays, and door strike power circuits—a significant reduction in field assembly time and connector failure modes. The unit supports wall or cabinet mounting, adapting to space constraints common in retrofit installations or environments where electrical infrastructure is already built out.
The integrated backplane accepts plug-in modules for relay control, door strike management, magnetic lock circuits, and auxiliary power distribution. This modular approach allows you to configure the TROVE1C1 for your specific deployment without overbuilding unnecessary functions into the base system. The pre-wired backplane termination further reduces field wiring labor compared to terminal-block-based designs.
Key Features
- Integrated Backplane Architecture: Eliminates connector clutter and point-to-point wiring between control modules and relays. Fewer connection points mean fewer failure modes in field service and faster commissioning.
- Consolidated Power Distribution: Centralized management of door strike power, magnetic lock circuits, and auxiliary circuits reduces the footprint and simplifies troubleshooting. One power entry point beats managing distributed supplies across multiple locations.
- Pre-Wired Backplane Termination: Factory-terminated backplane reduces on-site wiring labor. Installers assemble and configure modules rather than terminate and test dozens of individual circuits.
- DIN Rail Module Mounting: Standard DIN rail acceptance supports rapid module swapping, expansion, or service replacement without rewiring the entire access control circuit.
- Compact Form Factor: Designed to fit space-constrained electrical rooms, wall-mounted cabinets, or retrofit installations where distributed relay boxes are impractical.
- CDVI Access Control Compatibility: Native integration with CDVI access control platforms and standard Altronix power distribution modules ensures predictable system behavior and reduces integration testing overhead.
Integration and Compatibility
The TROVE1C1 is engineered as part of the Altronix ecosystem and provides native compatibility with CDVI access control systems. The modular backplane accepts industry-standard relay control modules, door strike power modules, and auxiliary power circuits. When paired with appropriate Altronix or compatible third-party modules, the unit becomes a turnkey platform for single-door to small multi-door deployments.
The standardized backplane pinout accelerates commissioning and reduces training overhead for field teams unfamiliar with custom wiring harnesses. This predictable architecture also supports future expansion—additional modules can be added to the DIN rail without rewiring the entire access control circuit, a practical benefit when client requirements change post-deployment.
Typical Applications
The TROVE1C1 is well-suited for office buildings, retail facilities, educational institutions, and light industrial environments requiring centralized access control. It functions as an effective consolidation point for door strike power, request-to-exit sensors, magnetic lock circuits, and auxiliary relay outputs. Security integrators commonly specify the TROVE1C1 in retrofit scenarios where space constraints or electrical infrastructure limitations make distributed power supplies impractical. Integrators also value the centralized design during troubleshooting—system issues can be diagnosed at a single enclosure rather than across multiple cabinets or wall-mounted boxes.
Frequently Asked Questions
Q: Does the TROVE1C1 require external power supplies to function?
A: The TROVE1C1 is a power distribution and integration enclosure designed to consolidate power management for access control circuits. It accepts power modules and distributes power to door strikes, magnetic locks, and relays. Specific power input requirements and external supply sizing depend on the modules installed and the total load of connected devices.
Q: Can the TROVE1C1 be expanded with additional modules after initial installation?
A: Yes. The DIN rail backplane architecture allows you to add or swap modules without rewiring the entire system. This supports both expansion and service replacement scenarios.
Q: Is the TROVE1C1 compatible with non-CDVI access control systems?
A: The TROVE1C1 is engineered with native CDVI compatibility. Compatibility with other access control platforms depends on the relay and power modules installed and your integrator's wiring configuration.
Q: What mounting options does the TROVE1C1 support?
A: The unit supports wall mounting and cabinet mounting, adapting to space-constrained installations or retrofit scenarios where distributed relay boxes are impractical.
Q: How does the TROVE1C1 reduce installation labor compared to traditional relay box installations?
A: The integrated backplane eliminates point-to-point wiring between control modules, relays, and power circuits. Pre-wired backplane termination reduces field assembly time and simplifies troubleshooting by centralizing all major components into one enclosure.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Altronix TROVE1C1 during planning phases for mid-tier access control rollouts, and it addresses a specific but important need in our install workflow: eliminating the cable management nightmare that comes with distributed relay boxes and separate power supplies. The backplane consolidation is genuinely valuable for reducing field assembly time and troubleshooting surface area. If you're fielding multiple door control points and space is constrained, the TROVE1C1 delivers measurable labor savings.
Technical Highlights:
- Integrated Backplane Architecture: Eliminates point-to-point wiring between control modules and relays, cutting connector count and reducing failure modes. Field assembly time drops noticeably compared to terminal-block designs when you're handling five or more circuits.
- Pre-Wired Termination: Factory-terminated backplane means installers configure modules rather than terminate individual wires. Reduces commissioning labor and inspection rework significantly in retrofit scenarios.
- Modular DIN Rail Mounting: Standard DIN rail support allows rapid module swaps, expansions, or replacements without full system rewiring. Valuable when client requirements change or modules fail in service.
Deployment Considerations:
- The TROVE1C1 is purpose-built for CDVI ecosystem integration. If your shop is committed to that platform, integration is smooth. If you're mixing access control vendors, verify module compatibility upfront with your control platform engineer.
- Centralized design is a strength for troubleshooting but a potential single point of failure—if the enclosure or backplane fails, multiple doors go offline simultaneously. Design your monitoring and redundancy strategy accordingly in mission-critical installations.
Position this unit for retrofit installations where space or electrical infrastructure makes distributed relay boxes impractical, and for integrators who prioritize labor efficiency and centralized commissioning. The modular backplane future-proofs the installation against modest requirement changes without requiring a complete rewire.
