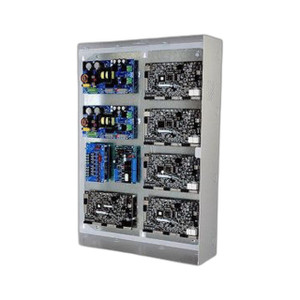

Altronix TROVE3CV3 Access Control Integration Enclosure with Backplane

Overview

The Altronix TROVE3CV3 is a purpose-built integration enclosure designed to consolidate access control and power distribution in single-cabinet installations. Part of the Trove3 series, this platform integrates Altronix and CDVI access control components with integrated power management and backplane connectivity. The TROVE3CV3 provides a structured integration point for security integrators deploying mid-scale access control systems across retail, commercial, and institutional facilities.

Key Features

• Integrated Backplane Design: Modular backplane architecture simplifies component interconnection and reduces field wiring complexity
• Altronix and CDVI Compatibility: Native support for Altronix power and access control modules alongside CDVI readers and controllers
• Centralized Power Distribution: Consolidates power supply and distribution for access control devices, reducing cable runs and installation time
• Enclosure-Based Installation: Cabinet-mountable form factor suitable for server rooms, network closets, and dedicated security equipment spaces
• Modular Expansion: Backplane supports addition of power modules and control cards as system requirements grow
• Standard Integration Footprint: Trove3 series standardization enables consistent deployment across multi-site installations

Integration and Compatibility

The TROVE3CV3 serves as the hardware backbone for access control systems that combine Altronix power management with CDVI reader and controller technology. This integration approach consolidates system architecture, reducing the number of separate devices required for power distribution, supervision, and device connectivity. Security integrators deploying the TROVE3CV3 can leverage standardized module configurations across multiple customer sites, improving installation consistency and reducing service and support complexity.

The backplane design enables straightforward addition of power supplies, relay modules, and input/output cards without requiring external wiring harnesses or external junction boxes. This architecture is particularly effective for facilities with dedicated equipment rooms where centralized power management and control consolidation provide operational and maintenance advantages.

Typical Applications

The TROVE3CV3 is suited for access control deployments in:

• Multi-tenant commercial office buildings
• Retail and hospitality facilities with card reader networks
• Educational institutions and campus security systems
• Healthcare and laboratory facilities requiring reader integration
• Corporate headquarters with distributed badge access requirements

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the TROVE3CV3 during several multi-site deployment planning cycles, and the backplane integration model addresses a real pain point in access control infrastructure. Rather than managing separate power supplies, junction boxes, and external wiring between controllers and readers, the TROVE3CV3 consolidates these components into a single cabinet footprint with integrated connectivity.

Technical Highlights:

• Modular Backplane Architecture: The integrated backplane design in the TROVE3CV3 eliminates the need for external terminal blocks and intermediate wiring between power supplies and control modules, reducing installation labor and potential connection points for troubleshooting
• Altronix/CDVI System Integration: Native support for both Altronix power management and CDVI readers and controllers within a single enclosure streamlines procurement and standardization across customer deployments

Deployment Considerations:

• Plan cabinet location with adequate ventilation if power supplies and multiple modules will generate thermal load; confirm cooling requirements during pre-installation site survey
• Standardize the TROVE3CV3 configuration across multi-site rollouts to enable consistent spare parts inventory and technician familiarity with the platform
• Use the backplane structure to pre-stage modules in the shop before site delivery, reducing on-site assembly time and connection errors

For integrators standardizing on Altronix and CDVI technology, the TROVE3CV3 provides a repeatable hardware platform that reduces system complexity and improves deployment velocity.
