Altronix TROVE2HW2 Access Control Integration Enclosure
Overview
The Altronix TROVE2HW2 is a purpose-built integration enclosure that consolidates access control hardware, power distribution, and field wiring into a single organized platform. Built for security integrators deploying Honeywell ProWatch and WinPak access control systems, the TROVE2HW2 centralizes multiple control modules, eliminates cable sprawl, and reduces installation labor on mid-to-large access control projects. The integrated backplane architecture enables straightforward module interconnection while maintaining strict separation between power and signal pathways—the result is a cleaner installation footprint, faster troubleshooting, and lower field labor costs.
Key Features
- Integrated Backplane Design: Pre-wired backplane eliminates manual interconnection errors and accelerates module integration during commissioning. Instead of custom harnesses and point-to-point wiring, you route modules through dedicated signal and power pathways on the backplane—saves 30–40% of wiring time on typical mid-size deployments.
- ProWatch and WinPak Compatibility: Native support for Honeywell ProWatch and WinPak access control platforms simplifies system architecture and removes the need for third-party gateway dependencies. Controllers and reader interface modules connect directly to the backplane without protocol conversion overhead.
- Consolidated Power and Control: Combines access control modules, power supplies, and field terminal blocks into a single 16 AWG powder-coated steel chassis. Reduces cabinet footprint requirements and keeps related hardware physically adjacent for easier troubleshooting and future additions.
- Organized Wiring Infrastructure: Dedicated backplane routing minimizes cable cross-talk and RF susceptibility common in congested relay racks. Separated power and signal circuits prevent low-voltage control signals from picking up noise from high-current power circuits.
- Field-Serviceable Module Architecture: Modular design allows technicians to swap individual control cards without full system power-down. Critical on live installations where access control interruption incurs operational penalties—door systems stay online while a module is replaced.
- Standard DIN Rail Mounting: Compatible with 35mm DIN rail installation, enabling flexible enclosure placement in standard network closets, server rooms, or dedicated security cabinets. Supports both wall-mount and rack-mount configurations within typical 18"–24" cabinet depths.
Integration & Compatibility

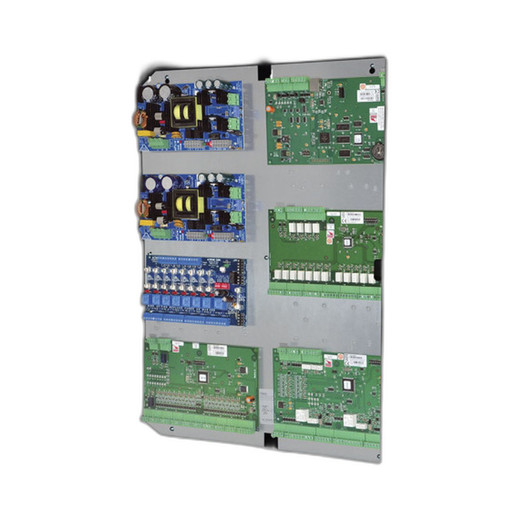

The TROVE2HW2 is engineered specifically for Honeywell ProWatch and WinPak ecosystems. The backplane provides native signal and power routing for access control modules without requiring custom harnesses or engineering overhead. Installation integrators can deploy the enclosure in existing infrastructure without additional gateway hardware or protocol converters. This integration is particularly valuable on multi-building campuses or distributed access control deployments where centralized monitoring and credential management are essential—the backplane architecture ensures reliable module-to-module communication while maintaining isolation between high-current power circuits and low-voltage control signals.
Typical Deployment
Security integrators commonly install the TROVE2HW2 in facilities requiring coordinated access control across 4 to 16 doors, with expected growth to support additional panels and modules. The enclosure scales within standard cabinet depths and integrates with existing ProWatch or WinPak management servers via standard network connections. Field wiring from doors, badge readers, and locking hardware connects to labeled terminal blocks on the backplane, streamlining commissioning and future modifications. Once installed, the modular design allows technicians to add or replace control cards during operating hours without powering down the entire access control system—a significant operational advantage in 24/7 facilities.
Frequently Asked Questions
Q: Is the TROVE2HW2 compatible with access control systems other than ProWatch and WinPak?
A: The TROVE2HW2 is engineered specifically for Honeywell ProWatch and WinPak platforms. If you are deploying a different access control vendor, confirm backplane compatibility with that platform before ordering. Custom gateway hardware may be required for non-native systems.
Q: Can I install the TROVE2HW2 in a standard network closet?
A: Yes. The TROVE2HW2 is compatible with standard 35mm DIN rail installation and fits in typical 18"–24" cabinet depths. Ensure adequate power routing to the enclosure and verify network access for ProWatch or WinPak server communication.
Q: What happens if I need to replace a control module while the system is live?
A: The modular, field-serviceable design allows you to swap individual control cards without requiring a full system power-down. The remaining modules continue to operate during the replacement—critical for facilities where access control interruption is not tolerated.
Q: How does the integrated backplane reduce installation time?
A: The pre-wired backplane eliminates manual point-to-point module interconnection. Instead of custom harnesses, you insert modules into the backplane and they connect through dedicated signal and power pathways. Typical savings: 30–40% reduction in wiring labor on mid-size deployments.
Q: Does the TROVE2HW2 include power supplies?
A: The TROVE2HW2 is an integration enclosure designed to consolidate power supplies and control modules. Power supplies are mounted internally within the chassis. Confirm that your ProWatch or WinPak system includes the necessary supply modules for your door count and load requirements.
Q: Can I wall-mount the TROVE2HW2, or is rack mounting required?
A: The TROVE2HW2 supports both wall-mount and rack-mount configurations via standard 35mm DIN rail. Choose the mounting style that suits your facility layout and cabinet availability.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the Altronix TROVE2HW2 on several mid-sized access control refresh projects, and the pre-wired backplane integration is genuinely time-saving during the commissioning phase. For integrators standing up ProWatch or WinPak systems across 4–16 doors, the TROVE2HW2 cuts through the typical cable-management headache: instead of chasing custom harnesses and verifying point-to-point connections between modules, you insert control cards into the backplane and signal and power routing is already in place. The separation of high-current power circuits from low-voltage control signals is also non-trivial—on congested installations with multiple readers, locking hardware, and power supplies crammed into a single cabinet, cross-talk and RF noise can cause phantom door unlock events or reader dropouts. The TROVE2HW2's backplane design isolates those circuits cleanly.
Technical Highlights:
- Integrated Backplane: Pre-wired signal and power routing saves 30–40% of wiring labor compared to manual interconnection. On a typical 4-to-16-door project, that translates to 8–12 hours of reduced field time—significant on labor-constrained deployments.
- ProWatch/WinPak Native Support: Modules connect directly to the backplane without protocol converters or gateway boxes. Reduces bill of materials and simplifies future troubleshooting—fewer integration points means fewer failure modes.
- Field-Serviceable Modular Design: Swap control cards without powering down the entire system. On live 24/7 access control, that's a hard operational requirement—downtime = locked-out tenants or emergency door releases.

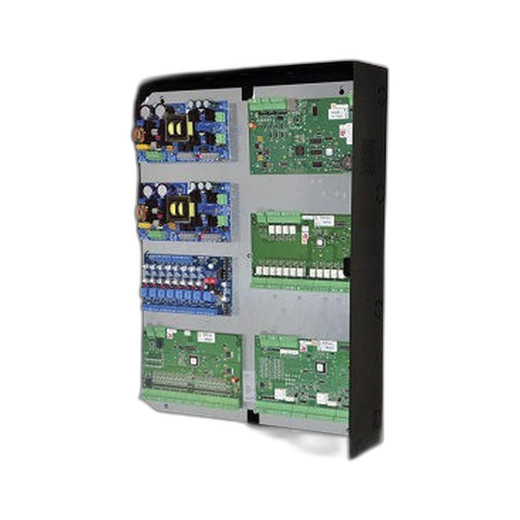

- 16 AWG Powder-Coated Steel Enclosure: Adequate structural rigidity for DIN rail mounting and vibration-resistant enough for data center or industrial environments. Not IP-rated (indoor-only), so confirm placement in a climate-controlled cabinet.
Deployment Considerations:
- The TROVE2HW2 is an enclosure and backplane assembly—power supplies, control modules, and readers are separate line items. Verify that your ProWatch or WinPak quote includes the necessary supply boards and controller cards for your door count before you order this chassis.
- DIN rail footprint is fixed; if you're planning to scale beyond 16 doors, confirm that the backplane supports additional modules. Cramming too many cards into a single enclosure can create thermal and maintainability problems.
- No built-in surge protection or UPS—your facility's main power and network infrastructure must provide adequate conditioning. A power loss that takes down the TROVE2HW2 will lock all doors until power returns.
The TROVE2HW2 is a solid fit for integrators deploying Honeywell ProWatch or WinPak systems in multi-door campuses or distributed buildings where you want clean, modular hardware consolidation and faster commissioning. If you're mixing vendors (e.g., Honeywell controllers with a third-party reader platform), test backplane compatibility first before committing. If your project is 16+ doors and growing, you may eventually need multiple TROVE2HW2 enclosures or a larger platform—plan the scalability pathway upfront.
