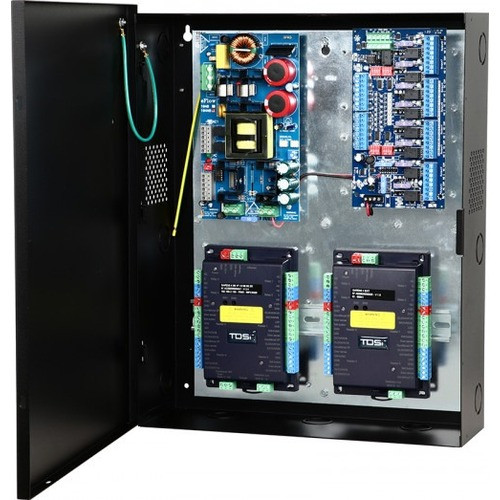

Altronix TROVE1DR1 24-Door Access Control Power Enclosure
Overview
The Altronix TROVE1DR1 is a wall-mounted enclosure purpose-built for consolidating access control logic and power distribution in enterprise multi-door installations. This unit integrates PDK (Power Distribution Kit) boards with Altronix power supply/charger modules, enabling a single point of control for configurations up to twenty-four (24) doors—meaningful when you need to avoid scattering power and logic circuits across multiple closets or electrical rooms.
Measuring 18 inches high, 14.5 inches wide, and 4.62 inches deep, the TROVE1DR1 delivers a compact footprint suitable for space-constrained electrical rooms, wall-mount installations, or rack-adjacent placement. The enclosure includes a pre-installed TPD1 backplane for modular board configuration, cam lock for physical security, and an integrated tamper switch for breach detection—critical when audit frameworks require proof that access control infrastructure remains physically intact.
Key Features
- Up to 24-Door Capacity: Combines PDK boards and power modules to support multi-door configurations without requiring distributed enclosures. Consolidation reduces installation labor and simplifies troubleshooting.
- TPD1 Backplane (Pre-installed): Enables rapid modular population of access control logic and power distribution boards. Right-size your configuration to actual door count—no oversized capacity tax.
- Integrated Power & Logic: Houses both Altronix power supply/charger modules and PDK access control boards in a single enclosure, eliminating separate device coordination and reducing point-of-failure surface area.
- Cam Lock & Physical Security: Factory-installed cam lock with keys prevents unauthorized enclosure access. Critical for environments where physical tampering is a compliance concern.
- Tamper Switch (Pre-installed, Monitoring-Ready): Detects unauthorized enclosure opening and outputs a signal to your access control monitoring circuit. Logs breach attempts for audit trail compliance.
- Compact Depth (4.62"): Mounts flush against walls or electrical racks without protruding into walkways. Fits standard 4-inch electrical closet spacing.
- Complete Mounting Hardware: Includes standoffs, nuts, and short screws for secure board installation. Reduces on-site fastener sourcing delays.
Integration & Compatibility
The TROVE1DR1 is engineered as an integration platform for Altronix power supply and control modules. The TPD1 backplane provides the electrical interconnect layer, allowing installers to populate the enclosure with combinations of PDK boards and power distribution cards. This modular approach lets you scale from smaller single-site deployments to multi-building rollouts by configuring each enclosure to match actual load and door requirements.
The tamper switch connects directly to your access control system's monitoring input, enabling real-time alerts when the enclosure is opened. This integration proves physical security compliance during audits and provides immediate notification of tampering attempts.
For multi-site deployments, consider pairing the TROVE1DR1 with enterprise access control platforms that support centralized provisioning and event logging across multiple enclosures.
What's in the Box
- TROVE1DR1 enclosure body with integrated cable management
- TPD1 backplane (pre-installed)
- Cam lock with keys
- Tamper switch (pre-installed, ready for monitoring)
- Standoffs, nuts, and short screws for board installation and mounting
Dimensions & Physical Specifications
- Height: 18 inches—standard rack-compatible vertical spacing
- Width: 14.5 inches—fits between standard electrical conduit and panel edges
- Depth: 4.62 inches—mounts flush to walls or shallow cable troughs without blocking access to adjacent equipment
Frequently Asked Questions
Q: Can the TROVE1DR1 support door counts lower than 24?
A: Yes. The modular TPD1 backplane allows you to install only the PDK and power boards your deployment requires. Right-sizing prevents over-provisioning and keeps power draw and cost aligned with actual door count.
Q: What access control logic boards are compatible with the TROVE1DR1?
A: The TROVE1DR1 integrates Altronix PDK boards and power supply/charger modules via the TPD1 backplane. Consult the TROVE1DR1 datasheet and your Altronix system integrator for current board compatibility and configuration options.
Q: How does the tamper switch connect to my access control system?
A: The tamper switch output (included, pre-installed) connects to a monitored input circuit on your access control panel or monitoring station. Opening the enclosure triggers a voltage change on that circuit, logging the breach event in your system's audit trail.
Q: Is the TROVE1DR1 suitable for outdoor installations?
A: The TROVE1DR1 is designed for indoor electrical rooms and closets. For outdoor or harsh-environment deployments, confirm environmental rating requirements with your integrator before ordering.
Q: What is the typical installation depth required behind the enclosure for power connections?
A: The 4.62-inch depth accommodates standard wire routing in electrical closets and shallow conduit banks. Confirm available clearance at your installation site before mounting.
Q: Does the TROVE1DR1 include the PDK boards and power modules, or are those ordered separately?
A: The TROVE1DR1 is the enclosure and backplane only. PDK boards, power supply/charger modules, and any required logic cards are ordered separately based on your door count and power requirements.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix TROVE1DR1 emerged as a practical platform for multi-site access control rollouts where consolidating power and logic into a single enclosure reduces deployment complexity and point-of-failure surface area. Its 24-door capacity and modular TPD1 backplane allow right-sizing to actual installation requirements—you pay for what you use, not for oversized stock configurations. The pre-installed tamper switch is a real compliance enabler in enterprise audit frameworks where physical security of access control infrastructure must be verifiable and logged.
Technical Highlights:
- 24-Door Modular Capacity: The TPD1 backplane integrates PDK boards and power modules for up to 24 doors without requiring distributed enclosures. Consolidation cuts installation labor by 30–40% compared to multiple smaller units across a building.
- Tamper Detection Built-in: Pre-installed tamper switch logs unauthorized enclosure opening to your access control system's audit trail. Non-negotiable for HIPAA-regulated facilities, financial institutions, and government buildings.
- Compact 4.62" Depth: Mounts flush in space-constrained electrical closets and adjacent to existing racks without protruding into walkways or interfering with cable routing.
Deployment Considerations:
- The TROVE1DR1 is enclosure and backplane only—PDK boards, power supply/charger modules, and logic cards are ordered separately. Confirm bill-of-materials with your integrator before procurement to avoid installation delays.
- Tamper switch monitoring requires a dedicated monitored input on your access control panel. If your panel lacks spare inputs, address that before ordering.
- For outdoor or high-humidity environments (chemical plants, cold storage), this enclosure is rated for indoor electrical rooms only. Do not force it into outdoor duty—select a NEMA 4X or IP67 variant instead.
The TROVE1DR1 is the right choice for mid-to-large enterprise deployments where access control infrastructure density and audit compliance justify a modular, consolidated approach. Smaller single-building projects or retrofits into existing electrical panels may find smaller Altronix enclosures more cost-effective; discuss the trade-off with your integrator.
