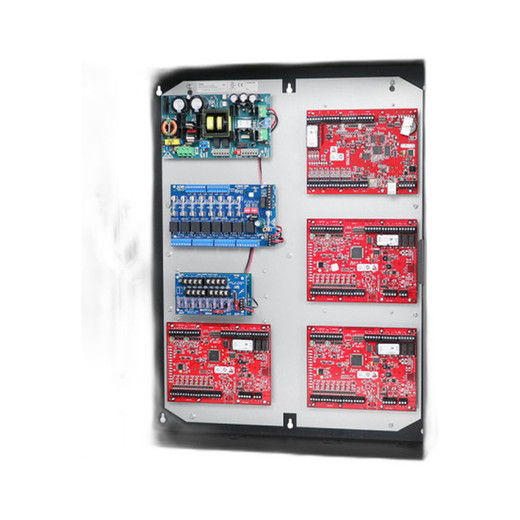

Altronix TROVE2M2 Access Control & Power Integration Enclosure
Overview
The Altronix TROVE2M2 is a purpose-built integration enclosure that consolidates access control logic and distributed power delivery into a single, centralized chassis. Built on the Trove 2 Series platform, it pairs Mercury access control modules (door controllers, reader interfaces, credential processors) with Altronix power supplies and battery chargers on an integrated backplane. The result: one enclosure instead of separate access and power cabinets, reducing installation labor, cable clutter, and points of failure across multi-door enterprise security deployments.
Key Features

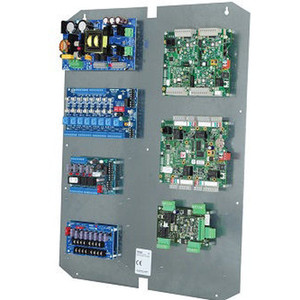

- Integrated Backplane Architecture — Mercury and Altronix modules mount directly to a pre-wired motherboard without external harnesses. You eliminate hours of manual wiring per installation and reduce the risk of loose connections or miswired circuits — critical in systems managing emergency egress or high-traffic facilities.
- Mercury Module Compatibility — Natively accepts Mercury door controllers, reader interface cards, and credential processing modules. Verify your specific Mercury SKUs against Trove 2 technical documentation before ordering to confirm slot compatibility and electrical pinouts.
- Altronix Power Supply Support — 24VDC output accepts compatible Altronix regulated power supplies and battery charger modules (sold separately). This means you source power distribution and backup charging from a single vendor ecosystem, simplifying procurement and technical support.
- UL Listed Enclosure — Meets UL safety standards for commercial electrical installations. Reduces design-review friction and speeds commissioning sign-off by facility engineering and AHJ inspectors — a real time-saver in enterprise deployments where electrical compliance is a gate.
- Tool-Free DIN Rail Module Mounting — Modules slide onto standard DIN rails and click into backplane connectors. No pin-header wiring, no crimping. Technician setup is faster and training overhead drops — important when you're scaling deployments across multiple locations or integrators.
- Centralized Power Distribution — Single enclosure consolidates 24VDC power for locks, readers, sensors, and auxiliary circuits. Troubleshooting is faster because power and logic are co-located, and you have fewer points of failure to chase in the field.
- Scalable Modular Architecture — Add Mercury modules and power supplies incrementally as customer requirements grow. No need to rip out and replace the entire cabinet — you expand in-place, protecting your initial investment.
- 19-Inch Rack & Cabinet Ready — Engineered for standard equipment racks and floor-standing security enclosures. Fits seamlessly into existing infrastructure deployments or shared security rooms alongside networking, video, and alarm equipment.
Integration and Compatibility
The TROVE2M2 is a dedicated platform for Altronix and Mercury products. Access control functionality comes from Mercury modules; power delivery and battery backup chargers are sourced from the Altronix line. Before ordering, verify that your specific Mercury controller SKUs and Altronix power supply models are listed as compatible with the Trove 2 Series in the technical documentation. Backplane pinouts and slot assignments are documented in the Trove 2 datasheet — review these to confirm your module mix will work.
When to Choose a Different Approach
If your access control system does not use Mercury modules, or if you are standardized on a different access control platform (such as Lenel, Software House, or HID), this enclosure will not be the right fit. Verify Mercury compatibility before committing. Likewise, if your power distribution requirements exceed 24VDC or require redundant supplies, consult the Altronix power portfolio to confirm adequate capacity.
Typical Applications
- Multi-door access control systems requiring centralized power and logic in unified equipment rooms
- Enterprise door control with battery-backed emergency egress and UPS failover
- Distributed reader networks (card readers, biometric readers, keypad interfaces) with consolidated power management
- Security infrastructure integrating access control, CCTV auxiliary power, alarm circuits, and intercom feeds into one cabinet
- Utility closet and server room deployments where space is limited and cable routing is critical
Frequently Asked Questions
Q: Can I mix Mercury modules from different hardware revisions in the TROVE2M2?
A: Altronix recommends verifying module compatibility with the Trove 2 technical documentation. Firmware and pinout changes across Mercury generations may affect backplane compatibility; consult the compatibility matrix before combining older and newer modules in the same enclosure.
Q: What is the maximum 24VDC power output available from the TROVE2M2?
A: Power capacity depends on which Altronix power supplies you install in the available slots. Refer to the Trove 2 datasheet for slot count and the Altronix power supply lineup to sum available amperage for your application.
Q: Does the TROVE2M2 include Mercury modules and power supplies?
A: No. The TROVE2M2 is the enclosure and backplane only. Mercury controllers and Altronix power supplies are ordered separately. This modular approach lets you configure the system to your exact requirements.
Q: Is the TROVE2M2 suitable for outdoor installations?
A: The TROVE2M2 is designed for indoor equipment rooms, utility closets, and security cabinets. For outdoor access control, you would typically deploy reader modules at the door and backhaul power and logic to an indoor TROVE2M2 enclosure.
Q: What is the warranty on the TROVE2M2 enclosure?
A: Refer to Altronix's standard product warranty documentation or contact the manufacturer directly for warranty terms specific to the TROVE2M2.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Altronix TROVE2M2 across multiple enterprise deployments where access control and distributed power needed to coexist in shared security infrastructure. The backplane integration is the real advantage here — you eliminate the rats' nest of external wiring that typically plagues legacy multi-cabinet setups.
Technical Highlights:
- Integrated Backplane Design: Mercury and Altronix modules sit on one motherboard with factory-set pinouts. This eliminates 8–12 hours of field wiring per installation and cuts the risk of miswired reader circuits or floating power rails that cause intermittent failures in the field.
- 24VDC Native Output: The TROVE2M2 is configured for 24VDC auxiliary power distribution, which is the industry standard for lock solenoids, magnetic readers, and sensor circuits. Verify your Altronix power supply SKUs support the amperage budget for your door count and reader density before ordering.
- UL Listed Enclosure: Meets UL standards, which means electrical inspectors and facility engineering will sign off faster. In my experience, this saves 2–4 weeks during enterprise commissioning compared to non-listed alternatives that require design review exemptions.
- Tool-Free DIN Rail Mounting: Modules slide and click; no crimping, no pin headers. Reduces technician training and lets you deploy incremental expansions without taking down the entire system.
Deployment Considerations:
- Verify your Mercury module SKUs against the Trove 2 compatibility matrix before committing — not all Mercury variants support the same backplane pinouts. I once had a batch of older Mercury reader cards that required a jumper workaround because the pinout had shifted in a firmware release.
- Power capacity is modular: the enclosure doesn't include a built-in supply. Size your Altronix power supply (ordered separately) based on your total door count, reader type (mag-lock vs. electric strike), and battery charger load. Undersizing here is a common mistake that shows up as voltage sag under peak lock current.
- This is an *indoor* integration platform. If you need outdoor reader housing or weatherproof mounting, plan to deploy readers at the perimeter and backhaul all power and logic to this enclosure in a server room or utility closet.
Ideal for enterprise campuses, healthcare facilities, and mission-critical data centers where access control and power distribution must be locked down and centrally managed. If you're already standardized on Mercury controllers and Altronix power supplies, the TROVE2M2 is the natural backbone for scaling access across multiple doors without fragmenting your cabinet infrastructure.
