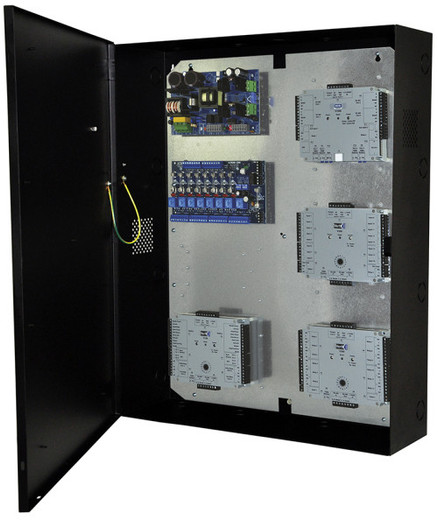

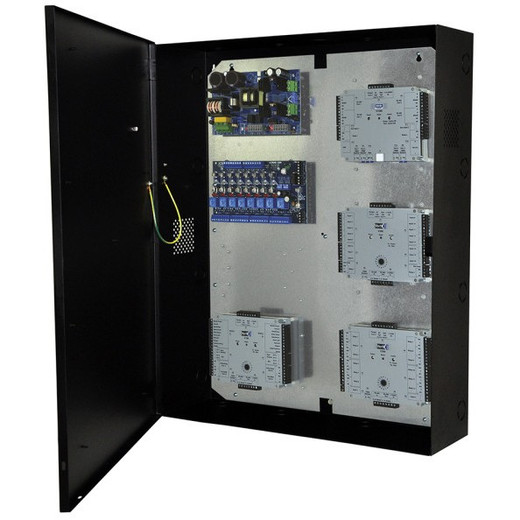

Altronix TROVE2V2 Access Control Power Integration Enclosure
Overview
The Altronix TROVE2V2 is a purpose-built enclosure designed to consolidate access control infrastructure, power distribution, and modular component mounting into a single, compact platform. Built around the Mercury backplane architecture, the TROVE2V2 integrates directly with HID-Vertx access control systems—eliminating the need to source and manage separate enclosures, power supplies, and component mounting solutions across multiple installations. For security integrators standardizing on Altronix and HID-Vertx, this enclosure reduces design complexity and cuts installation labor by centralizing both power management and access control electronics in one unit.
Key Features
- Integrated Mercury Backplane: Modular internal architecture accepts access control readers, controllers, and power management modules directly—no external brackets or adapters needed. This eliminates field fabrication and reduces wiring time during commissioning.
- HID-Vertx Native Integration: Purpose-built connectivity and mounting for Vertx access control components ensures compatibility without workarounds. Any Vertx reader or controller certified for Altronix platforms installs without modification.
- Centralized Power Distribution: Consolidates power management for multiple readers, controllers, and auxiliary devices in one location. A single power supply provisioning point simplifies circuit design and reduces the footprint of distributed power infrastructure across the building.
- Trove 2 Series Form Factor: Compact enclosure dimensions optimize space utilization for wall-mounted or cabinet installations—critical when real estate is constrained in retrofit deployments or small electrical rooms.
- Organized Internal Architecture: Structured wiring paths and labeled backplane slots reduce installation errors and accelerate future module swaps or additions. Technicians can identify power rails, reader connections, and controller slots at a glance.
- Multi-Door and Multi-Reader Capacity: Backplane supports stacking of access control modules, allowing single enclosure deployment for buildings with 4–8 reader pairs without cascading to secondary cabinets.
Integration and Compatibility
The TROVE2V2 is engineered for HID-Vertx ecosystems. The Mercury backplane directly accepts Vertx credential readers, door controllers, and I/O modules certified for Altronix enclosures. Power distribution is designed around typical Vertx current budgets—verify your specific reader and controller power draw during design phase to confirm capacity headroom. If you are building a multi-protocol access control system that includes non-Vertx components (e.g., third-party biometric readers or legacy card readers), confirm backplane compatibility with the manufacturer before ordering, as the TROVE2V2 is optimized for Vertx-first architectures.
Deployment Recommendations
During installation planning, map out all access control devices—readers, controllers, power supplies, and auxiliary outputs—and verify they fit within the backplane module count and power budget. The compact form factor suits wall mounting in secure vestibules, electrical rooms, or cabinet integration; ensure adequate ventilation around the enclosure, particularly if multiple controllers or readers with continuous solenoid actuation are deployed. Plan internal cable routing during the design phase to avoid congestion and future maintenance headaches. For distributed multi-building installations, the Trove 2 Series modularity allows you to deploy identical TROVE2V2 units at each location, simplifying spare parts inventory and technician training.
Frequently Asked Questions
Q: Does the TROVE2V2 support access control systems other than HID-Vertx?
A: The TROVE2V2 is optimized for HID-Vertx integration via the Mercury backplane. Third-party access control modules may not mount directly to the backplane without adapters. Confirm compatibility with the access control manufacturer and Altronix before purchasing if you plan mixed-brand deployment.
Q: Can I wall-mount the TROVE2V2, or does it require cabinet mounting?
A: The Trove 2 Series form factor supports both wall-mounted and cabinet configurations. Verify available mounting space and structural load capacity of your wall or cabinet before installation.
Q: What power input specifications does the TROVE2V2 support?
A: Refer to the datasheet or contact the manufacturer for voltage, amperage, and connector specifications. Power capacity varies based on the number and type of access control modules installed.
Q: Is the TROVE2V2 suitable for outdoor or harsh-environment installations?
A: The TROVE2V2 is an indoor enclosure. For outdoor or high-humidity environments, consult Altronix for outdoor-rated enclosure alternatives in the Trove series.
Q: How many readers or controllers can the TROVE2V2 accommodate?
A: Module capacity depends on the specific backplane slot count and power budget. Review the datasheet to confirm maximum module count for your configuration.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix TROVE2V2 is a foundational component for integrators standardizing on HID-Vertx access control architectures. The integrated Mercury backplane eliminates the friction of sourcing separate mounting solutions, power distribution panels, and adapters—you get a single, purpose-built platform that accepts Vertx components without modification. During multi-site rollouts, this consistency accelerates commissioning and reduces design variance across locations.
Technical Highlights:
- Mercury Backplane Integration: Direct module mounting for HID-Vertx readers and controllers eliminates external brackets and adapter hardware. Reduces assembly time and minimizes field wiring errors during commissioning.
- Consolidated Power Management: Single enclosure coordinates power distribution for multiple readers, controllers, and I/O devices. Simplifies circuit design and reduces the number of separate power supply locations scattered across a building.
- Trove 2 Series Compact Form Factor: Space-efficient design accommodates 4–8 reader deployments without escalating to larger, more expensive cabinet installations. Wall mounting in secure vestibules or electrical closets becomes viable where full-size cabinets won't fit.
Deployment Considerations:
- Verify backplane slot availability and power capacity against your complete reader, controller, and I/O module list before ordering. Oversubscription of power or space will require a second enclosure and complicates the installation.
- Plan internal cable routing and label all backplane connections during design phase. The compact form factor can become congested if wiring is ad-hoc, making future module replacements difficult.
- Confirm HID-Vertx component compatibility with Altronix and test module insertion in a lab environment before rolling out across multiple buildings. Some third-party modules may require adapters or modifications not anticipated in the initial design.
For Altronix and HID-Vertx standardized deployments spanning multiple buildings or floors, the TROVE2V2 serves as the anchor point for consistent power and component architecture—reducing SKU sprawl, accelerating technician training, and simplifying spare parts logistics across your infrastructure.
