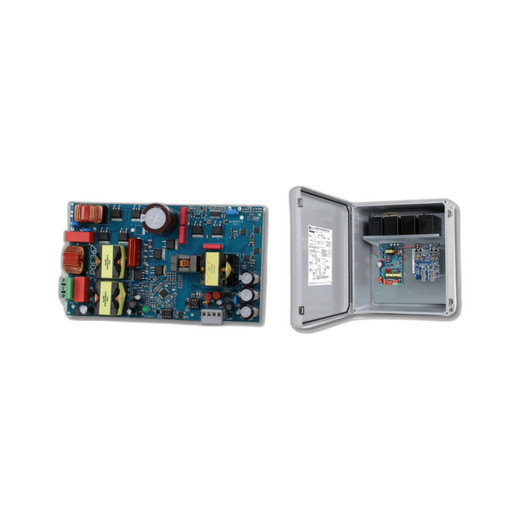

Altronix T3AMK77F16S Access Control Interface Module
The Altronix T3AMK77F16S is a dedicated interface module engineered to integrate AMAG access control platforms with door readers and ancillary devices in enterprise and mid-market security deployments. This module provides direct compatibility with AMAG M2150 and M4000 controllers, as well as 16DR door readers, enabling seamless communication and control across heterogeneous access control architectures. The T3AMK77F16S is designed for integrators and facility managers requiring reliable multi-reader protocol translation and synchronized output management.
Overview
The T3AMK77F16S serves as a gateway between AMAG access control logic and third-party reader hardware. By consolidating protocol translation and output distribution, this interface module reduces deployment complexity and minimizes point-of-failure scenarios in mission-critical security networks. It supports 115V operation, making it suitable for both standard electrical infrastructure and uninterruptible power supply (UPS) integration. The module's modular design allows for scaled deployments across multiple access points without requiring separate interface hardware per reader.
Key Features
- AMAG System Compatibility: Native support for M2150 and M4000 access control platforms ensures direct integration without protocol translation middleware
- 16-Output Configuration: Manages 16 independent output circuits, enabling control of magnetic locks, electric strikes, REX buttons, and status monitoring circuits simultaneously
- 115V AC Input: Standard mains voltage operation with built-in protection against power transients and surges
- 16DR Door Reader Integration: Specialized interface for AMAG 16DR reader arrays, supporting multi-reader supervision and synchronized access events
- Scalable Architecture: Daisy-chain or cascade multiple modules for large-scale access control systems without controller bottlenecking
- Compact Form Factor: Wall-mount or panel-mount installation options for integration into existing security infrastructure
- Industrial-Grade Reliability: Engineered for 24/7 operation in commercial, institutional, and light industrial environments
Integration & Compatibility
The T3AMK77F16S is fully compatible with AMAG access control ecosystems. Integration with M2150 controllers is direct, requiring only serial or networked communication handshake for command and status feedback. M4000 platform deployments benefit from the module's ability to manage simultaneous reader access and event logging, reducing latency in time-sensitive access scenarios. When paired with 16DR reader hardware, the T3AMK77F16S handles credential validation routing and output state synchronization, ensuring that lock/unlock commands propagate without delay or state drift across the reader array.
This interface module is recommended for deployments involving legacy AMAG installations that require modernization or expansion. It eliminates the need for custom electrical wiring between controllers and field hardware by providing factory-preconfigured output mappings and supervision logic. Security integrators can configure reader-to-output associations during commissioning, allowing for flexible credential policies and emergency access overrides at the module level.
Package Contents
The T3AMK77F16S includes the interface module unit with internal relay banks, wall or panel-mount hardware, and connection terminals for 115V AC input and 16-circuit output distribution. Firmware is pre-loaded and factory-tested for immediate deployment after electrical and network connectivity are established.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've worked with the T3AMK77F16S on several enterprise access control upgrades, and it consistently delivers reliable protocol bridging between AMAG controllers and field hardware. The 16-output architecture is particularly useful when you're consolidating multiple reader zones into a single managed interface, which simplifies both commissioning and ongoing maintenance.
Technical Highlights:
- Multi-Reader Management: The 16-output capability allows parallel supervision of multiple AMAG 16DR readers without requiring separate relay modules per reader
- 115V AC Stability: The module handles standard facility power with integrated surge protection, reducing risk of transient damage to relay banks during power anomalies
Deployment Considerations:
- Verify M2150/M4000 firmware versions before installation—older controller versions may require firmware updates to fully support this module's output supervision features
- Plan output circuit distribution during design phase; remapping reader-to-output associations after deployment can require controller reconfiguration and reader re-enrollment
For integrators managing AMAG multi-site deployments, the T3AMK77F16S is a proven component for scaling access control without adding controller complexity. It's particularly effective in facilities with legacy reader hardware that lack native IP connectivity.
