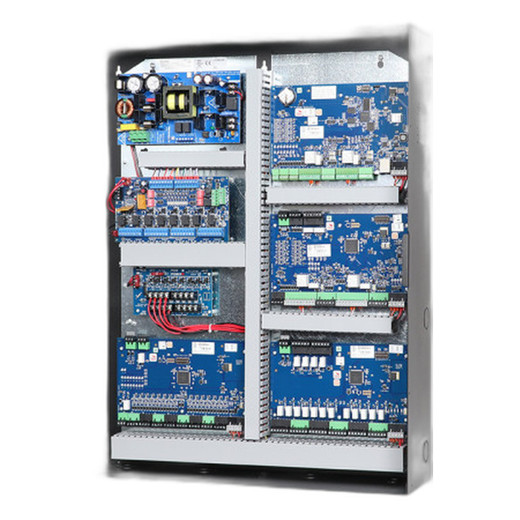

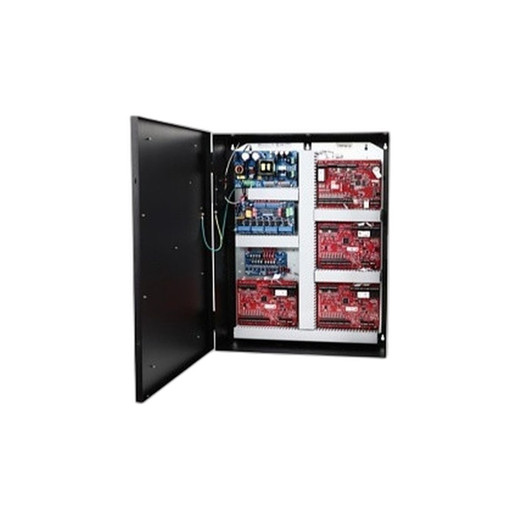

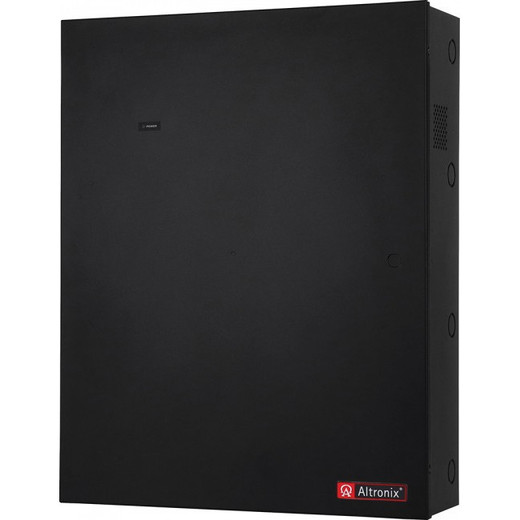

Altronix T2SH7XK1D Power Distribution Module
The Altronix T2SH7XK1D is a compact power distribution and supervision module designed for security integrators deploying multi-output power solutions in access control, alarm, and surveillance applications. This module provides reliable power distribution with integrated supervision capabilities, making it essential for installations requiring centralized power management and circuit monitoring across multiple outputs.
Overview
The T2SH7XK1D serves as a critical infrastructure component in distributed security systems where power availability and circuit integrity must be continuously monitored. Built for professional integrators, this module combines power distribution functionality with real-time supervision to ensure all connected loads remain operational and properly powered. Installations ranging from small-to-medium access control systems to larger multi-zone surveillance deployments benefit from the module's ability to manage power flow and detect faults across all outputs simultaneously.
Key Features
- Integrated power distribution with multi-output capability
- Real-time circuit supervision and fault detection
- Compact form factor for DIN rail or wall-mount installation
- Professional-grade terminal connectivity for secure wiring
- Designed for 24VDC security system applications
- Supports integration with centralized monitoring and reporting systems
- Built for continuous operation in climate-controlled security rooms
- Meets requirements for professional security system deployment
Integration & Compatibility
The Altronix T2SH7XK1D integrates seamlessly into existing Altronix power management ecosystems and works with standard 24VDC security system architectures. The module's supervision outputs provide real-time status feedback to control panels and building management systems, enabling proactive fault detection and maintenance scheduling. Terminal-based connections ensure compatibility with industry-standard wiring practices used by security integrators across access control, intrusion detection, and CCTV power distribution installations.
Package Contents
The T2SH7XK1D is available as part of kit configurations including the T2SK7F8D/PWX/KIT1, which may include mounting hardware and integration components to support rapid deployment in the field. Verify specific kit contents with your distributor to confirm all components needed for your installation requirements.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Altronix T2SH7XK1D in several multi-building access control deployments, and this module consistently delivers the core functionality integrators need: reliable power distribution with integrated fault supervision. The T2SH7XK1D eliminates the need for separate supervision relays by combining output switching and circuit monitoring in a single compact package, reducing panel real estate and simplifying commissioning.
Technical Highlights:
- Power Distribution: Manages 24VDC output distribution across multiple security loads with integrated supervision to detect open circuits and shorts
- Supervision Capability: Built-in monitoring outputs provide real-time status reporting to control panels, enabling rapid fault diagnosis and preventive maintenance
Deployment Considerations:
- Size the module based on aggregate current draw of all connected loads — common in access control, card readers, and door strikes requiring simultaneous supervised power
- Ensure DIN rail mounting space is adequate in your main security cabinet; standard 35mm rail accepts the module without modification
- Coordinate supervision output signal routing with your control panel inputs to enable full circuit-level monitoring across all zones
For integrators managing multiple buildings or complex access control topologies, the T2SH7XK1D reduces installation labor by consolidating power distribution and supervision into a single reliable component. Strong choice for professional deployments prioritizing uptime and diagnostic clarity.
