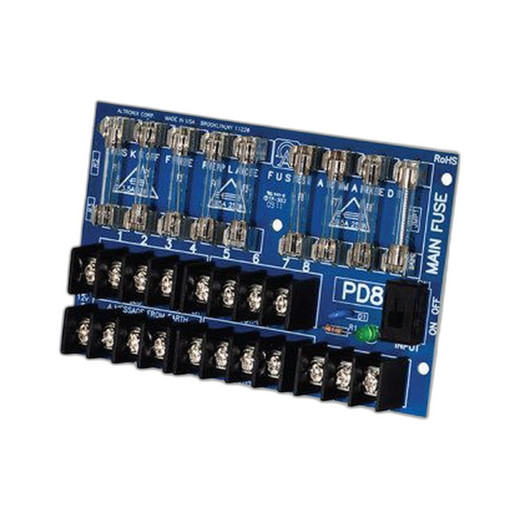

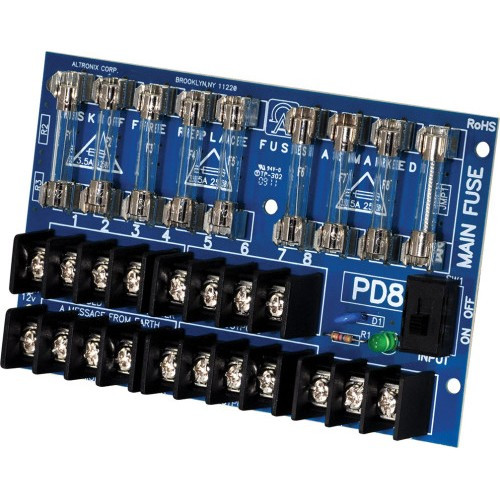

Altronix PD8 8-Output Power Distribution Module

Altronix PD8 8-Output Power Distribution Module

The Altronix PD8 is a board-level power distribution module engineered to consolidate single-source input into multiple isolated regulated outputs. Built for access control, video surveillance, and distributed security system installations, the PD8 delivers centralized power management in both commercial and industrial deployment environments where circuit isolation and multi-load power delivery are non-negotiable.

Overview

Power distribution is where many panel designs break down: a single failed output can compromise an entire branch of devices, or undersized wiring creates voltage sag that starves downstream equipment. The PD8 solves this by offering 4 isolated output channels — each can be individually protected and managed without affecting the others. This isolation matters in real installations. If an access reader shorts or draws unexpected current, it won't drag down voltage to your cameras or other critical loads. The 28VAC/VDC output rating aligns with the install base of legacy access control panels, readers, and auxiliary security equipment, making retrofit and brownfield upgrades straightforward without requiring voltage conversion stages elsewhere in the cabinet.

Board-form integration means the PD8 mounts directly into your control panel or power distribution enclosure — no additional DIN rail or shelf space required. This density matters when cabinet real estate is constrained. A single input feeds the module; the 4 output channels distribute power to independent loads, each regulated and isolated. This architecture eliminates daisy-chaining and the voltage drops that come with it.

Key Features & Deployment Benefits

• 4 Isolated Output Channels: Each output is electrically isolated from the others. If one load faults or draws surge current, the other three remain unaffected. Critical for systems where a single device failure cannot cascade to downstream equipment — especially in access control and CCTV auxiliary circuits.
• 28VAC/VDC Output Voltage: Direct compatibility with standard security industry equipment (access readers, locks, relay modules, some older camera power inputs). Eliminates the need for intermediate voltage regulators or converters in many deployments.
• Board-Level Form Factor: Mounts as a PCB inside your control panel or enclosure. Saves DIN rail space and reduces overall cabinet footprint — a real constraint when integrating into existing architectural or security panels.
• Single Input to Multi-Output Architecture: Consolidates power distribution from one source. Simplifies wiring layouts and reduces the number of separate power feeds entering the cabinet, lowering current density on entry terminals.
• Lifetime Limited Warranty: Coverage for the lifetime of the product. Reduces spare-parts inventory pressure and supports long-term system reliability in facilities where replacement cycles are measured in years or decades.

Integration & Compatibility

The PD8 is built for power distribution infrastructure in security and access control environments. It pairs with access control panels and video management ecosystems where multiple loads — card readers, door strikes, auxiliary cameras, relay modules — require independent power paths from a single supply. Board-level mounting means integration during cabinet build-out rather than as an afterthought retrofit. Verify your control panel design accommodates PCB-mounted modules and confirms available mounting space before ordering.

When to Choose a Different Model

If your deployment requires higher output voltage (48VDC for PoE-powered cameras, for example), or if you need more than 4 isolated channels, consult the broader Altronix power distribution lineup for variants that meet those load requirements. The PD8 is purpose-built for 28V legacy and mid-tier security circuits; it is not a general-purpose power supply for diverse voltage requirements.

Frequently Asked Questions

Q: What input voltage does the PD8 require?

A: The source evidence specifies 28VAC/VDC output capability but does not detail the input voltage range. Consult the product datasheet or contact the manufacturer for input voltage requirements.

Q: Can I daisy-chain multiple PD8 modules?

A: Each PD8 is a standalone power distribution unit designed to manage a single input source. While multiple units can be installed in the same cabinet, they operate independently. Configure each PD8 to handle its own load set rather than chaining outputs from one module as input to another.

Q: Is the PD8 suitable for outdoor installations?

A: The PD8 is a board-level module intended for mounting inside control panels and enclosures. It is not rated for direct outdoor exposure. Install it inside a weatherproof or temperature-controlled cabinet if deployed in outdoor environments.

Q: What does the Lifetime Limited Warranty cover?

A: The PD8 includes a Lifetime Limited Warranty. Scope and limitations (e.g., exclusions for misuse or environmental damage) are defined in Altronix warranty documentation; review the full warranty terms before deployment.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Altronix PD8 is a straightforward power distribution workhorse for cabinet-based security deployments. Its 4 isolated 28VAC/VDC outputs solve a real problem: preventing a single load fault from collapsing voltage across your entire auxiliary power branch. In access control integrations where card readers, locks, and relay modules all need separate power sources, the PD8's board-level form factor eliminates the cabinet clutter of multiple separate supplies and wiring harnesses.

Technical Highlights:

• 4 Isolated Channels: Each output is electrically independent, meaning a short on one reader power line won't starve your strike lock or auxiliary sensors. This isolation is non-negotiable in mission-critical access control where a single failure can lock you out of a facility section.
• 28VAC/VDC Compatibility: Directly compatible with the installed base of legacy access control equipment and readers. No down-converter needed, no extra PCB real estate for voltage regulation — the PD8 handles it internally.
• Board-Level Mounting: No DIN rail, no additional shelving. The PD8 mounts directly into your control panel PCB layout or bolts flat inside an enclosure wall. Space savings are real when building custom integration cabinets or retrofitting cramped panels.

Deployment Considerations:

• Input voltage requirements are not detailed in the available evidence — confirm input range with the datasheet before specifying. Legacy 24VAC panels may have different input profiles than modern 28VDC battery-backed supplies.
• The PD8 is indoor-cabinet equipment. If your control panel sits in an outdoor kiosk or vehicle mount, you must house the PD8 in a climate-controlled or temperature-rated enclosure to avoid condensation and thermal stress.

Use the PD8 in mid-to-large access control installations where multiple readers, strikes, and auxiliary modules share a single cabinet and power budget. Its isolation and 28V rail match the design assumptions of most integrator-built control systems. For single-load scenarios or PoE-dominated camera systems, a simpler single-output supply may be overkill, but the PD8 earns its cost in any multi-branch access system where reliability depends on load independence.
