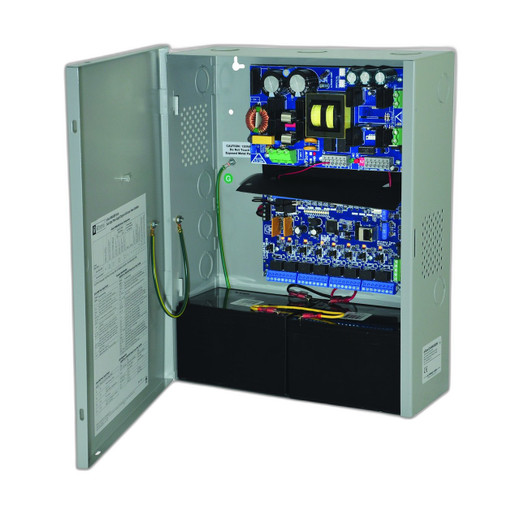

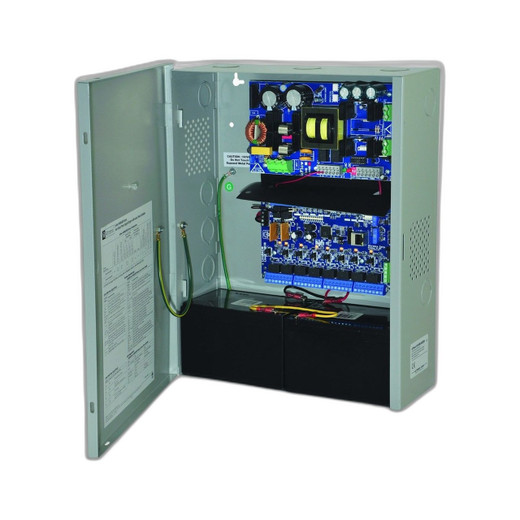

Altronix T2MK5F16QV Regulated Power Supply
Overview
The Altronix T2MK5F16QV is a regulated 12VDC power supply and distribution system designed for security and surveillance installations requiring multi-channel 12V output. This unit delivers 10A at 12VDC and provides 16 independent outputs, making it suitable for powering multiple cameras, access control devices, and auxiliary security equipment from a single source. The T2MK5F16QV integrates input voltage flexibility with robust output protection, enabling reliable operation across diverse installation environments.
Key Features
- 12VDC Regulated Output: Provides stable, regulated 12V power at 10A maximum current for consistent device operation
- 16 Independent Outputs: Multiple output channels enable simultaneous powering of cameras, locks, readers, and auxiliary loads from a single supply unit
- Dual Input Voltage Support: Accepts both 220V and 12V input configurations, allowing flexible installation in environments with varying power availability
- Compact Multi-Channel Distribution: Consolidates power distribution into a single enclosure, reducing installation complexity and panel real estate requirements
- Output Protection: Built-in protection mechanisms safeguard connected equipment against power anomalies and surge conditions
- Industrial-Grade Design: Engineered for permanent installation in security control rooms, server closets, and distributed equipment racks
Integration & Compatibility
The T2MK5F16QV integrates seamlessly into modular Altronix power distribution ecosystems. The 16-channel output configuration supports standard 12V security cameras, electromagnetic locks, access control power supplies, intercom systems, and auxiliary security devices. Its regulated output maintains voltage stability under varying load conditions, protecting sensitive electronics and ensuring compliant operation across equipment portfolios. The dual input voltage design accommodates both AC mains (220V) and DC backup configurations, enabling flexibility in system architecture and redundancy planning.
Typical Applications
Security integrators deploy the T2MK5F16QV in multi-camera surveillance installations, access control systems, emergency communication networks, and hybrid security deployments where centralized 12V power distribution reduces wiring complexity and improves system reliability. The 16 independent outputs are suited for medium-scale surveillance clusters, camera arrays in perimeter protection, and facilities requiring distributed low-voltage power at multiple endpoint locations.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Altronix T2MK5F16QV during panel design and deployment planning for multi-camera surveillance projects. This unit delivers straightforward 12VDC distribution with enough output channels to handle typical mid-scale camera systems without oversizing or unnecessary complexity.
Technical Highlights:
- Output Capacity: 10A at 12VDC across 16 independent channels provides adequate headroom for mixed loads—cameras, power supplies, and auxiliary devices—without channel overload concerns in properly designed systems
- Dual Input Support: The 220V/12V input flexibility allows deployment in environments where AC mains may not be consistently available or where DC redundancy is preferred
Deployment Considerations:
- Verify total system load does not exceed the 10A aggregate current rating; individual channel loads should be calculated based on connected device specifications
- Mount the unit in a controlled environment (equipment room, panel enclosure) where ambient temperature and ventilation support continuous operation
The T2MK5F16QV is a solid, no-nonsense choice for integrators building modular surveillance and access control systems. Its 16-channel distribution keeps installation overhead low while the regulated output ensures equipment protection. Plan input voltage configuration upfront to align with site power availability and backup requirements.
