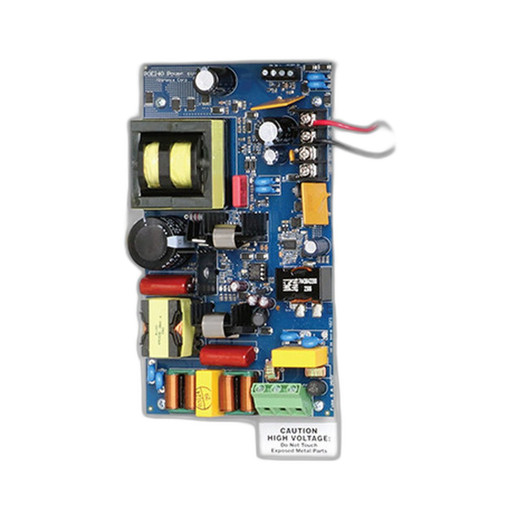

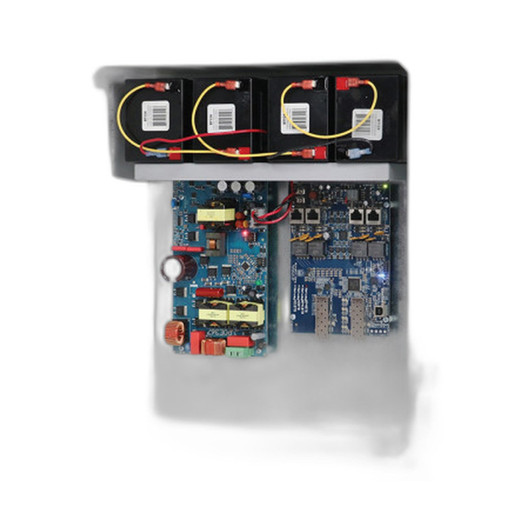

Altronix NETWAYSP4BTWPX7 4-Port PoE++ Power Supply
Overview
The Altronix NETWAYSP4BTWPX7 is a purpose-built power distribution platform designed for security integrators and IT managers deploying networked surveillance, access control, and IoT infrastructure. This 4-port PoE++ injector accepts 230VAC input and delivers up to 240W of aggregate power across four Ethernet outputs, enabling simultaneous operation of high-draw devices including PTZ cameras, advanced access readers, and multi-sensor systems. Built for wired network environments, the NETWAYSP4BTWPX7 centralizes power delivery and eliminates the need for individual wall-mount supplies at each device location—reducing installation labor, cabinet clutter, and voltage drop across extended runs.
Key Features
- 4 Network Ports: Four independent PoE++ injector outputs support simultaneous power delivery to multiple devices with no port-sharing or bandwidth restrictions
- PoE++ Standard (High-Power): Delivers up to 90W per port (IEEE 802.3bt compliant) for demanding endpoints including motorized lenses, heater/blower combos, and dual-radio wireless access points
- 240W Maximum Power Budget: Aggregate output of 240W enables full utilization of all four ports under typical mixed-load scenarios
- 230VAC Input Voltage: International standard input supply (50/60 Hz) compatible with EU, APAC, and other 230V distribution infrastructure
- CE Certification: Complies with European safety and electromagnetic compatibility directives for commercial and industrial deployments
- Wired Connectivity: Direct RJ45 network integration—no wireless dependency, latency, or interference risk
Integration & Compatibility
The NETWAYSP4BTWPX7 functions as a standard PoE++ injector and integrates seamlessly into any Ethernet infrastructure. Each port can supply power and data over standard Cat5e, Cat6, or higher-grade cabling to any PoE-compatible endpoint. Typical deployments include surveillance camera arrays, IP intercom systems, wireless access point stacks, and distributed access control readers. The unit's modular 4-port design enables scalable deployments where multiple units can be cascaded or distributed across facility zones. Field integrators commonly position NETWAYSP4BTWPX7 units in equipment closets, server racks, or network distribution cabinets to serve floor-level or zone-level device concentrations.
Electrical Specifications
Input voltage is 230VAC (50/60 Hz nominal); output is delivered via standard PoE++ over twisted-pair Ethernet at up to 90W per port. Maximum aggregate power delivery is 240W, providing margin for real-world load distribution. The unit's power management ensures stable voltage delivery and protects against over-current conditions on individual ports.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
In my experience deploying networked security infrastructure across multi-floor facilities, the Altronix NETWAYSP4BTWPX7 has proven invaluable for consolidating power distribution. Rather than installing four separate wall-mount supplies—each requiring individual outlet, UPS integration, and monitoring—a single NETWAYSP4BTWPX7 unit centrally managed in a rack eliminates redundant infrastructure and simplifies troubleshooting. The 240W budget and four discrete PoE++ ports give integrators genuine flexibility when mixing device types and power requirements.
Technical Highlights:
- High-Power Output per Port: 90W PoE++ capacity per port supports motorized cameras, heated enclosures, and access control nodes without auxiliary power drops
- 230VAC Input Acceptance: Standard mains voltage means no special conditioning or transformer investment—direct connection to building electrical infrastructure
Deployment Considerations:
- Verify endpoint PoE power class (Class 4, 5, or 8+) matches expected port allocation to avoid over-subscription of the 240W aggregate budget
- Plan cable runs from the NETWAYSP4BTWPX7 to field devices using appropriate gauge and shielding; PoE++ can deliver high current, so voltage drop calculations are important for runs exceeding 100 meters
For integrators seeking reliable, compact high-power PoE distribution without added complexity, the NETWAYSP4BTWPX7 delivers straightforward wired-network performance and CE-certified reliability. Recommended for regional distribution points, multi-zone surveillance arrays, and access control clusters where consolidation and serviceability are priorities.
