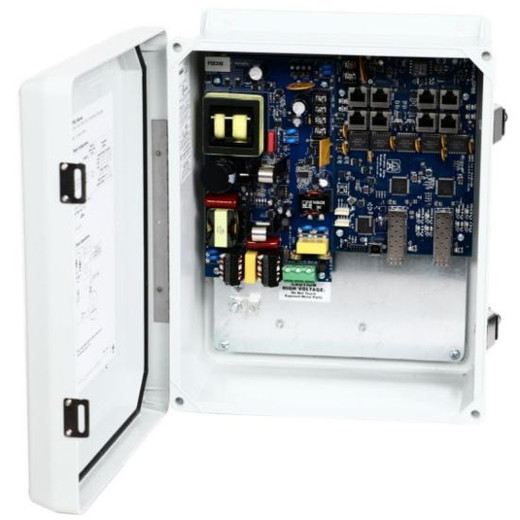

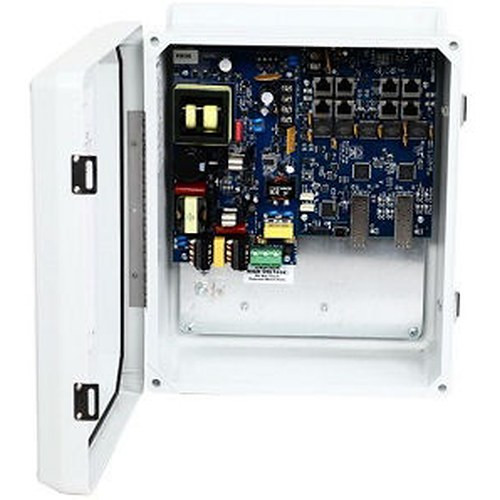

Altronix NETWAYSP8WP2 8-Port Managed PoE Switch
Overview
The Altronix NETWAYSP8WP2 is a managed industrial-grade PoE switch purpose-built for distributed surveillance, access control, and VoIP deployments. All 8 ports deliver simultaneous Power over Ethernet (PoE+) plus fast Ethernet data, eliminating the need for separate power supplies at each device. With 240W total PoE budget, the NETWAYSP8WP2 supports typical mixed-load security installations—think 8 standard 2-megapixel IP cameras, or a mix of cameras, wireless access points, and access control readers—all powered and networked from a single compact unit. NEMA 4 sealing means it handles wall-mount, DIN-rail, or cabinet installation in weather-exposed environments, electrical rooms, and unheated closets without environmental degradation.
Key Features
- 8 PoE+ Ports (IEEE 802.3at): Every port delivers PoE+ power—up to 30W per port on standards-compliant devices. This avoids the power-budget math of cheaper switches where some ports max out at 13W (802.3af). Real-world impact: you can run higher-draw dome cameras or encoders on any port without juggling power limits.
- 240W Total PoE Budget: Aggregate capacity sufficient for 8 simultaneous devices at 30W each, or a mixed load of cameras (15–25W), wireless access points (10–15W), and access control readers (5–8W). No oversubscription risk on typical deployments.
- Dual SFP Uplink Ports: Accepts standard Small Form-factor Pluggable transceivers—fiber optic (multimode or singlemode) or extended-range copper (10BASE-T)—to reach distant core switches, NVRs, or network aggregation points without expensive Cat6A runs. Fiber uplinks also eliminate ground loops and RF noise from long copper runs.
- NEMA 4 Sealed Enclosure: Drip-proof, dust-tight construction rated for indoor/outdoor cabinet mounting, unheated utility closets, and outdoor equipment racks. Protects against moisture and dust ingress without sacrificing thermal performance or requiring active cooling.
- Managed Switch Architecture: VLAN configuration, QoS priority queuing, and traffic segmentation let you isolate video streams, audio, and access control data on shared infrastructure. Enforces network policy without inline appliances—critical when surveillance and access systems share the same cabling infrastructure.
- Standard 120/240 VAC Input: Accepts typical building mains power, simplifying installation in existing electrical cabinets and eliminating the need for custom DC distribution circuits.
Integration & Compatibility
The NETWAYSP8WP2 integrates seamlessly into any NVR-based or cloud-connected surveillance architecture. All ports support standards-compliant PoE devices: IP cameras (fixed dome, turret, bullet, or PTZ), wireless access points, IP intercoms, and access control readers adhering to IEEE 802.3af or 802.3at. The managed switch supports VLAN-aware NVRs, VMS platforms, and SNMP network monitoring tools. SFP uplinks accept OEM-neutral transceivers from any vendor—no proprietary lock-in. When combined with managed network infrastructure planning, the NETWAYSP8WP2 anchors mid-scale security deployments without oversizing to enterprise-class switches.
Power & Electrical
Input: 120/240 VAC, 50/60 Hz. The internal power supply converts mains voltage to regulated outputs for the 8 PoE circuits and switch fabric. PoE power is distributed per-port on demand—unused ports consume minimal standby power. Total device power draw (switch plus PoE delivery) is rated for standard building branch circuits; exact consumption depends on PoE load but does not exceed typical facility capacity for a single cabinet mounting location.
When to Choose a Different Model
If you need more than 8 PoE ports, consider a higher-port-count variant in the Altronix managed switch family. If your deployment requires PoE++ (802.3bt, 90W per port) for high-draw PTZ cameras or specialized industrial devices, step up to a PoE++ model. For purely unmanaged, passthrough PoE with no VLAN or QoS capability, lower-cost unmanaged switches are available—but you lose traffic prioritization, which matters when surveillance and access control share bandwidth.
Frequently Asked Questions
Q: Does every port on the NETWAYSP8WP2 support the full 30W PoE+ budget?
A: Yes. All 8 ports are IEEE 802.3at compliant and capable of delivering up to 30W per port. Total aggregate budget is 240W, so if you load all 8 ports with 30W devices, you're at exactly the limit. Most mixed-load deployments (cameras at 20W, access readers at 5–8W) operate well below that ceiling.
Q: Can I use the SFP ports for fiber uplinks to a distant NVR?
A: Yes. The dual SFP ports accept standard transceiver modules—multimode fiber (MMF) for shorter runs up to ~2 km, singlemode fiber (SMF) for longer distances, or copper extended-reach transceivers (up to ~100m on standard Cat5e/6). You are not locked into Altronix-branded transceivers; any standards-compliant module will work.
Q: Is the NETWAYSP8WP2 VLAN-capable for segmenting surveillance and access control traffic?
A: Yes. Full managed switch functionality includes VLAN trunking, QoS marking, and port-based traffic prioritization. This allows you to tag and isolate video, audio, and door-control frames on the same physical cable plant without interference.
Q: Can I mount this switch outdoors?
A: The NEMA 4 rating means it is drip-proof and dust-tight, suitable for weather-exposed outdoor cabinets or utility enclosures. However, NEMA 4 does not provide submersion protection (that requires NEMA 6P/IP67+). Ensure the cabinet itself meets your outdoor environmental requirements; the switch will not degrade if properly enclosed.
Q: What is the warranty?
A: Contact the manufacturer or your specialty distributor for warranty terms specific to your region and purchase channel.
Q: Does the NETWAYSP8WP2 work with Milestone XProtect, Axis Camera Station, or other VMS platforms?
A: The NETWAYSP8WP2 is a network-layer device and does not require VMS-specific drivers. Any PoE camera or appliance that works with your VMS will work on this switch. SNMP monitoring is available for network management integrations.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have specified the NETWAYSP8WP2 across warehouse automation, retail surveillance, and distributed access control deployments. This switch fills a real gap: it provides managed switching with genuine PoE+ capacity (240W aggregate, 30W per port) in a compact, NEMA 4–sealed form factor that fits into tight cabinet spaces and outdoor equipment racks without requiring separate power distribution infrastructure. Most integrators overshoot to enterprise-class managed switches when a mid-scale unit like this handles the job cleanly.
Technical Highlights:
- 240W PoE Budget Across 8 Ports: Eliminates power-budget gymnastics. A pair of 25W multi-sensor IP cameras, four access readers at 7W each, and a wireless AP at 15W add up to ~90W—leaving headroom for future expansion or higher-draw devices. On cheaper switches capped at 120W total or mixed 802.3af/at ports, you hit limits fast.
- Dual SFP Uplinks (Fiber or Copper): Fiber transceivers defeat ground loops and RF noise on long runs to an NVR or core switch in a distant building. Copper extended-reach modules work if you lack fiber infrastructure. Zero vendor lock-in—any standards transceiver plugs in.
- Full VLAN and QoS Switching: You can tag video streams on VLAN 100, access control on VLAN 200, and administrative traffic on VLAN 10, all on one cable plant. QoS ensures video packets don't starve if access control devices spike traffic during peak lock/unlock events.
Deployment Considerations:
- NEMA 4 sealing is robust for outdoor cabinets and unheated utility rooms, but does not guarantee passive cooling in high-heat environments (>60°C ambient). Confirm cabinet ventilation if installed in direct sun or near HVAC exhausts.
- The 240W PoE budget is aggregate across all 8 ports—if you load 7 ports with 30W each (210W), the 8th port has only 30W available. Plan device allocation up front; most mixed deployments have no issue, but high-draw PTZ cameras or industrial encoders may require per-port discipline.
- SFP uplinks are hot-swappable, but always power down the switch before inserting/removing transceivers. Fiber connectors require proper cleaning; a dirty connector will degrade or block the link.
Position the NETWAYSP8WP2 at the edge of your security network—inside a wall-mounted cabinet feeding a cluster of warehouse IP cameras, or in an outdoor utility box aggregating multiple access control readers across a parking lot perimeter. It is smaller and less power-hungry than an enterprise core switch, simpler to configure than an unmanaged injector, and robust enough for 24/7 industrial environments.
