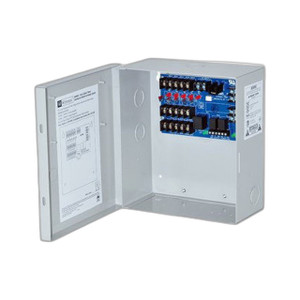

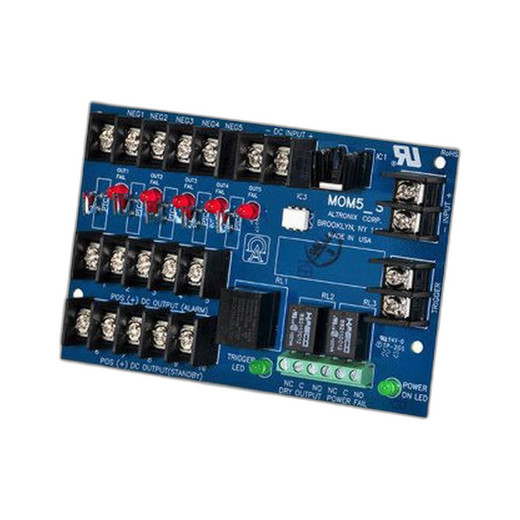

Altronix MOM5 5-Output 12VDC Distribution Module
The Altronix MOM5 is a compact, UL-listed power distribution enclosure that solves a common infrastructure problem: feeding multiple security devices from a single 12VDC power source without risk of cascading failure. The module provides five independent 12VDC output circuits, each protected and current-limited, so a single short or overcurrent event won't take down your entire branch circuit. This is especially valuable in access control, camera arrays, and sensor-heavy installations where downtime is costly.
Key Features
- Five independent 12VDC outputs: Instead of daisy-chaining devices or running multiple power cables, the MOM5 distributes one source into five separate circuits. Reduces wiring complexity and physical clutter in equipment racks or wall-mounted panels.
- 2A maximum current per output: Each channel is rated for up to 2A at 12VDC—sufficient for lock solenoids, door strikes, access readers, and sensor modules. This per-channel rating means you can pull full current on one output without affecting the others, unlike a simple splitter.
- PTC protection on each output: Positive Temperature Coefficient (PTC) resettable fuses prevent damage from short circuits or overload. If a downstream device faults, that output automatically limits current; the protection resets when the fault clears. No manual fuses to replace.
- UL listed for code compliance: Meets Underwriters Laboratories standards, which is often a requirement for commercial security installations, especially in access control and life-safety integrations. Simplifies permit and inspection sign-off.
- Compact multi-output form factor: The MOM5 is designed to fit into existing rack, wall, or enclosure spaces without requiring significant additional real estate. Integrates cleanly into cabinet-based power distribution architectures.
- Distributed protection prevents single-point failure: If one output is shorted or overloaded, the other four outputs remain operational. Critical for systems where you cannot afford to lose all power simultaneously—a common constraint in access control and surveillance backup scenarios.
Typical Deployment Scenarios
The MOM5 fits naturally into several security system architectures:
- Access control systems: Feed multiple door locks, strike plates, and reader modules from one central 12VDC supply, with each door on its own protected output.
- Outdoor camera or sensor arrays: Distribute 12VDC PoE injector power or direct camera feeds across multiple branch circuits in a warehouse, perimeter, or parking lot deployment.
- Alarm and monitoring installations: Protect signaling devices, strobes, or sensor modules on separate circuits so that a single device malfunction doesn't silence the entire system.
- Staging mixed-voltage systems: When a central UPS or power supply must support several isolated 12VDC branches, the MOM5 provides the electrical separation and overcurrent protection required by code.
Why Current and Protection Matter Here
The 2A-per-output specification is not arbitrary. A typical electronic lock draws 0.8–1.5A. A PoE injector for a single camera branch may draw 1–2A. Without per-output protection, adding a third device to a single wire risks overheating the cable or blowing a main fuse—leaving all devices without power. The MOM5 isolates these loads, so each output can operate at its rated 2A independently. If you regularly exceed 2A on a single output, you'll need a higher-capacity supply or a multi-stage distribution strategy, but for standard access control, single-camera circuits, or small sensor networks, the MOM5 delivers the headroom and isolation you need.
Integration & Compatibility
The MOM5 is a passive distribution module with no intelligence or digital interface. It works with any 12VDC power source (UPS, wall supply, or central power plant) and any 12VDC load within the 2A per-output budget. No software, no network connectivity, no configuration—install the 12VDC input, wire your devices to the five outputs, and verify power with a multimeter. This simplicity is a strength in retrofit scenarios where you cannot add complexity to the system architecture.
Warranty
The MOM5 carries a Lifetime Limited Warranty, covering defects in materials and workmanship for the operational life of the product. This reflects Altronix's confidence in the design and provides peace of mind in installations where component replacement would be costly or disruptive.
Frequently Asked Questions
Q: Can the MOM5 output more than 2A if I wire multiple outputs in parallel?
A: No. Paralleling outputs is not recommended and will not increase the per-output current limit. Each output is independently fused at 2A. Exceeding that rating on a single load will trigger PTC protection. If you need more than 2A for a single device, use a dedicated 12VDC supply or a higher-capacity distribution module.
Q: Is the MOM5 suitable for outdoor or harsh-environment installations?
A: The MOM5 is an indoor distribution enclosure. If you need to deploy it in a wet or dusty location, house it in a separate weatherproof cabinet or install it in a sheltered area. The module itself is not IP-rated for direct environmental exposure.
Q: What is the input voltage tolerance for the MOM5?
A: The module is designed for 12VDC input. Verify your power supply output voltage with a multimeter before connecting. Sustained over-voltage or under-voltage may affect device performance or trigger protection.
Q: Do I need a separate fuse or circuit breaker at the input?
A: Best practice is to install a main fuse or circuit breaker on the positive lead between your 12VDC supply and the MOM5 input. This protects the input wiring and provides a manual disconnect point. Check your local electrical code for specific requirements in your jurisdiction.
Q: How do I know if a PTC output has tripped?
A: A tripped PTC will cut power to that output; you can verify loss of voltage with a multimeter on the affected output terminals. Once the fault is cleared, the PTC will reset automatically and power will return. If an output remains tripped, investigate the downstream circuit for the short or overload.
Q: Can the MOM5 be wall-mounted or does it require rack installation?
A: The MOM5 is designed as a compact enclosure module suitable for wall mounting, DIN-rail mounting, or cabinet integration. Refer to the product datasheet for exact mounting dimensions and hardware compatibility.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix MOM5 is a straightforward solution to a real infrastructure headache: managing 12VDC distribution across access control, camera, and sensor circuits without sacrificing isolation or safety. I see integrators defaulting to this type of module because it eliminates the temptation to overload a single supply wire, which is how you end up with voltage sag, nuisance lock failures, and customer service calls at 2 a.m. The per-output PTC protection on the MOM5 is the key differentiator—each of the five outputs is independently current-limited at 2A, so a shorted door strike on one circuit doesn't kill power to the other four.
Technical Highlights:
- 5 independent 12VDC outputs, 2A max per output: Typical electronic door locks draw 0.8–1.5A; a single-camera 12VDC PoE injector draws 1–2A. Two outputs are enough to guarantee you won't overload a single circuit if you're feeding a lock and a reader from the same supply. The isolation prevents cascade failures.
- PTC resettable protection per output: Unlike traditional fuses, PTC devices self-reset once the fault clears. No service call to swap a blown fuse; the system resets automatically. This matters in 24/7 access control where downtime is measured in hours lost to emergency calls.
- UL listed for code compliance: Pulls the module out of the "experimental" category and into the "code-compliant" bucket. Matters for inspections, insurance, and liability in commercial security.
Deployment Considerations:
- The 2A per-output limit is firm—if you need more headroom, you must either split the load across two outputs or provision a dedicated supply for that device. Plan your circuit load-outs at design time; retrofitting is messy.
- The MOM5 provides no filtering, voltage regulation, or noise suppression. If your 12VDC source is dirty or under-specified, problems upstream will propagate downstream. Pair it with a clean UPS or a regulated power supply, not a salvaged wall brick.
- Input and output terminals are likely screw-down connectors—not pluggable. This is fine for permanent installations but means reconfiguration requires tools. Verify wire gauge and terminal compatibility before you commit to a location.
The MOM5 is the right choice for access control systems where you're distributing power to 3–5 door control devices, small camera or sensor arrays in the 2–4 circuit range, or any scenario where you need to prevent one failed load from taking down the rest of the system. It's not a magic box—it's insurance against poor circuit design and a guarantee that your wiring topology is auditable. Use it.
