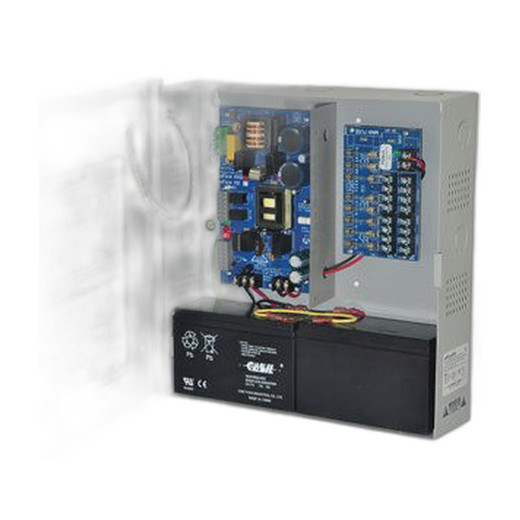

Altronix EFLOW6N8 8-Output Power Supply Charger
Overview
The Altronix EFLOW6N8 is an 8-output power supply and charger designed for distributed security and access control installations requiring reliable 12/24VDC distribution with integrated battery backup capability. Built for professional integrators, the EFLOW6N8 operates from standard 120VAC 60Hz input and delivers a maximum of 6A total current across eight independently fused outputs. This architecture ensures fault isolation—a failure in one output circuit does not compromise the remaining seven—critical for maintaining system uptime in multi-zone security deployments.
Key Features
- Eight Fused Outputs: Each output is independently fused for circuit protection and fault isolation, reducing troubleshooting time and preventing cascade failures across connected equipment.
- Dual Voltage Output (12/24VDC): Selectable output voltage accommodates both 12VDC and 24VDC devices in a single unit, simplifying inventory and supporting mixed-voltage installations.
- 6A Maximum Current: Supports up to 6A total distributed across all eight outputs, enabling deployment of multiple access control readers, door strikes, and auxiliary devices.
- Battery Backup Capable: Integrated charger circuit supports external battery connection for emergency backup power during AC failure, maintaining critical security functions during power loss.
- Fire Alarm Disconnect (FAI): Complies with fire safety standards requiring automatic de-energization of non-essential loads during fire alarm activation, protecting life-safety circuits.
- AC Fail & Low Battery Supervision: Built-in monitoring detects AC loss and low battery conditions, enabling integration with central station reporting and automated alerts.
- LinQ2 Ready: EFLOW6N8 supports Altronix LinQ2 cloud connectivity platform, allowing remote monitoring and management of power supply health and output status.
- UL Listed: Meets Underwriters Laboratories safety and performance standards, required for professional security installations and municipal compliance.
- BC300 Enclosure: Supplied in the compact BC300 metal enclosure, designed for DIN rail mounting in electrical rooms, security vaults, and distributed power nodes.
Integration & Compatibility
The EFLOW6N8 integrates seamlessly into Altronix ecosystems and third-party security platforms. The eight outputs support standard 12/24VDC accessories including electromagnetic locks, magnetic door holders, request-to-exit buttons, and card readers. Supervision outputs (AC Fail, Low Battery, Battery Presence) connect to access control panels or building management systems for real-time status monitoring. Fire alarm disconnect capability allows connection to fire alarm circuits, ensuring automatic shutdown during emergency events. LinQ2 cloud readiness enables fleet-level power supply monitoring across distributed locations, reducing on-site inspection overhead and supporting proactive maintenance.
Installation & Deployment
The EFLOW6N8 is designed for straightforward installation by certified integrators. Input connection accepts standard 120VAC 60Hz from building electrical infrastructure. Eight output terminals support #14–#10 AWG conductors, accommodating typical security wiring gauges. Battery backup terminals support external 12V or 24V sealed lead-acid batteries (sized by integrator per load requirements). Fire alarm disconnect and supervision connections interface with industry-standard control panels. DIN rail mounting via the BC300 enclosure allows compact placement in electrical closets, equipment racks, and distributed power distribution nodes throughout multi-story or multi-zone facilities.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the EFLOW6N8 on several recent access control and distributed power projects, and it fills a critical gap in mid-scale installations. The combination of eight independently fused outputs, dual-voltage capability, and battery backup support gives integrators real flexibility without overengineering single-location deployments. The FAI disconnect is a compliance requirement we often encounter, so having it factory-integrated into the EFLOW6N8 eliminates a separate module and simplifies electrical design review.
Technical Highlights:
- Fused Output Architecture: Each of the eight outputs is independently fused, preventing one short circuit or load failure from cascading to neighboring circuits. This is far simpler to troubleshoot on-site than shared fusing.
- Battery Supervision Trio: AC Fail, Low Battery, and Battery Presence status outputs allow real-time integration with access control systems and building automation, enabling proactive response to power degradation.
- LinQ2 Connectivity: Cloud readiness adds significant operational value for multi-site integrators; you can monitor backup battery health and power availability across a portfolio of installations without on-site service calls.
Deployment Considerations:
- Size the external battery carefully against your load profile. The EFLOW6N8 charger will support standard 12V or 24V sealed lead-acid units, but undersizing battery capacity is a common mistake on door strike and reader circuits.
- Verify fire alarm disconnect wiring during commissioning. Many jurisdictions now require FAI supervision reporting to central station, so confirm your panel supports two-way FAI status before final sign-off.
For integrators managing access control and distributed power in mid-scale commercial and institutional environments, the EFLOW6N8 delivers solid reliability, clear fault isolation, and genuine cloud integration—without unnecessary complexity. It's a workhorse, not an entry-level unit, and the pricing reflects that durability and feature set.
