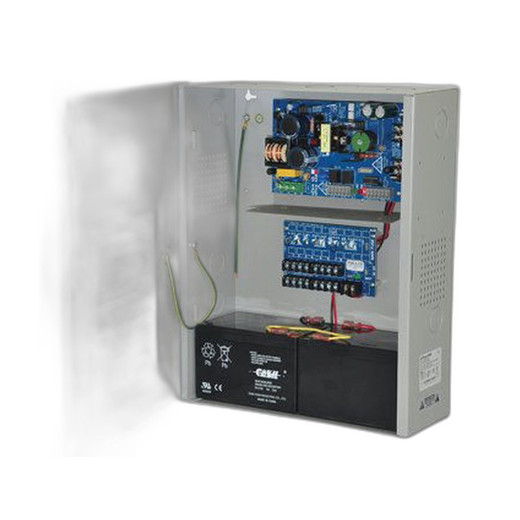

Altronix EFLOW4NX8D Power Supply/Charger with Fire Alarm Disconnect

The Altronix EFLOW4NX8D is a UL Listed power supply and charger designed for security and fire alarm system installations requiring integrated battery backup and emergency disconnect functionality. This unit accepts 120VAC 60Hz input and delivers selectable 12/24VDC output across eight PTC Class 2 protected circuits plus an auxiliary output, making it suitable for mid-scale distributed power architectures in access control, surveillance, and fire alarm applications.

Key Features

• Fire alarm disconnect relay for emergency system shutdown compliance
• Eight PTC Class 2 output circuits with individual protection and supervision
• Auxiliary output for specialized equipment or secondary load circuits
• Integrated battery backup capability with automatic charge management
• Selectable 12/24VDC output to match varied equipment requirements
• AC fail, low battery, and battery presence supervision signals
• 4A total maximum current capacity across all outputs
• UL Listed for life safety and security applications

Applications

• Fire alarm system power distribution with mandated emergency disconnect
• Access control and door strike power in multi-zone installations
• Video surveillance camera and encoder power with battery backup
• Mixed-voltage security equipment requiring supervised distribution
• Institutional and commercial facilities with distributed field devices

Specifications

• Input: 120VAC 60Hz
• Output Voltage: Selectable 12/24VDC
• Maximum Current: 4A total
• Outputs: Eight PTC Class 2 circuits + auxiliary output
• Battery Backup: Yes
• Fire Alarm Disconnect: Yes
• Supervision: AC Fail, Low Battery, Battery Presence
• Approval: UL Listed
• Warranty: Lifetime Limited Warranty
