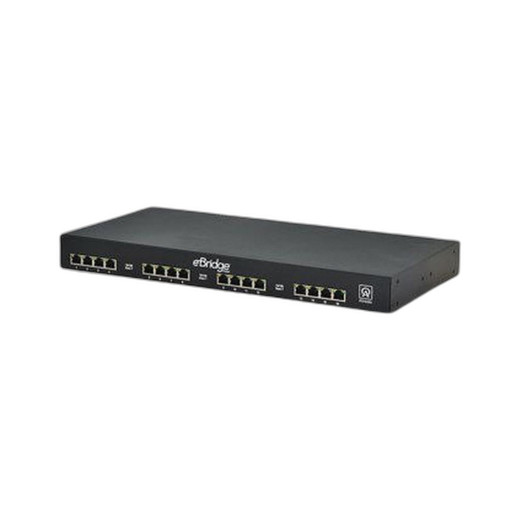

Altronix EBRIDGE1600PCRM 16-Port EoC Receiver
Overview
The Altronix EBRIDGE1600PCRM is a 16-port Ethernet over Coax (EoC) receiver engineered for security integrators and system installers who need to extend network connectivity over existing coaxial cable infrastructure. Operating at 100Mbps per port with a maximum transmission distance of 300 meters, this 1U rack-mount receiver delivers reliable PoE and PoE+ passthrough capability, allowing you to maintain power delivery to downstream devices while extending network reach. The EBRIDGE1600PCRM requires a compatible transceiver for operation, making it suitable for retrofit installations and new deployments where coax infrastructure is already established or preferred.
Key Features
- 16 Network Ports: Simultaneous connection of up to 16 devices, each running at 100Mbps throughput
- 100Mbps Per-Port Performance: Dedicated bandwidth per channel eliminates port contention and ensures consistent data delivery
- PoE/PoE+ Passthrough: Maintains power delivery to IP cameras, access control readers, and other PoE-enabled endpoints without additional power infrastructure
- 300-Meter Transmission Range: Extends network coverage over coaxial cable, reducing the need for additional networking hardware in distributed deployments
- 1U Rack-Mount Form Factor: Integrates seamlessly into standard 19-inch server racks for organized installation and cable management
- Coaxial Cable Compatibility: Leverages existing coax runs, reducing installation labor and material costs in retrofit scenarios
Integration & Compatibility
The EBRIDGE1600PCRM operates as part of the Altronix EoC ecosystem and requires a compatible transceiver at the head-end or remote location to establish the Ethernet over Coax link. This receiver is designed for integrators specifying systems where coaxial backbone infrastructure is preferred or already in place. Proper transceiver pairing is essential—consult product documentation or your Altronix distributor to confirm transceiver compatibility for your specific deployment topology.
Typical Applications
Security integrators commonly deploy the EBRIDGE1600PCRM in multi-building campuses, retail chains, and access control installations where coax cabling is already run between locations. The PoE passthrough capability makes it particularly valuable for IP surveillance systems, badge readers, and networked door controllers. The 300-meter range supports medium to long-distance runs without requiring active network hubs or switches at intermediate points.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Altronix EBRIDGE1600PCRM during several campus and multi-site deployment planning sessions. The core value proposition is straightforward: if you have coax already run and need to extend network and power simultaneously, this receiver eliminates the cost and complexity of parallel cabling runs. The 16-port density and per-port 100Mbps performance are appropriate for surveillance and access control workloads in most security integrations.
Technical Highlights:
- Coax-Based Extension: The EBRIDGE1600PCRM converts coaxial runs into Ethernet links, making it a cost-effective option when Cat5/Cat6 infrastructure is not already installed or when working around structural constraints.
- PoE/PoE+ Passthrough: Power delivery is maintained across the EoC link, so cameras and readers do not require separate power supplies at remote locations.
- 100Mbps Per-Port Capacity: Sufficient for multiple HD surveillance streams, credential readers, and typical access control data traffic per site.
Deployment Considerations:
- Transceiver compatibility is non-negotiable—verify head-end and remote equipment are matched to the receiver to avoid integration delays.
- The 300-meter range covers most campus and light-industrial installations; for longer distances or multiple hops, plan intermediate receiver/transceiver pairs.
- Plan for proper 1U rack space and UPS/backup power if the receiver is critical to system uptime—EoC links are point-to-point and do not provide redundancy on their own.
The EBRIDGE1600PCRM is a reliable choice for integrators working in environments where coaxial infrastructure is an asset rather than a liability. Pair it with proper transceiver selection and documented cable runs, and it will deliver consistent network extension for 5+ years.
