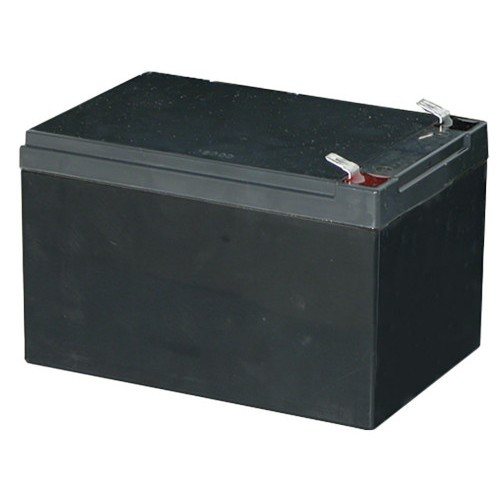

Altronix BT1212 12VDC 12AH Sealed Lead Acid Battery
The Altronix BT1212 is a 12VDC 12AH sealed lead acid battery purpose-built as backup power for security infrastructure during mains failure. This is a straightforward component — not a UPS system, not a charger — but a replacement or supplemental battery pack that integrates with existing Altronix power supply equipment to extend runtime when primary power drops.
Key Features
- 12VDC 12AH capacity: 144 watt-hours of stored energy translates to meaningful runtime for access control, surveillance power distribution, and alarm circuits. Exact uptime depends on the load (a single electronic door lock draws far less than a bank of PoE cameras), but 12AH is the standard midrange for rack-mount security backup — enough for 2–4 hours on modest loads, longer in standby scenarios.
- Sealed lead acid construction: No fluid maintenance, no acid spillage risk, and no venting requirements — you can install this in a confined cabinet or enclosure. This matters in deployments where technician access or environmental control is limited.
- Battery backup integration: Designed to work with Altronix power supply products, meaning the charger and monitoring logic is already built into your existing equipment. No standalone charging circuit required if you're already running Altronix infrastructure.
- Industry-standard form factor: Fits into typical DIN-rail or cabinet-mount power supply enclosures without custom fabrication or sizing workarounds.
- Lifetime Limited Warranty: Covers defects in materials and workmanship — standard for the category. Actual battery service life is typically 5–7 years depending on charging cycles and ambient temperature; warranty is not a replacement guarantee beyond manufacturing defects.
- No special tools or skills required for installation: Terminal connections are straightforward; integrates via standard connector if your Altronix supply has battery terminals already provisioned.
Typical Deployment Scenarios
The BT1212 is most useful in:
- Access control systems: Door locks, card readers, and strike mechanisms that must remain active during a brief outage or allow a supervised shutdown/unlock sequence.
- Surveillance power distribution: Extending recorder and network switch runtime so disk writes complete cleanly and remote monitoring stays live long enough for facility staff to respond.
- Alarm and notification circuits: Keeping detection circuits, panel displays, and cellular/Ethernet backup connections operational during power interruption.
- Gate operators and barriers: Providing sufficient power for a controlled closure or fail-safe unlock during loss of mains power.
Integration & Compatibility
The BT1212 is a battery module only — it requires an Altronix power supply with integrated battery charger and monitoring. Confirm your power supply model includes battery connector terminals before ordering; retrofit to non-Altronix equipment or older supplies without battery provisions is not supported. If you are standardizing on backup power for security infrastructure, this battery is a natural fit for Altronix environments.
When to Choose a Different Approach
If you need more than 12–14 hours of runtime, consider stacking multiple batteries (if your power supply supports daisy-chaining) or upgrading to a higher-capacity Altronix battery model in the same family. If your load exceeds 50–100W continuously, consult the power supply's output rating and battery runtime calculator — the BT1212 will provide reduced uptime. If you require true UPS functionality with automatic switchover and conditioning, a dedicated UPS system is more appropriate than a passive battery backup module.
Frequently Asked Questions
Q: Does the BT1212 work with non-Altronix power supplies?
A: No. The BT1212 is designed for integration with Altronix charger and monitoring circuits. Adapting it to third-party equipment requires a compatible charger and battery management system; direct terminal connection to non-Altronix supplies is not recommended.
Q: What's the expected runtime on a full charge?
A: Runtime depends entirely on the load connected to your power supply. A single door lock (typically 0.5–1A draw) may run 10+ hours; a full cabinet with multiple loads may deplete the battery in 2–4 hours. Check your load profile against the power supply's output and the 12AH capacity to estimate uptime for your installation.
Q: Can I replace the BT1212 myself, or does Altronix need to do it?
A: Battery replacement is a straightforward swap in most Altronix enclosures — disconnect the old unit, remove the battery module from the bracket, install the new BT1212, and reconnect. No tools beyond a socket or terminal puller are required. Refer to your power supply's installation guide for specific steps.
Q: Does the BT1212 need to be charged before first use?
A: New sealed lead acid batteries typically arrive partially charged. Install the BT1212 in your Altronix supply, apply mains power, and allow the charger 12–24 hours to achieve full charge before relying on backup runtime. Check the charger's status indicator (if present) to confirm readiness.
Q: How long does a BT1212 typically last before replacement?
A: Sealed lead acid batteries typically deliver 5–7 years of service in a float-charge backup environment. Lifespan degrades faster in high-temperature conditions or with frequent deep discharge cycles. Plan to budget for replacement every 5 years as preventive maintenance on critical systems.
Q: Is the BT1212 NDAA compliant or manufactured in the USA?
A: Altronix products are designed in the USA, but component sourcing and final assembly location should be confirmed directly with Altronix or your specialty distributor if domestic-source requirements apply to your project.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix BT1212 is a straightforward, reliable backup battery for security installations where brief mains loss is expected. At 12AH capacity, it delivers real uptime — typically 2–4 hours on a standard mix of access control and surveillance loads — without the cost or complexity of a full UPS. If you're deploying Altronix power distribution equipment, the BT1212 integrates seamlessly because the charger and monitoring logic are already built into your supply.
Technical Highlights:
- 12AH capacity (144 watt-hours): Sufficient for 2–4 hours of runtime on typical access control and surveillance loads; actual uptime scales with your specific draw profile.
- Sealed lead acid chemistry: Eliminates acid spillage, venting, and fluid maintenance — a real advantage in confined cabinet installations where environmental control is tight or technician access is infrequent.
- Lifetime Limited Warranty on manufacturing defects: Standard coverage; plan for battery replacement every 5–7 years as preventive maintenance on critical systems to avoid unexpected failures.
Deployment Considerations:
- The BT1212 is a battery module, not a charger or UPS — it requires integration with an Altronix power supply that already has battery terminals and charging circuitry provisioned. Retrofit to non-Altronix equipment is not supported.
- Sealed lead acid chemistry is heavier and bulkier than lithium-ion at the same capacity, so DIN-rail or cabinet real estate matters. Confirm your enclosure has room and adequate mounting brackets for the module.
- Cold climates reduce available capacity; hot enclosures accelerate aging. Monitor ambient temperature around the power supply — extended exposure above 80°F shortens battery life measurably.
Position the BT1212 as the default choice for Altronix-standardized environments where 2–4 hour backup runtime covers a supervised shutdown, lock-down, or failover sequence. For installations demanding 8+ hours of continuous operation during extended outages, or for loads exceeding 75–100W, escalate to either stacked batteries or a true UPS product.
