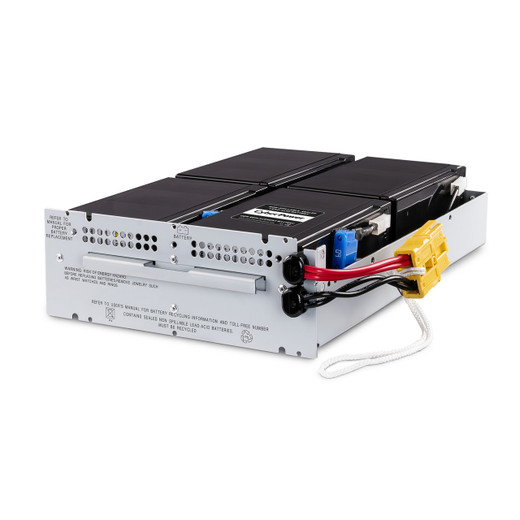

CyberPower APCRBC133-CP Sealed Lead-Acid Battery

Overview

The CyberPower APCRBC133-CP is a 24V 9Ah sealed lead-acid battery designed as a replacement or spare unit for uninterruptible power supplies and backup power systems in surveillance, access control, and commercial installations. At 24 pounds, this battery delivers 216-watt-hour capacity — enough runtime for multiple cameras, controllers, and edge devices during power loss. The sealed design eliminates maintenance while the 2-year limited warranty covers manufacturing defects across the full operating envelope.

Key Features

• 24V / 9Ah capacity: Delivers 216 watt-hours of stored energy — sufficient for 30 minutes to several hours of runtime depending on load, making it suitable for surveillance sites running 4–8 cameras or integrated access control systems during mains loss.
• Sealed lead-acid chemistry: No maintenance required, no fluid refill, no acid spill risk. Ideal for unattended cabinet and rack deployments where you cannot service batteries frequently.
• Wide operating temperature range (0–40°C / 32–104°F): Handles cold data centers and warm server rooms without derating. Outside this range, discharge capacity drops — a real consideration if your installation sits in an unheated warehouse or outdoor equipment shelter.
• Compact form factor (8.5 × 3.09 × 13.13 inches): Fits standard battery trays in CyberPower UPS models and most third-party 24V systems. The 24-pound weight is manageable for two-person installation but plan for lift assistance if mounting in a ceiling-mounted UPS.
• Low self-discharge chemistry: Holds charge during extended storage or standby periods — critical if your backup system sits idle for months between service cycles. Reduces the risk of finding a dead battery during a real power failure.
• RoHS-compliant, recyclable: Lead-acid batteries are fully recyclable and accept no hazardous mercury or cadmium. Disposal is straightforward through any battery recycler; many will collect batteries free or for a modest core charge.

Integration & Compatibility

The APCRBC133-CP (also searched as APCRBC133 CP) integrates as a direct replacement in CyberPower UPS systems rated for 24V batteries, including legacy and current models. Before purchase, verify your UPS model accepts external battery modules — not all compact 24V supplies support battery expansion. If you are upgrading an existing installation, check the UPS manual or contact the original integrator for the correct battery connector type (typically a pair of M6 or M8 terminals). In surveillance deployments, this battery backs up IP cameras, PoE switches, access readers, and NVR edge devices — all common 24VDC loads. Pair this battery with an appropriately sized 24VDC UPS to ensure adequate runtime for your site's power-down sequence and camera/storage flush time.

Operating Environment & Maintenance

The battery is rated for 0–40°C continuous operation and 0–90% relative humidity. At temperatures above 40°C, capacity and cycle life degrade — do not install in direct sun or unventilated equipment enclosures. At temperatures below 0°C, discharge capacity is reduced by roughly 50% until the battery warms; keep this in mind if your backup system sits in an outdoor cabinet in winter. Sealed construction means no watering, no acid cleaning, and no hydrogen venting — safe for indoor rack deployment. A 2-year limited warranty covers manufacturing defects; however, batteries have a fixed lifespan of 3–5 years depending on charge cycles and temperature history. Plan battery replacement as preventive maintenance every 3–4 years, even if no fault appears.

Frequently Asked Questions

Q: What is the actual runtime the APCRBC133-CP provides?

A: Runtime depends entirely on your load. At 100W draw, expect approximately 2 hours; at 50W, roughly 4+ hours. For precise runtime calculations, consult your UPS manual or use the manufacturer's runtime calculator with your specific load profile.

Q: Can I use the APCRBC133-CP as a standalone 24V battery outside a UPS system?

A: Yes, the battery terminals accept standard M6 or M8 connectors found on most 24VDC charging and distribution equipment. However, you must pair it with a compatible charger rated for 24V sealed lead-acid — do not attempt to charge it with automotive or unregulated power supplies.

Q: What is the warranty coverage on the APCRBC133-CP?

A: CyberPower provides a 2-year limited warranty against manufacturing defects. Normal wear, age-related capacity loss, and damage from improper charging are not covered.

Q: How do I safely dispose of the APCRBC133-CP when it reaches end of life?

A: Lead-acid batteries are recyclable in all U.S. states and most countries. Contact your local hazardous waste facility or a battery recycler — many accept batteries for free or offer a small core credit.

Q: Is the APCRBC133-CP suitable for outdoor installations?

A: Only if housed in a weatherproof enclosure rated for rain and temperature extremes. The battery itself is not submersible and must stay dry; prolonged exposure above 40°C will shorten its lifespan significantly.

James Everett

I spec a lot of 24V backup systems for distributed surveillance sites, and the APCRBC133-CP sits right in the middle of the cost-to-capacity curve. At 216 watt-hours and sealed chemistry, it's the workhorse battery for small-to-mid-scale access control and camera backup — places where a 5-minute battery bridge gets your DVR/NVR shutdown sequence complete without a full UPS cabinet.

Technical Highlights:

• 216 Wh capacity (24V × 9Ah): Covers 30–90 minutes of runtime on a typical 4-camera + controller load. Longer if you're backing up just an access reader or PoE injector. Real-world rule: multiply by 0.8 to account for the depth-of-discharge limit on lead-acid chemistry.
• Sealed lead-acid construction: Zero maintenance in a warehouse or parking-garage cabinet where you can't service batteries monthly. No hydrogen venting, no acid spill — stack it horizontal or vertical, no gas concerns.
• 0–40°C operating band: This is the constraint to watch. Outside that envelope, capacity drops hard. A hot summer attic or unheated winter storage room will eat into your runtime and shorten cycle life. If your install sits at extremes, you need thermal management or a different chemistry (lithium iron phosphate, but that's a 3x cost jump).

Deployment Considerations:

• Verify your UPS accepts external battery modules before you buy — not all compact 24V models support battery expansion. Pull the datasheet or check the connector type first.
• Plan battery replacement every 3–4 years as preventive maintenance. Lead-acid capacity fades gradually; by year 5, you're running at 60–70% of nominal. Better to swap proactively than discover a dead battery during a real power event.

Deploy the APCRBC133-CP in any mid-size surveillance site (office building, light retail, warehouse access control) where you need 30–60 minutes of seamless backup power. Pair it with a properly sized 24V charger and you've got a reliable, maintainable fallback for camera and reader shutdown. Not for data centers (use lithium) — but for field installations where cost and simplicity matter, it's a solid choice.
