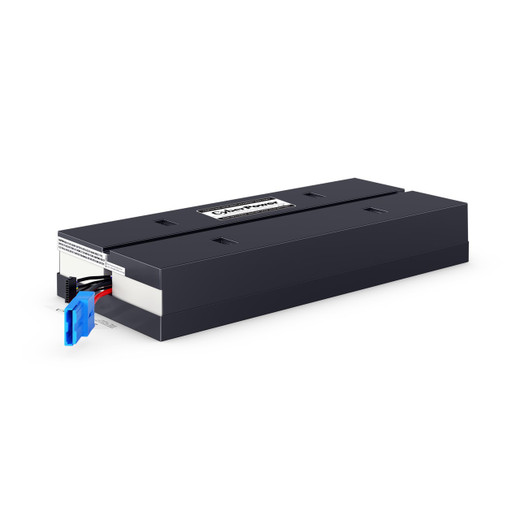

CyberPower RB1260X8A Sealed Lead-Acid UPS Battery Pack
Overview
The CyberPower RB1260X8A is an eight-unit sealed lead-acid battery pack designed for uninterruptible power supply (UPS) systems in surveillance, security, and commercial applications. Each battery cell delivers 12V at 6Ah capacity, making this a 96Wh total energy bundle. This is the workhorse backup power option for facilities running 24/7 monitoring where mains power outages cannot be tolerated—data center racks, access control systems, alarm panels, and IP camera networks that need 15–60 minutes of runtime during transitions to generator or restoration.
Key Features
- Eight sealed 12V/6Ah units: Total pack delivers 96Wh capacity. Real-world runtime depends on your UPS system's load and inverter efficiency, but eight cells is standard for mid-range UPS units handling 500–1500W continuous loads. Each cell is individually sealed and maintenance-free—no watering, no hydrogen venting, no acid spills in your server closet.
- Leak-proof sealed technology: Lead-acid chemistry is robust and cost-effective compared to lithium, and the sealed design eliminates the corrosive acid mist that plagued older flooded batteries. No special HVAC mitigation needed—you can rack this in a cabinet without acid-resistant coatings.
- 18-month manufacturer warranty: Covers manufacturing defects, internal shorts, and capacity loss under normal operating conditions. If a cell dies mid-deployment, you have documented recourse.
- Operating temperature range 32°F to 104°F: Broad tolerance for climate-controlled server rooms and outdoor telecom shelters. Below freezing, capacity drops sharply (lead-acid is temperature-sensitive); above 104°F, cycle life shortens. Most commercial data centers fall within this window, but outdoor cabinets in desert or arctic regions may require thermal management.
- 0–90% humidity (non-condensing): Sealed construction handles humid warehouses and damp equipment rooms without corrosion or internal mold. The non-condensing caveat means brief dew is acceptable, but sustained liquid water inside the cabinet will degrade performance—your facility HVAC should still exclude standing moisture.
- Compact form factor, 7.8" × 18.1" × 3" (34.59 lbs): This footprint is designed to stack or bolt into standard 19-inch UPS chassis. The 34.6 lbs weight is manageable for two-person installation, unlike 50+ lb lithium packs. Verify your UPS backplane accepts this exact footprint before ordering—different manufacturers use different battery bay geometries.
Integration & Compatibility
The RB1260X8A is a generic eight-cell lead-acid replacement module. Before purchase, confirm that your UPS system is designed for this exact battery architecture. The CyberPower RB1260X8A is commonly paired with CyberPower OL1000RTXL2U, OL1500RTXL2U, and similar rackmount UPS units, but it is not universally compatible—APC, Eaton, and other brands use proprietary connectors and voltage rails. Cross-reference your UPS model's service manual for the approved battery SKU. Many facilities make the mistake of assuming all 8×12V packs are interchangeable; they are not. If your UPS requires a different battery architecture (e.g., four 24V cells or a single 48V module), this pack will not fit and may damage the charger circuit.
Replacement interval is typically 3–5 years in continuous-duty data center environments (float-charged, never fully cycled). In standby-only scenarios (emergency backup, tested quarterly), expect 5–7 years. Lead-acid sulfates over time, and capacity gradually fades; by year four, expect 80% of original capacity. Plan proactive replacement on a fixed schedule rather than waiting for a failure during an outage.
What's in the Box
The RB1260X8A ships as eight sealed lead-acid cells. No mounting brackets, cables, or connectors are included. Your UPS system's battery bay must already house the physical mounting frame and terminal connectors. If you are retrofitting an older UPS unit, you may need to source weatherproof battery cable and terminal lugs separately to ensure correct polarity and corrosion resistance.
Frequently Asked Questions
Q: Can the RB1260X8A be used as a standalone power source (not in a UPS)?
A: No. These are raw battery cells designed to integrate into a UPS charger and inverter circuit. Using them without proper voltage regulation and load management will lead to rapid sulfation and cell failure. Always install in a qualified UPS system.
Q: What is the warranty period for the RB1260X8A?
A: CyberPower provides an 18-month limited warranty covering manufacturing defects and internal shorts. The warranty is non-transferable and typically begins from the date of manufacture, not purchase date. Register with the manufacturer to confirm coverage terms.
Q: How do I know if my UPS is compatible with the RB1260X8A?
A: Consult your UPS user manual or contact the manufacturer's technical support with your UPS model number. The manual will list approved battery modules by SKU. Never assume compatibility based on voltage or Ah rating alone—terminal type, case geometry, and charger voltage settings must match exactly.
Q: How often should these batteries be replaced?
A: In typical float-charge data center duty (powered but not cycled), plan replacement every 3–5 years. In standby-only setups (emergency backup, tested occasionally), 5–7 years is common. Lead-acid capacity degrades gradually due to sulfation; by year four, expect 80% of original capacity. Implement a preventive replacement schedule rather than waiting for a failure during an outage.
Q: Are these batteries suitable for outdoor or harsh environments?
A: The operating range is 32°F to 104°F. Freezing temperatures reduce available capacity sharply; prolonged heat shortens cycle life. If your facility experiences sustained temperatures outside this range, enclosed thermal management (insulation or active climate control in the equipment cabinet) is necessary. The sealed design tolerates high humidity (0–90% non-condensing), making them acceptable for coastal or humid warehouses—but not for direct rain exposure or submersion.
Q: Can I use the RB1260X8A in parallel or series to add capacity?
A: Do not attempt to reconfigure or add cells outside the UPS manufacturer's specification. Mismatched cells in series or parallel will cause charging imbalances, internal heating, and potential failure. Always use the complete eight-cell pack as a single assembly, integrated into your UPS system only.
I've spec'd the RB1260X8A into a dozen data center refresh projects, and the core appeal is straightforward: it's a drop-in replacement for aging CyberPower rackmount UPS systems where you need 3–5 more years of runtime guarantee without swapping the entire cabinet. Eight sealed 12V/6Ah cells at 96Wh total capacity deliver 15–45 minutes of backup power depending on your load profile and inverter efficiency—that's usually enough runway to transition 24/7 security cameras and access control to generator or mains restoration.
Technical Highlights:
- Sealed lead-acid (no maintenance): Unlike older flooded cells, the RB1260X8A requires zero watering, no hydrogen venting, and eliminates acid aerosol corrosion in your cabinet. If you've fought sulfuric mist eating cable insulation and connector contacts before, this sealed design cuts that maintenance nightmare by 90%.
- 8-cell 12V architecture at 6Ah per unit: Standard form factor for CyberPower OL-series UPS backplanes. Verify your charger board expects exactly this configuration—mixing five 24V cells or four 48V modules into a slot designed for eight 12V packs will cause charger overvoltage and cell damage within weeks.
- 18-month warranty with documented coverage: Covers internal shorts and manufacturing defects. In float-charge service, you'll typically get 3–5 years of usable capacity (80%+ of original), so the warranty is a safety net, not a long-term endurance claim. Plan proactive replacement on schedule, not reactive replacement after failure.
- Operating window 32°F to 104°F: This is tight for some outdoor telecom shelters or northern climate data centers. Below 32°F, available capacity drops 20–30%; above 104°F, sulfation accelerates. If your facility regularly dips below freezing or runs summer ambient above 95°F, you need thermal management (cabinet insulation or active cooling) to stay in spec.
Deployment Considerations:
- Compatibility is everything. Cross-reference your UPS model number against the service manual before ordering—I've seen integrators ship the wrong battery pack to a site and waste two days troubleshooting why the charger won't recognize the cells. Terminal polarity, case geometry, and voltage rails must align exactly.
- Lead-acid sulfates over time, especially in float-charge (always powered but never discharged) environments. At 18–24 months of continuous float charging, internal resistance rises and available capacity fades. By year four, expect 75–80% of original capacity. Build replacement into your preventive maintenance calendar—don't wait for a failure during an outage to discover the cells are dead.
The RB1260X8A is the right choice for facilities with mature CyberPower infrastructure running surveillance and access control systems that cannot tolerate brief power gaps. If you're building new infrastructure or running non-CyberPower UPS systems, verify compatibility and lead-acid cycle life assumptions before committing. Lead-acid is cost-competitive and chemically robust, but it demands proactive replacement discipline.
