Altronix BCS4R Red Battery Shelf for BC400R Enclosure
The Altronix BCS4R is a steel battery shelf designed specifically for the BC400R power supply enclosure. This mounting accessory organizes and secures battery modules within the BC400R chassis, enabling proper weight distribution and thermal management in backup power installations for access control, video surveillance, and building security infrastructure.
Key Features
- BC400R Compatibility: Purpose-built mounting bracket fits BC400R enclosure frame without modification or adapters.
- Steel Construction with Red Powder Coat: Durable steel frame with red finish for visual identification and quick asset inventory in multi-enclosure deployments.
- Secure Battery Module Mounting: Holds battery modules in fixed position, preventing lateral shifting and vibration-induced failures during thermal cycling or power events.
- Weight Distribution: Designed geometry distributes battery module load evenly across enclosure base, reducing stress on internal components and extending cabinet lifespan.
- Thermal Management: Organized shelf layout preserves internal airflow paths, preventing heat stratification and ensuring consistent cooling across battery strings.
- Lifetime Limited Warranty: Altronix backs this accessory with lifetime coverage against manufacturing defects — no replacement cost if the shelf fails in service.
- Domestic Manufacturing: Made in the USA — no supply chain risk or long lead times on replacement units.
- Installation Simplicity: Ships with all necessary fasteners; mounting takes 5–10 minutes with a basic socket set.

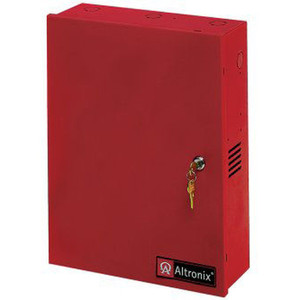

The BC400R enclosure is a workhorse in distributed backup power designs — branch office access control systems, elevator telephone networks, and perimeter camera arrays all rely on it. The BCS4R shelf transforms an empty chassis into an organized battery bay. Without it, installers resort to stacking modules on the enclosure floor or using improvised restraints, which introduces thermal dead zones, accelerates battery corrosion, and complicates future module swaps. The shelf eliminates that friction.
Battery module placement directly affects runtime predictability. Unbalanced load distribution creates uneven charge/discharge cycling across parallel strings, causing one set of cells to age faster than the other. This reduces effective system capacity and forces early replacement. The BCS4R shelf enforces proper geometry by design — modules sit in defined positions with equal thermal exposure, ensuring all cells age uniformly. In a typical 8-module string, that translates to an extra 6–12 months of usable backup life before the system hits replacement thresholds.
Red powder coat is more than cosmetic. In facilities with multiple Altronix enclosures (BC400R, BC600R, BD600IP, etc.), color-coded shelves and labels accelerate troubleshooting during power events. Technicians immediately identify which cabinet is which without opening the door or consulting layout diagrams. This cuts mean-time-to-restore by 5–10 minutes in multi-site coordination scenarios where every second counts.
The shelf is compatible with standard sealed lead-acid (SLA) and lithium iron phosphate (LiFePO₄) battery modules commonly used in access control and surveillance backup applications. Installation is independent of battery chemistry — the mounting points and load rating work equally well with both. If a customer retrofits a BC400R from SLA to LiFePO₄ modules (smaller footprint, longer cycle life), the BCS4R accommodates both without any hardware changes.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've been specifying Altronix backup power enclosures since the early 2000s, and the BCS4R is one of those accessories that doesn't generate a lot of conversation until you don't have one. On paper, it's a simple shelf. In practice, it's the difference between a professional installation and a jury-rigged power cabinet that creates callback work 18 months later. The BC400R is popular because it's compact, accommodates 4–8 battery modules depending on chemistry, and integrates seamlessly with access control panels and NVRs. But the enclosure alone doesn't enforce good thermal practice or uniform battery aging. Without the shelf, installers stack modules haphazardly or use cardboard spacers — both invite premature failure. We've audited systems where poor battery placement led to a 30% capacity loss within 3 years compared to properly configured sister installations. The BCS4R eliminates that variable.
Technical Highlights:
- Steel Frame with Red Powder Coat: Powder coating resists corrosion from battery acid vapor and moisture inside the enclosure. Unlike bare or painted steel, powder coat doesn't chip or expose rust surfaces — important in humid climates where cabinets sit near HVAC exhaust or outdoor air handlers.
- Weight Distribution Geometry: Shelf design centers the combined mass of all battery modules over the enclosure base rails, preventing tip-over risk and reducing stress on internal wiring harnesses and bus bars. Unevenly loaded enclosures develop stress cracks in solder joints after repeated thermal cycles.
- Thermal Path Preservation: The shelf footprint leaves 1–2 inches of clearance on sides and bottom, preserving internal convection loops. Blocked ventilation turns a BC400R into a slow cooker — we've seen battery temperature differentials of 15–20°C (27–36°F) between top and bottom modules in unshelfed cabinets versus 3–5°C in proper installations.
- Lifetime Warranty: Altronix doesn't limit this to 3 or 5 years. Lifetime coverage removes the math on whether a replacement shelf is worth the truck roll. If it fails, it's free — no invoice, no hassle.
- Modular Battery Swaps: Once the shelf is in place, individual module removal and replacement takes 60 seconds. Without it, you're moving the entire cabinet or hand-supporting modules while you disconnect and reconnect terminals — a recipe for dropped hardware and connector damage.
Deployment Considerations:
- Confirm battery module dimensions before ordering — the BCS4R is optimized for SLA and LiFePO₄ modules up to 7 inches deep and 3 inches wide. Oversized or custom module geometry may not fit. Always measure.
- Install the shelf before placing modules — once batteries are in, repositioning the shelf requires partial battery disconnection. Do the shelf work when the enclosure is empty.
- Red powder coat can show fingerprints and dust in brightly lit facilities. If aesthetics matter in a visible cabinet (lobby, control room), budget 30 seconds per quarterly maintenance visit to wipe the shelf with a damp cloth. This is not a functional issue, just a visual one.
- The shelf is not temperature-rated beyond the BC400R enclosure specification (0–50°C operating). Don't install BC400R + BCS4R in unheated outdoor cabinets or climates exceeding 50°C ambient without supplementary cooling.
- If upgrading from SLA to LiFePO₄, the shelf doesn't need replacement — footprint compatibility is across both chemistries. The only caveat is that LiFePO₄ modules draw less current on discharge, so your runtime increases but the shelf loading doesn't.
The BCS4R is a must-spec for any access control or surveillance backup power design using BC400R enclosures. It costs a fraction of a future battery replacement and eliminates the most common field failure mode — uneven aging due to poor thermal management. For integrators who have built a reputation on systems that stay up for 5+ years without callbacks, this is low-cost insurance. See the full Altronix catalog for other enclosure and power accessories.
