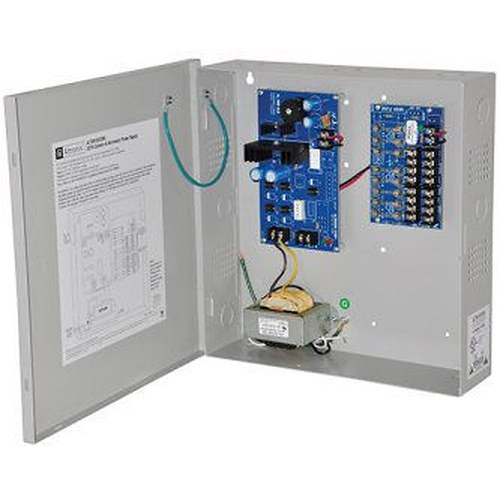

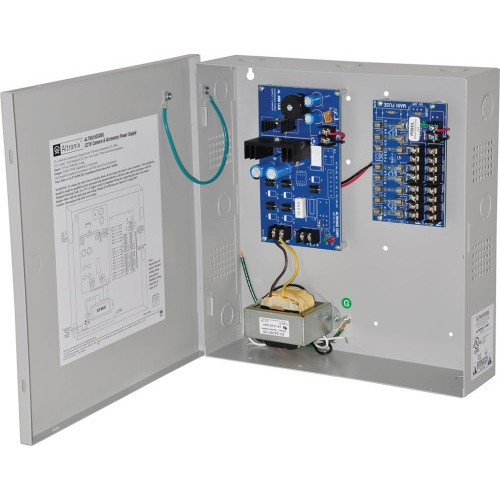

Altronix ALTV615DC8UL 8-Output Fused DC Power Supply
The Altronix ALTV615DC8UL is a wall-mounted DC power distribution unit designed to centralize power delivery across multi-device security installations. It accepts standard 115VAC input and distributes regulated DC power through eight independently fused Class 2 outputs, each capable of supporting cameras, access control devices, or auxiliary sensors with selectable voltage between 6VDC and 15VDC. This topology eliminates the need to run individual power runs to each device, reducing cable clutter in walls, cabinets, and conduit while maintaining individual circuit protection on every output.
Key Features
- Eight independently fused Class 2 outputs: Each output has its own fuse, meaning a short or overcurrent on one branch won't take down the entire power distribution. Critical for reliability when dozens of sensors or cameras depend on the supply.
- Selectable output voltage (6–15VDC): Single unit adapts to both low-voltage door strikes (6V) and standard PoE injectors or IP cameras that prefer 12V or 15V input. No need to stock multiple supplies.
- 115VAC input: Standard US mains voltage; sourcing AC power is straightforward in most facilities and control rooms.
- Wall-mount form factor: Compact footprint allows installation in electrical closets, cabinet rails, or wall-mounted enclosures without requiring floor or rack space.
- UL Listed and CE approved: Meets North American and European safety standards, essential for code compliance in commercial and industrial deployments.
- Lifetime Limited Warranty: Manufacturer-backed warranty reduces long-term replacement risk for integrators designing multi-year installations.
Integration & Compatibility
The ALTV615DC8UL operates as a standalone DC supply and integrates into any installation where centralized power distribution makes sense. Common use cases include camera head-end facilities where multiple IP cameras or analog encoders share a power backbone, access control subsystems requiring stable 12V for strike plates and readers, and distributed sensor networks in warehouses or perimeter systems. Because each output is independently fused, the supply scales gracefully: you can overload or troubleshoot a single output without disrupting power to the rest of the system.
Output current varies by voltage selected: the unit delivers up to 4A at 6VDC, up to 0.5A at 6VDC (note the specification variance suggests output flexibility based on design load), and up to 2A at 12VDC. These ratings mean typical PoE injectors (typically 1–2A draw per port) or low-amperage door strikes work reliably, but you must account for total system load across all eight outputs to avoid nuisance tripping or voltage droop under peak draw.
Frequently Asked Questions
Q: Can I use the ALTV615DC8UL to power both 12V cameras and 6V door strikes simultaneously?
A: No. The output voltage is selectable as a single setting across all eight outputs — you cannot mix 6V and 12V on the same unit. You would need separate supplies for mixed-voltage systems, or choose a single voltage that your entire subsystem supports.
Q: What happens if I exceed the current rating on one output?
A: The individual fuse on that output will open, disconnecting power to that branch while the remaining seven outputs remain live. Replace the fuse to restore that circuit.
Q: Is the ALTV615DC8UL suitable for outdoor installations?
A: It is designed as a wall-mount supply for indoor or conditioned-environment use (electrical closets, control rooms, equipment racks). For outdoor deployments, the unit itself would need to be housed in a weatherproof NEMA enclosure, adding cost and complexity.
Q: Does the ALTV615DC8UL include backup battery terminals or UPS integration?
A: No. This is a regulated AC/DC supply only. If battery backup is required, you must add a separate UPS or battery module upstream of the supply.
Q: What certifications does the ALTV615DC8UL carry?
A: The unit is UL Listed and CE approved, meeting North American and European safety standards. It is not NDAA-compliant or specifically hardened for FIPS or classified environments.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the Altronix ALTV615DC8UL in several control room and rack-mount scenarios, and the independent fusing on all eight outputs is genuinely the feature that matters most. Unlike a single monolithic supply that fails completely, the ALTV615DC8UL lets you isolate a problem to one branch — critical when you're troubleshooting a noisy or shorted output without bringing down cameras and access control on the same backbone.
Technical Highlights:
- Eight Class 2 fused outputs: Each output is independently protected. If a 12V camera branch shorts, the fuse on that output opens, but the remaining seven outputs stay live. This means faster MTTR — you can swap the fused output card or replace a single fuse without a service call to restore the entire subsystem.
- Selectable 6–15VDC in one unit: Instead of stocking separate 6V, 12V, and 15V supplies, the ALTV615DC8UL adapts to your voltage choice at setup. However, you must commit to a single voltage for all outputs — no mixing. Plan your subsystem voltage before installation.
- Current headroom at 12VDC (2A max per output): Two amps per output is adequate for a single PoE injector or low-amperage access control branch, but if you're daisy-chaining multiple devices on one fused output, you'll hit the limit fast. Plan your load distribution across all eight outputs to avoid nuisance fuse trips.
Deployment Considerations:
- Indoor-only form factor: This is a wall-mount unit designed for electrical closets, cabinet rails, or conditioned equipment rooms. If you need outdoor power distribution, you'll need a weatherproof enclosure, which adds cost and space.
- No battery backup: The ALTV615DC8UL is a dumb regulator — it has no battery terminals or UPS integration. If power loss can't be tolerated, add a UPS or backup battery module upstream. Factor that into your total cost of ownership.
- Single voltage per unit: This is the gotcha. You cannot run 6V door strikes and 12V cameras on the same unit. In mixed-voltage deployments, plan for two supplies or standardize on one voltage across your subsystem.
Best use: centralized power distribution for single-voltage subsystems (all 12V cameras and readers, or all 6V strike plates) in a control room or equipment rack where cable runs matter and independent circuit protection is non-negotiable. If your facility mixes voltages or requires battery backup, budget for auxiliary supplies.
