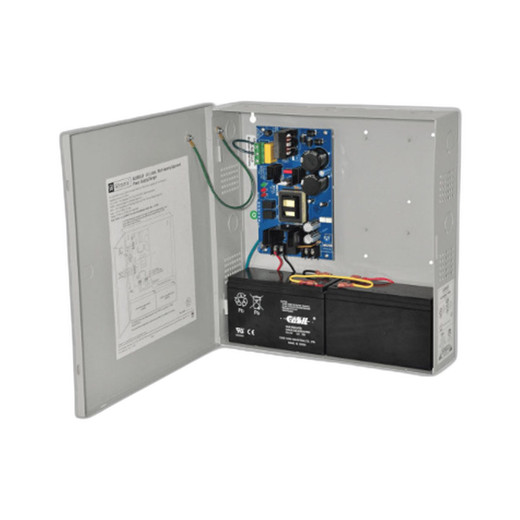

Altronix AL600ULXPD8 12VDC Power Supply with 8 Fused Outputs
The Altronix AL600ULXPD8 is a UL-listed, AC/DC power supply and battery charger built for distributed 12VDC infrastructure in security deployments. It delivers 6A capacity at 12VDC across eight independently fused outlets, providing circuit-level fault isolation and overload protection. This matters in practice: if a single door lock or sensor circuit draws excessive current or fails short, that fuse blows in isolation — the remaining seven circuits stay live. No single point of failure across your entire 12VDC distribution network.
Key Features
- Eight independently fused outputs: Each outlet is protected by its own fuse, isolating faults to a single circuit. One shorted device won't cascade and kill power to access control readers, auxiliary sensors, or backup systems on the remaining seven channels.
- 6A per-channel capacity at 12VDC: Sufficient headroom for typical door locks (1–2A), proximity readers (0.3–0.5A), and light sensor packages. This translates to real deployment flexibility without undersizing.
- Integrated battery charger: Built-in trickle and fast-charge modes keep a backup battery ready for AC outages. Supervision monitors whether the battery is present and charged — no surprises during a mains failure.
- AC Fail supervision: The supply alerts your panel or monitoring system the instant AC power is lost, triggering immediate failover logic or notifications. Critical for time-sensitive installations where you need to know immediately.
- Low Battery and Battery Presence monitoring: Real-time feedback on backup power status prevents late discovery of a failed or missing battery. Integrates directly with alarm panels and access control systems that support supervised 12V supplies.
- UL Listed and CE approved: Meets North American and European safety and EMC standards. Required by most jurisdictions for commercial security installations and simplifies code compliance during inspection.
- Lifetime Limited Warranty: Manufacturer stands behind the unit for the life of your ownership, reducing lifecycle cost and risk on a device often hidden in a cabinet or rack.
Integration & Compatibility
The AL600ULXPD8 pairs with access control systems that require auxiliary 12VDC distribution, multi-circuit power supplies and battery chargers, and alarm panels with supervised output monitoring. Its fused architecture makes it well-suited for retrofit installations where you need to add protected circuits without redesigning existing panel wiring. Supervision outputs (AC Fail, Low Battery, Battery Presence) connect to standard dry-contact inputs on compatible panels, so integration is straightforward on existing systems.
When to Choose a Different Model
If you need higher per-channel current capacity — for example, powering multiple high-draw devices like mag locks or motor-driven exit hardware from a single outlet — consider a higher-amperage variant in the Altronix power supply family. If your backup requirement exceeds what a single battery can supply, or if you need redundant charging paths, look at multi-slot or dual-supply configurations.
Deployment Scenarios
The AL600ULXPD8 is most often deployed in mid-sized access control installations (4–8 doors), where each fused outlet feeds a single door controller, mag lock, or auxiliary sensor circuit. It's also a fit for networked camera and sensor power distribution systems requiring supervised, fault-isolated 12VDC. In warehouse automation and building integration projects, it handles the auxiliary 12V rail for motion sensors, contact closures, and backup charging — keeping your primary distribution clean and accountable.
Frequently Asked Questions
Q: What happens if one fuse blows on the AL600ULXPD8?
A: Only that single output goes dead. The remaining seven outlets continue to deliver power normally, because each has its own independent fuse. This is the point of per-outlet protection — one fault doesn't cascade.
Q: Does the AL600ULXPD8 work with any alarm panel or access control system?
A: It integrates with any panel that accepts a 12VDC auxiliary supply and can monitor dry-contact inputs (for AC Fail, Low Battery, and Battery Presence signals). Confirm your panel manual supports supervised 12V inputs; most commercial systems do.
Q: What size backup battery do I need for the AL600ULXPD8?
A: Depends on your load and runtime requirement. A typical 7Ah SLA battery will run a pair of mag locks (2–3A draw) for 1–2 hours. Size your battery based on your longest acceptable downtime and total concurrent 12VDC load. The supply's charger will handle any standard lead-acid or gel-cell backup.
Q: Is the AL600ULXPD8 suitable for outdoor cabinet installation?
A: As a power supply, yes — mount it indoors or in a protected enclosure. It's not rated for direct weather exposure. If you need outdoor-rated backup power, house this unit in a weatherproof cabinet or use an outdoor-rated UPS.
Q: How do I know if the battery is failing?
A: The AL600ULXPD8 provides Low Battery supervision output. Wire this to a monitored input on your panel, which will alert you if voltage drops below threshold — typically 10.5V. This signal triggers before the battery is fully dead, giving you time to replace it.
Q: What fuse rating and type does the AL600ULXPD8 use?
A: Refer to the datasheet for exact fuse specifications (amperage and type). Most Altronix supplies use standard automotive-type fuses; check your manual for the correct rating to avoid nuisance trips or undersizing.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
The AL600ULXPD8 is a workhorse supply if your access control or mixed-voltage infrastructure requires distributed 12VDC with fault isolation and battery backup supervision. The per-outlet fusing is the real asset here — it forces you to think about circuit independence instead of lumping eight devices on one fuse and hoping for the best.
Technical Highlights:
- 8 independently fused outputs: Fault on one circuit doesn't kill the other seven. In a four-door access control retrofit, this means a shorted mag lock won't cascade to the other readers and control boards.
- 6A per-channel capacity: Headroom for standard 12V devices — door locks (1–2A), proximity readers (0.3–0.5A), auxiliary relays. Prevents undersizing and voltage sag under concurrent load.
- AC Fail, Low Battery, Battery Presence supervision: Three distinct status signals integrate directly into panels that support monitored inputs. You get real-time visibility into mains loss and battery health without after-the-fact discovery.
- Integrated charger: Trickle and fast-charge modes keep backup batteries ready. No separate charger purchase needed; one device handles supply and backup.
Deployment Considerations:
- Battery selection is your responsibility — size it based on your concurrent 12V load and acceptable downtime. A 7Ah SLA is typical for 2–3 mag locks for 1–2 hours; plan ahead or face underpowered backup.
- Fuse rating matters. Undersized fuses nuisance-trip on startup surge; oversized fuses won't protect. Review the datasheet for correct amperage and factor in inrush current from solenoid locks.
- Supervision wiring must go to a monitored panel input. If your system doesn't support supervised 12V inputs, you lose real-time AC fail and low-battery alerts — a significant operational blind spot.
Deploy the AL600ULXPD8 in mid-sized access control installations (4–8 doors) where you need rock-solid fault isolation and battery-backed 12VDC without complexity. Retrofit scenarios and mixed-load warehouse automation setups also benefit from its supervised, fused architecture. Not the right fit if you need higher per-channel current (mag locks on separate supplies) or if your backup requirement exceeds a single-battery capacity.
