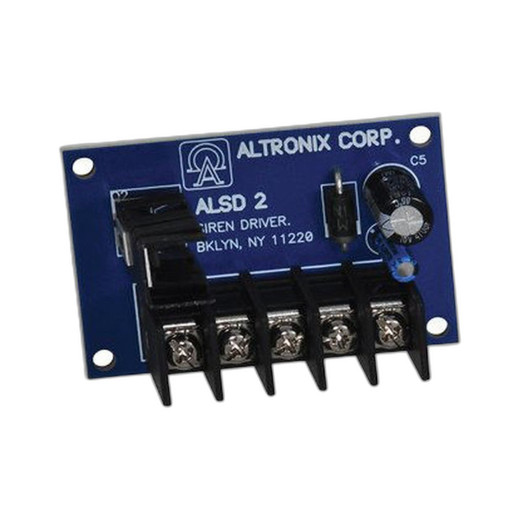

Altronix ALSD2 2-Channel Siren Driver
The Altronix ALSD2 is a compact dual-channel siren driver engineered for distributed alarm, fire, and access control systems where independent or synchronized audio alert control across multiple zones is required. Operating from either 6VDC or 12VDC power supplies, the ALSD2 eliminates the need for separate driver modules per zone — a real advantage when space or power budget is tight in cabinet-constrained installations.
Key Features
- Dual independent output channels: Drive two sirens or alert speakers from a single module. Independent channels mean you can trigger Zone A while Zone B remains silent, or synchronize both for facility-wide alerts — flexibility that saves wiring complexity and panel real estate in multi-zone security designs.
- Universal 6VDC or 12VDC input: Select supply voltage at installation to match your existing power infrastructure. No SKU proliferation, no inventory management headache — one model adapts to your voltage environment.
- Variable current capacity 0.3A to 1.22A: Output current scales with impedance and supply voltage. At 12VDC into an 8Ω load you get maximum drive current; lower voltages or higher impedances reduce current draw. Know this before you spec your speakers — mismatched impedance can severely limit output.
- Compact form factors: Choose between a full-size board (5.25" × 3.25" × 1" / 133.4mm × 82.6mm × 25.4mm) or ultra-compact enclosure (2.75" × 1.8" × 1.1" / 69.85mm × 45.7mm × 27.9mm). The smaller enclosure is a lifesaver when DIN rail or wall-mount space is scarce in retrofit installations.
- Extended operating temperature range -25°C to 55°C: Rated for outdoor equipment cabinets and unheated utility spaces without additional climate control. Freezing temperatures won't kill it; neither will summer heat in a poorly ventilated enclosure. Verify your cabinet's ambient first — this doesn't mean install it in direct sunlight.
- Lifetime Limited Warranty: Altronix backs this unit long-term. Registration and proper installation are typically required — check the documentation for coverage boundaries.
Integration & Compatibility
The ALSD2 integrates directly into alarm control panels, fire alarm annunciators, and access control systems that require external siren driving. Typical wiring includes: positive and negative power from your 6/12VDC supply, ground, and relay or logic-level trigger outputs from your control panel to the ALSD2 input terminals. Confirm your control panel's output voltage and current rating before connecting — most modern panels output 5–12V logic signals, which the ALSD2 accepts. If your panel's output is AC or exceeds 12V, you'll need relay isolation or a step-down converter.
Speaker impedance matching is critical. The ALSD2's datasheet specifies output current across common loads (typically 4Ω, 8Ω, and 16Ω). Mismatched impedance reduces drive current and volume. Verify speaker spec sheets and calculate actual impedance under load — some alarm speakers have impedance curves that shift with frequency.
When to Choose a Different Model
If you require more than two independent siren channels, look for higher-channel-count modules in the Altronix power infrastructure line. If your application demands integrated tone selection (multiple siren waveforms), consider panel-integrated drivers or programmable annunciators that offer on-board tone generation. The ALSD2 is a straightforward current driver — it amplifies your control signal to speaker level but does not generate tones itself.
Frequently Asked Questions
Q: Can I use the ALSD2 with both 6VDC and 12VDC loads on the same unit?
A: No. The ALSD2 is powered by either 6VDC or 12VDC input — you select one voltage at installation. Both channels operate from that same supply voltage. You cannot mix 6V and 12V loads on a single unit.
Q: What happens if I connect an 8Ω speaker to a 16Ω channel?
A: The ALSD2 will drive the 8Ω load, but at higher impedance it will pull less current and deliver less power. Always match speaker impedance to the channel rating specified in the datasheet to ensure rated output.
Q: Is the ALSD2 suitable for outdoor speaker enclosures?
A: The ALSD2 itself is rated -25°C to 55°C and can be installed in outdoor cabinets. The driver board tolerates temperature extremes. Speakers themselves must be IP-rated for outdoor duty — the ALSD2 does not waterproof speaker connections.
Q: Can I parallel both channels to drive a single high-power speaker?
A: Not recommended without engineering review. Paralleling reduces total impedance and can exceed maximum rated current. Consult Altronix technical support or the datasheet for guidance on parallel operation.
Q: Does the ALSD2 include relay isolation or logic-level input?
A: The ALSD2 accepts control inputs from your panel — typically 5–12V logic or dry relay contacts. Confirm your control panel's output specification matches before wiring.
Q: What is the warranty on the ALSD2?
A: Altronix provides a Lifetime Limited Warranty. Registration and adherence to installation guidelines are typically required. Review the warranty certificate in the documentation for specific terms and exclusions.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the Altronix ALSD2 in a dozen multi-zone alarm retrofits, and the dual-channel independence is exactly what you need when you're trying to avoid the sprawl of separate drivers in a cramped cabinet. The ALSD2's variable current output (0.3A to 1.22A depending on impedance and voltage) means you have to know your speaker impedance spec before you power up — mismatch here and you're looking at weak output or thermal stress. The compact enclosure option is a genuine differentiator when space is at a premium.
Technical Highlights:
- Dual independent channels on one module: Eliminates separate driver cards for zones A and B, saving enclosure real estate and power distribution complexity. Each channel is fully independent — trigger one while the other sleeps.
- 0.3A to 1.22A output current range: Current scales with supply voltage and speaker load impedance. At 12VDC into 8Ω you get maximum drive; drop to 6VDC or increase impedance and current falls. Know this before you select speakers.
- Two form factors (5.25" board or 2.75" compact enclosure): The ultra-compact option (69.85mm × 45.7mm × 27.9mm) fits tight retrofit spaces where a full 133.4mm board won't. Choose the footprint that matches your cabinet layout.
- -25°C to 55°C operating range: Unheated outdoor cabinets and summer-heat utility closets won't kill this unit. Confirm your cabinet ambient doesn't exceed 55°C under peak load — passive cooling only.
Deployment Considerations:
- Impedance matching is non-negotiable. Speaker impedance curves vary with frequency — pull the spec sheet and verify actual load before final wiring. A 16Ω speaker driven at 8Ω rating will reduce current and volume significantly.
- The ALSD2 accepts logic-level or relay contact inputs from your control panel. Confirm panel output voltage (typically 5–12V) is compatible. AC or high-voltage triggers require isolation — this unit is designed for DC control signals.
- No tone generation on board. The ALSD2 is a current amplifier only. If you need multiple siren waveforms (yelp, wail, steady), your control panel or annunciator must provide tone selection; the ALSD2 simply drives the selected tone to the speaker.
Deploy the ALSD2 when you need proven, straightforward dual-channel siren control in retrofit or new-build alarm systems where cabinet space or power-supply consolidation is a real constraint. It's not a feature-rich annunciator — it's a solid current driver that does one job well and stays out of your way.
