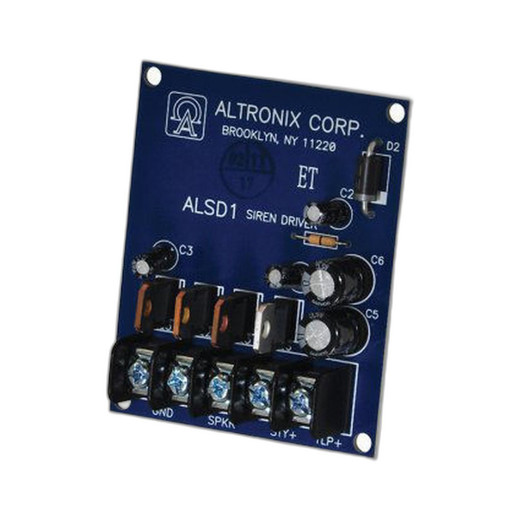

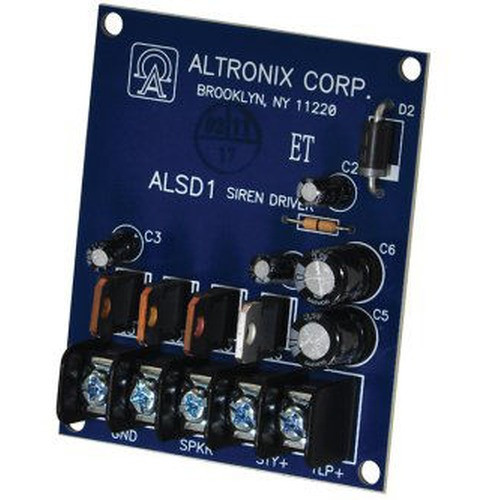

Altronix ALSD1 2-Channel Siren Driver
The Altronix ALSD1 is a board-level dual-channel siren driver engineered for 6VDC or 12VDC security systems. This device independently controls two audio outputs with selectable yelp and steady tone modes, making it a core component in alarm annunciation installations for access control, perimeter security, and multi-zone alerting. The compact enclosure fits into most security cabinets or wall-mounted configurations without consuming excessive real estate.
Key Features
- Dual Voltage Input (6VDC or 12VDC): Flexibility to integrate into existing low-voltage security infrastructure running either standard voltage. No separate models required — a single device adapts to your power architecture.
- Two Independent Output Channels: Control two sirens, horns, or audio devices separately rather than in lockstep. Each channel operates autonomously, enabling zone-specific or staggered alarm signaling without additional control boards.
- Selectable Tone Modes (Yelp and Steady): Switch between yelp (intermittent chirp) for non-emergency alerts and steady tone for critical alarms. Tone selection simplifies user perception of threat level without manual wiring changes.
- Variable Current Output (0.5A to 1.8A): Output current depends on input voltage and speaker impedance. At 12VDC into an 8Ω load, the ALSD1 delivers roughly 1.8A; at 6VDC the same load sees proportionally lower current. This voltage-dependent behavior means you must size speakers and wiring to your selected supply voltage — overloading a 6VDC supply with 12VDC-rated speakers will cause thermal stress or shutdown.
- Wide Operating Temperature Range (−25°C to 55°C): Rated for outdoor equipment shelters, basement vaults, and climate-controlled security rooms. Below −25°C or above 55°C, performance is not guaranteed; for extreme environments (−40°C+), confirm thermal design with Altronix technical support before deployment.
- Compact Enclosure (2.5″ × 3″ × 1.125″): Fits into tight DIN-rail or shelf space in control cabinets. Board itself measures 5.25″ × 3.25″, allowing internal mounting within larger enclosures or stand-alone deployment in security closets without bulky external housings.
Typical Deployment Scenarios
The ALSD1 suits multi-zone alarm annunciation where different areas require independent audio cues — for example, a warehouse entry zone with one siren and a perimeter zone with another, each capable of different tones. Access control systems benefit from the ALSD1's ability to sound an alert at the turnstile (steady tone) while a secondary zone remains silent until a second breach triggers yelp mode. In smaller installations with limited cabinet space, the compact form factor and board-level design reduce footprint compared to standalone driver enclosures.
Integration Notes
The ALSD1 is a passive driver — it requires an external control signal (typically 12V logic from a security panel or access controller) to trigger siren output. It does not generate control signals or provide zone logic. Confirm your alarm panel or access control system outputs a compatible trigger voltage (usually 12V relay closure or logic high) before integrating the ALSD1. Wiring must match the selected input voltage: 6VDC supply requires 6VDC-rated speakers or piezo devices; 12VDC supply works with 12VDC devices. Mixing voltages will degrade audio output or damage connected equipment.
Frequently Asked Questions
Q: What is the maximum current output of the ALSD1?
A: Maximum current varies between 0.5A and 1.8A depending on input voltage selection and speaker impedance. At 12VDC into an 8Ω load you approach 1.8A; lower voltage or higher impedance reduces available current. Check your siren or horn's power rating (typically listed in watts or amperes) to confirm compatibility before purchase.
Q: Can the ALSD1 run on 6VDC and 12VDC simultaneously?
A: No. You select either 6VDC or 12VDC at configuration time, and the device operates on that voltage only. The selection affects output current, tone volume, and connected device compatibility. Switching voltage requires physical reconfiguration.
Q: Does the ALSD1 include speakers or sirens?
A: The ALSD1 is a driver only — it amplifies and switches control signals to trigger external sirens, horns, or piezo devices. You must source compatible speakers separately and wire them to the output terminals.
Q: What control signal does the ALSD1 require to trigger output?
A: External control (typically 12V logic from your security panel or access controller) drives siren activation. The ALSD1 does not generate its own zone logic or detection signals — it responds to an incoming trigger voltage. Verify your alarm panel outputs a compatible logic signal (usually relay closure or 12V active-high) before integrating.
Q: Is the ALSD1 suitable for outdoor perimeter alerting?
A: Yes, the wide operating temperature range (−25°C to 55°C) supports outdoor equipment shelters and exposed mounting. However, the enclosure itself (2.5″ × 3″ × 1.125″) is not sealed or IP-rated for direct weather exposure. Mount the ALSD1 inside a weatherproof cabinet, control room, or equipment shelter, and route output wiring through conduit to external sirens.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix ALSD1 is a straightforward siren driver for integrators who need independent dual-channel audio control in low-voltage security systems. Its flexibility across 6VDC and 12VDC supplies, combined with selectable yelp and steady tone modes, makes it a reliable workhorse in multi-zone alarm networks. However, the voltage-dependent current output and requirement for external control signals mean you must plan your speaker impedance and control logic carefully before mounting the board.
Technical Highlights:
- Voltage-Dependent Current Output (0.5A–1.8A): At 12VDC the ALSD1 can deliver up to 1.8A into an 8Ω speaker; drop to 6VDC and available current falls proportionally. This means your siren selection and supply voltage are tightly coupled — a 12VDC-rated piezo may underperform on 6VDC, and oversizing to a low-impedance load risks thermal shutdown on the driver side.
- Compact Board-Level Footprint (5.25″ × 3.25″): Fits inside standard DIN-rail enclosures or wall-mount cabinets without requiring its own standalone housing, saving cabinet depth and installation labor in space-constrained security rooms.
- Independent Channel Control: Each of the two outputs operates autonomously, allowing you to trigger different zones with different tones simultaneously — critical for alarm hierarchies where entry violations sound yelp but perimeter breaches sound steady tone.
Deployment Considerations:
- The ALSD1 is passive — it requires an external 12V logic signal from your alarm panel or access controller to activate. Confirm your panel outputs a compatible trigger before design; if your panel uses a different logic standard (24V, dry relay closure), you'll need a signal converter or separate relay interface.
- Temperature range tops out at 55°C; outdoor mounting requires a climate-controlled enclosure. Direct sun exposure or proximity to heat sources can push the driver toward thermal derating — mount inside a cabinet with ventilation or confirm the ambient environment stays within spec.
Deploy the ALSD1 in warehouse or access control systems where you need two independent alarm zones with different audio cues and tight cabinet space. It's not for single-zone simple alerting (overkill for that) and not for high-power external sirens requiring 24V or 48V supplies — scope it where dual-zone low-voltage control is the core requirement.
