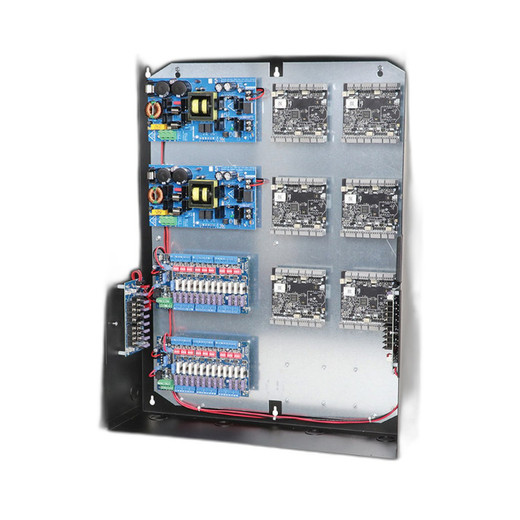

Altronix T2PDK77F24S 24VDC 20A Power Distribution System
The Altronix T2PDK77F24S is a fused power distribution module engineered for professional security and access control installations. This unit combines regulated 24VDC output with supervised relay-controlled distribution across 20 independent channels, enabling integrators to manage auxiliary device power with centralized oversight and redundancy planning.
Overview
The T2PDK77F24S delivers 20 amps of continuous 24VDC output across 20 individual fused distribution channels. Each output is independently protected and relay-supervised, providing granular load management and circuit-level diagnostics. The module integrates seamlessly into larger power architectures where supervised distribution and redundant backup are required. Built-in 24-hour battery backup capability ensures critical loads remain powered during utility outages, making it suitable for access control, door strike systems, and auxiliary security circuits in mid-to-large installations.
Key Features
- 20-Amp Total Output: Rated for 20A maximum continuous draw across all 20 distribution channels
- 20 Independently Fused Outputs: Each channel equipped with individual fuse protection and relay supervision for circuit-level isolation and diagnostics
- 24VDC Operation: Regulated output voltage suitable for standard access control and auxiliary device loads
- Relay-Supervised Channels: Each output monitored for open or shorted load conditions, enabling real-time fault reporting to connected control panels
- 24-Hour Battery Backup: Integrated battery backup system maintains power to designated channels during AC loss, critical for life-safety and access control continuity
- Compact Board Design: Space-efficient layout simplifies integration into enclosures and cabinet installations
- Field-Installable Configuration: Modular relay and fuse design allows on-site customization for specific load requirements
- UL-Listed Construction: Meets regulatory requirements for professional security installations
Integration & Compatibility
The Altronix T2PDK77F24S integrates with standard 24VDC control panels, access control systems, and alarm platforms that support relay-supervised auxiliary power distribution. The module functions as a power expansion and distribution layer, allowing a primary control panel to supervise and control secondary circuits without direct current draw on the panel itself. This topology is particularly valuable in multi-door access systems, distributed intercom networks, and installations requiring circuit-level fault isolation.
Because each channel is relay-controlled and fused independently, integrators can assign specific outputs to door strikes, magnetic locks, auxiliary solenoids, or status indicator circuits, with per-channel status reporting back to the control panel. The 24-hour battery backup is configurable, permitting selective assignment of battery-backed outputs to life-safety or priority access paths.
Applications
Ideal for security and access control integrators deploying mid-sized to large installations where centralized power distribution and per-circuit supervision are required. Typical applications include multi-door access control systems, emergency egress unlock circuits, auxiliary intercom power, alarm device supply, and distributed strike/lock control in commercial and institutional facilities.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
During planning for a mid-sized access control retrofit, I specified the Altronix T2PDK77F24S for its ability to distribute 20 amps across 20 independently supervised channels. The relay-based architecture eliminated the need for discrete panel outputs, allowing a single control panel to manage door strikes, mag locks, and auxiliary circuits with built-in fault detection on each channel.
Technical Highlights:
- 20-Amp Total Output / 20 Fused Channels: Allows load balancing and per-circuit isolation without overloading a single control panel output or power supply
- 24-Hour Battery Backup: Enables selective assignment of battery-backed circuits to comply with life-safety and emergency access requirements
- Relay Supervision: Real-time open/short detection on each channel provides circuit diagnostics and helps identify load faults before they cascade
Deployment Considerations:
- Plan battery capacity ahead of time if multiple high-draw circuits (mag locks, solenoids) require 24-hour backup coverage; battery sizing depends on cumulative load
- Assign mission-critical circuits (emergency unlock, egress) to battery-backed outputs; reserve non-supervised outputs for low-priority auxiliary loads if needed
- Verify that the control panel relay outputs can handle the T2PDK77F24S relay coil current; most standard panels support this configuration without issue
The T2PDK77F24S is a workhorse power distribution solution for integrators who need reliable, supervised per-channel control without adding complexity to the primary panel. It scales well across 10- to 50-door installations and integrates cleanly into cabinet-based architectures.
