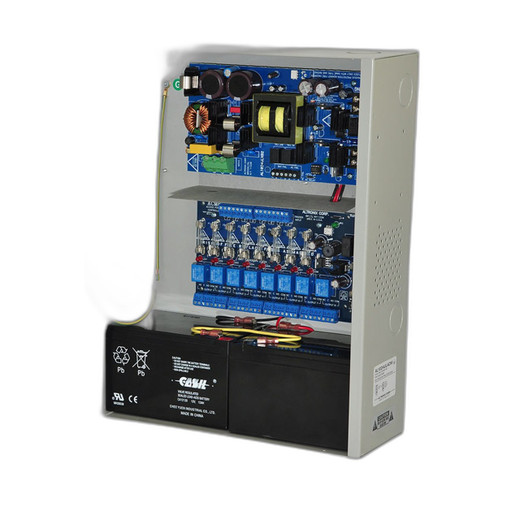

Altronix AL1024ULACMCBR 10A 8-Output Access Power Supply

Altronix AL1024ULACMCBR 10A 8-Output Access Power Supply

The Altronix AL1024ULACMCBR is a UL-listed 10A access control power supply designed for distributed multi-output installations requiring independent voltage channels. This model delivers selectable 12VDC or 24VDC output with capacity to support up to 8 PTC-protected circuits, making it suitable for mid-scale access control systems, door locks, and auxiliary security device power distribution.

Key Features

• Dual voltage output: 12VDC or 24VDC selectable configuration
• 10A total capacity with 8 independent PTC-protected outputs
• 4A maximum output at 12VDC; 3A maximum at 24VDC per channel capability
• UL Listed for safety-critical applications
• Red powder-coated steel enclosure for corrosion resistance
• Individual circuit protection via PTC devices prevents cascade failures
• Lifetime Limited Warranty coverage

Applications

• Multi-door access control installations with independent circuit requirements
• Electric strike and magnetic lock power distribution in medium-density facilities
• Auxiliary device power supply for request-to-exit sensors and door status monitors
• Distributed power in retrofit security projects requiring minimal wiring consolidation
• Systems requiring simultaneous 12VDC and 24VDC output channels

Specifications

• Model: AL1024ULACMCBR
• Output Voltage: 12VDC or 24VDC selectable
• Maximum Current: 10A @ 12VDC; 4A @ 12VDC per output; 3A @ 24VDC per output
• Output Circuits: 8 PTC-protected independent outputs
• Certification: UL Listed
• Enclosure: Red powder-coated steel
• Warranty: Lifetime Limited Warranty
