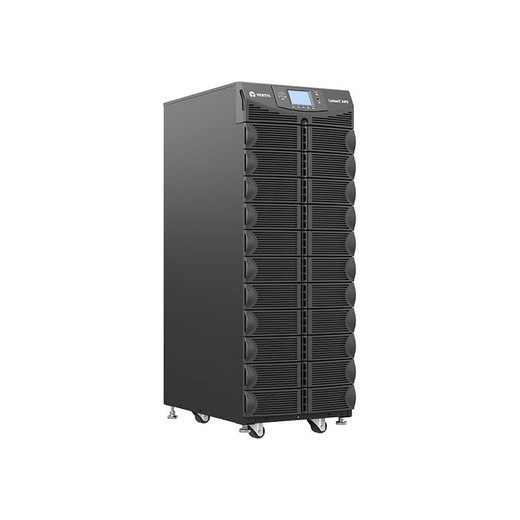

Vertiv AL3B0NHVGNNXLKB 10KVA/9.0KW 208VAC LLG in 208/120VAC OUT 8MIN Runtime - HOT
Overview
The Vertiv AL3B0NHVGNNXLKB is a 10kVA/9.0kW uninterruptible power supply (UPS) designed for critical infrastructure requiring stable power. It accepts 208VAC input via a 3-wire (L-L-G) connection and provides 208/120VAC output, ensuring compatibility with standard IT equipment. This unit is ideal for protecting sensitive electronics in server rooms, network closets, or industrial control environments where consistent power is paramount. Its 8-minute runtime at full load supports graceful shutdowns during brief outages.
Compatibility
This UPS is engineered for 208VAC input systems. It is suitable for integration with standard rack-mounted IT equipment, network switches, servers, and other devices that operate within the 208/120VAC output range. Its 3-wire (L-L-G) input wiring is standard for many commercial and industrial power distribution units.
Installation Notes
The Vertiv AL3B0NHVGNNXLKB operates within a temperature range of 0°C to 40°C (32°F to 104°F). Ensure adequate ventilation around the unit, as it generates heat during operation. The physical dimensions are 42 inches in height, 17 inches in width, and 32 inches in depth, with a weight of 592lbs, requiring careful planning for placement and installation. It supports N+1 power configurations up to 15kVA/13.5kW, allowing for system redundancy.
What's in the Box
- 1x Vertiv AL3B0NHVGNNXLKB UPS
