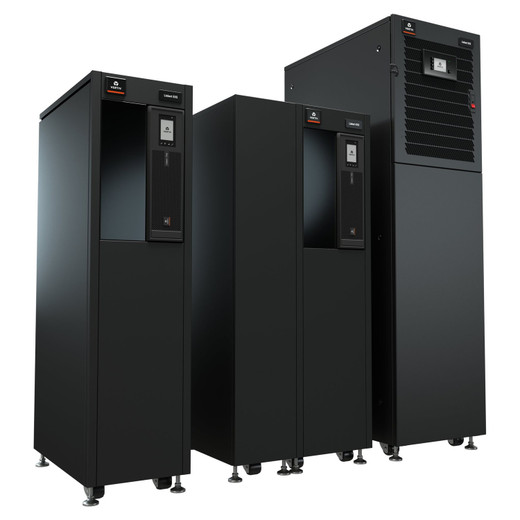

Vertiv EXS 10KVA UPS with Extended Runtime Internal Vrla Battery and Is-unity-dp Networ - EXS10KXRN

Vertiv EXS10KXRN 10KVA Double Conversion Online UPS with Extended Runtime

Overview

The Vertiv EXS10KXRN is a 10KVA (10kW) monolithic, three-phase double conversion online UPS designed for server rooms, network closets, and storage infrastructure where zero transfer time and clean power are non-negotiable. Unlike standby or line-interactive designs, the EXS10KXRN operates in continuous double conversion mode — incoming AC is rectified to DC, then re-inverted to a pure sine wave — meaning the connected load never sees raw utility power directly. The result is 0 nanoseconds transfer time during a utility event, which matters when your servers, storage arrays, or network gear cannot tolerate even a brief voltage sag.

At 893 lbs and hardwired input/output, this is a permanently installed, room-critical power appliance — plan your infrastructure accordingly before deployment.

Key Features

• Double Conversion with 0 ns Transfer Time: The inverter is always online, so a utility dropout, brownout, or voltage spike causes zero interruption to the load. For servers, NAS arrays, and switches that require continuous clean AC, this eliminates the brief gap that kills standby-design UPS units during fast transients.
• 10KVA / 10kW at Unity Power Factor: The output power factor of 1.0 means the full 10kW of real power is available — no derating for reactive loads. Modern servers with active PFC power supplies draw near-unity loads, so you get the full nameplate capacity on today's server hardware.
• 30-Minute Full-Load Runtime / 1.1-Hour at Half Load: With 64 internal valve-regulated lead acid (VRLA) batteries, the EXS10KXRN delivers 30 minutes at full 10kW and 1.1 hours at 5kW. That runtime window is long enough to execute a clean orchestrated shutdown or bridge a short utility outage without generator involvement.
• Three-Phase Hardwired Input (208/120V or 220/127V, 4W+G Wye): Input accepts 166–249V AC across the range, drawing up to 37A at 230V nominal. The hardwired design eliminates connector failure points under sustained current — appropriate for permanently installed critical infrastructure, not rack-and-roll deployments.
• Pure Sine Wave Output: The inverter generates a true sine wave at 220V or 127V AC output. Active PFC power supplies in servers and networking gear require a sine wave; modified sine wave UPS units can cause those PSUs to run hot or trip fault protection. The EXS10KXRN avoids that failure mode entirely.
• IS-Unity-DP Intellislot Network Management Card (Included): The IS-Unity-DP card ships installed in the Intellislot bay, providing network-based UPS monitoring, alerting, and shutdown coordination out of the box. No separate card purchase required. Additional external environmental sensors can be connected for temperature and humidity monitoring.
• Comprehensive Protection Modes: Active protection covers overload, under-voltage, brownout, over-temperature, output over-voltage, output over-current, and no-load conditions — a full coverage set for an always-on installation.
• ENERGY STAR 2.0 Certified: The efficiency certification matters in 24/7 installations where UPS losses translate directly to operating cost and cooling load. ENERGY STAR 2.0 compliance indicates the unit meets defined efficiency thresholds at partial and full load.
• Regulatory Certifications: Listed to UL 1778 5th Ed. and CSA 22.2 No. 107.3, FCC Part 15 Class A, ANSI C62.41 Cat. A Level 3, IEC 62040-1 and IEC 62040-3, and ISTA 1A. UL listing is the baseline requirement for data center and commercial building insurance compliance in North America.
• RoHS 2 and WEEE Compliant: Meets EU hazardous substance restrictions and waste disposal directives — relevant for organizations with environmental compliance requirements or EU footprint.

Integration & Compatibility

The EXS10KXRN is sized for network workstations, network closets, servers, electronic devices, and storage systems operating on a 208/120 VAC or 220/127 VAC three-phase 4W+G Wye source. The hardwired connection requires a licensed electrician for installation — factor this into commissioning timelines. The included IS-Unity-DP Intellislot card supports external environmental sensor connectivity, enabling temperature and humidity monitoring at the UPS level without additional management hardware. The Intellislot architecture also supports future card upgrades if connectivity requirements change.

At 58 dB(A) acoustic output, this unit is appropriate for dedicated equipment rooms rather than open office deployments. The monolithic form factor and 893 lb weight require floor load verification and forklift or pallet jack access during installation.

What's in the Box

• 1x EXS 10000VA Monolithic UPS
• 1x Quick Start Guide (Install & Start-up)
• 1x Safety Instruction Booklet
• 1x IS-Unity-DP Intellislot Communication Card (pre-installed)

Frequently Asked Questions

Q: What is the transfer time on the EXS10KXRN during a utility outage?

A: Zero nanoseconds. The EXS10KXRN uses double conversion online topology, meaning the inverter is always active and the connected load is never directly on utility power. There is no transfer switching event during a utility dropout.

Q: What input power source does the EXS10KXRN require?

A: It requires a 208/120 VAC or 220/127 VAC three-phase, 4-wire plus ground (4W+G) Wye source. Input voltage range is 166–249V AC at 230V nominal, with a 37A input current draw. The connection is hardwired — no plug-and-play connector.

Q: How long will the EXS10KXRN run on battery at full load?

A: 30 minutes at full 10kW load, and approximately 1.1 hours (66 minutes) at half load (5kW). The unit contains 64 internal valve-regulated lead acid (VRLA) batteries.

Q: Does the EXS10KXRN include a network management card?

A: Yes. The IS-Unity-DP Intellislot Communication Card ships pre-installed. It provides network-based UPS monitoring, alerting, and shutdown coordination. External environmental sensors can also be connected for temperature and humidity monitoring.

Q: Is the EXS10KXRN ENERGY STAR certified?

A: Yes, the EXS10KXRN carries ENERGY STAR 2.0 certification, indicating it meets defined efficiency thresholds at both partial and full load — relevant for 24/7 data center deployments where UPS losses affect operating costs and cooling requirements.

Q: What safety certifications does the EXS10KXRN hold?

A: The unit is sUL/cUL listed to UL 1778 5th Edition and CSA 22.2 No. 107.3, FCC Part 15 Class A, ANSI C62.41 Cat. A Level 3, IEC 62040-1, IEC 62040-3, and ISTA 1A. It also complies with RoHS 2 and WEEE directives.

James Everett

The EXS10KXRN sits in a specific sweet spot for three-phase critical power: 10KVA at unity power factor with an output power factor of 1.0, which means the full 10kW nameplate is usable on modern server loads — no derating calculation required. That, combined with the always-on double conversion topology and 0 ns transfer time, makes this a defensible choice for infrastructure that cannot tolerate even brief interruptions.

Technical Highlights:

• Unity Output Power Factor (1.0): Full 10kW of real power delivered to the load — modern blade servers and high-density switches draw near-unity loads, so you get the full nameplate capacity without derating.
• 30-Minute Full-Load / 1.1-Hour Half-Load Runtime: 64 internal VRLA batteries provide enough runway for a controlled shutdown sequence or generator start-and-transfer at full 10kW, which covers most data center continuity policies without external battery cabinets.
• IS-Unity-DP Card Pre-Installed: Network management ships in the box — no accessory card purchase, no day-two configuration scramble. The Intellislot architecture means you can swap or upgrade the card later if your management platform changes.

Deployment Considerations:

• At 893 lbs, floor load capacity must be verified before placement — this is not a rackmount unit and requires pallet jack or forklift access. Hardwired three-phase input also mandates a licensed electrician for final connection; plan commissioning lead time accordingly.
• The minimum operating temperature listed is 32°F (0°C) — if your equipment room drops below freezing during an HVAC failure, battery performance and equipment ratings will be at their limits. This is worth noting for facilities in cold climates with intermittent heating.

The EXS10KXRN is a strong fit for a dedicated equipment room or small data center running a mixed server and storage load on three-phase power, where a single monolithic UPS is preferable to a modular stack and where the included network management card eliminates a line item from the bill of materials.
