Overview

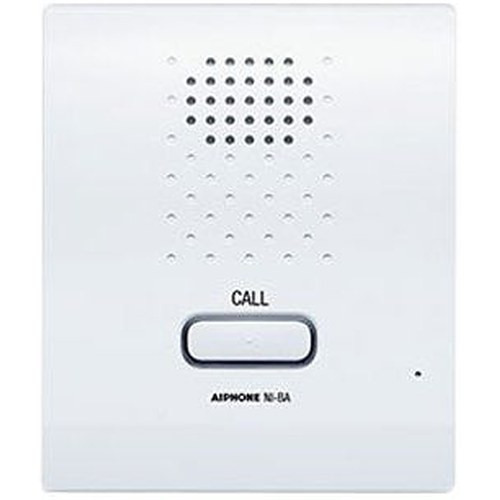

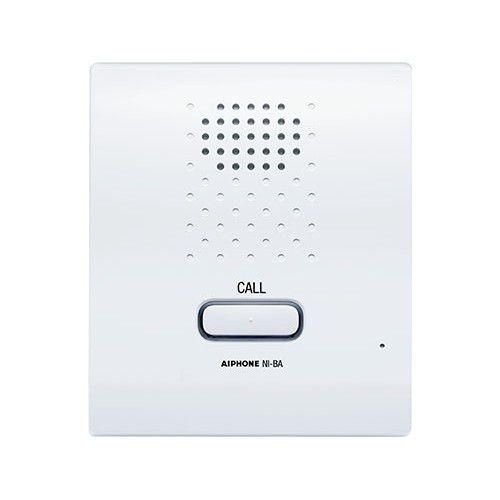

The Aiphone NI-BA is a surface-mounted desktop substation purpose-built for two-way hands-free communication within Aiphone intercom systems. This compact unit integrates with NIM-series master stations to enable call-in and call-out functionality across facility networks. The NI-BA delivers reliable voice transmission over distances up to 650 feet when wired with Aiphone #821803 3-conductor shielded cable (18AWG), making it practical for multi-building campuses, large office complexes, and institutional deployments where distributed communication points are required without extensive in-wall infrastructure.

Built with durable plastic construction, the NI-BA mounts directly to walls or desks, eliminating the need for cavity preparation or conduit runs—a real advantage during retrofits or office reorganizations. The unit operates as a slave station within the larger Aiphone system architecture, requiring connection to either an NIM-20B (20-call capacity) or NIM-40B (40-call capacity) master station for full functionality.

Key Features

• Two-Way Hands-Free Communication: Full duplex audio exchange without requiring a handset means multiple users can participate in facility announcements or point-to-point calls simultaneously. This reduces call-answering bottlenecks in reception areas and administrative hubs where several staff may need to monitor incoming traffic.
• Surface Mount Flexibility: Mounts directly to wall or desk surfaces without in-wall cavity preparation. This translates to faster deployment in leased spaces, temporary installations, or facilities where structural modifications are prohibited or costly.
• Extended Transmission Range (650 feet): Operates reliably up to 650 feet when wired with Aiphone #821803 3-conductor shielded cable at 18AWG gauge. This distance specification means you can cover multi-story office buildings or sprawling warehouse facilities with a single master station and multiple substations without signal degradation or audio quality loss.
• Built-In Microphone: Integrated microphone eliminates the need for external audio peripherals, reducing BOM complexity and simplifying installation. Users can speak into the unit directly without handset pickup.
• Master Station Compatibility: Functions with either the NIM-20B or NIM-40B master station, both offering call routing, intercom logic, and system-wide power distribution. The choice between 20-call and 40-call capacity depends on your expected simultaneous call volume—larger multi-zone facilities typically require the 40-call variant.
• Plastic Enclosure: Weather-resistant housing suitable for indoor installations in educational institutions, healthcare facilities, corporate offices, and multi-tenant buildings. The plastic construction resists corrosion and is lighter than metal alternatives, simplifying mounting on drywall or lightweight panels.

Integration & Compatibility

The NI-BA integrates into Aiphone's NIM intercom ecosystem as a secondary communication node. System configuration requires a master station (NIM-20B or NIM-40B) to manage call routing, intercom logic, and power distribution. Connection uses three-conductor, overall-shielded cable (Aiphone #821803) to maintain signal integrity over long runs and reject noise in electrically noisy environments. The 650-foot distance specification assumes 18AWG conductor gauge; longer runs or higher gauge wire (smaller diameter) will reduce effective range proportionally.

Multiple NI-BA substations can be networked within a single system to create department-level or floor-level communication hubs. The master station manages simultaneous calls, call queuing, and system-wide announcements across all connected substations. For facilities requiring outdoor extensions or additional entry control, supplementary door stations (such as the NI-JA audio door station) and corridor call lights (NIR-4, NIR-31, NIR-32, NIR-34 families) expand the intercom network beyond desktop points.

Cabling & Installation

Use Aiphone #821803 three-conductor overall-shield cable for all substation connections. This cable type provides adequate noise rejection in electrically noisy environments (factories, data centers, medical equipment areas) and supports the full 650-foot transmission specification. Unshielded or undersized cable will degrade audio clarity, introduce hum, and reduce reliable operating distance significantly—a common deployment mistake that cascades into callback support costs.

Frequently Asked Questions

Q: Can the Aiphone NI-BA be installed outdoors?

A: No. The plastic enclosure is rated for indoor use only. For outdoor extensions, use the NI-JA audio door station or equivalent outdoor-rated units in the Aiphone catalog.

Q: What happens if I use cable longer than 650 feet?

A: Audio signal quality will degrade. Cable resistance increases with distance, reducing voltage at the substation and introducing noise. If you exceed 650 feet, signal conditioning or intermediate relay stations may be required—consult system design specifications.

Q: Does the NI-BA work with other intercom brands?

A: No. The NI-BA is designed exclusively for Aiphone NIM-series master stations. It is not compatible with third-party intercom systems or non-Aiphone master stations.

Q: Can I daisy-chain multiple NI-BA units without a master station?

A: No. The NI-BA operates only as a slave station. A master station (NIM-20B or NIM-40B) is required to provide power, manage call logic, and enable communication between substations.

Q: What is the maximum number of NI-BA units I can connect to one master station?

A: The number of substations is limited by the master station's call capacity and system power budget. The NIM-20B supports up to 20 simultaneous calls, while the NIM-40B supports 40. Consult Aiphone system design documentation or a system integrator for your specific deployment.

Q: Can I use standard unshielded twisted pair (UTP) cable instead of Aiphone #821803?

A: Not recommended. UTP lacks the overall shield and is not rated for the 650-foot range specification. The Aiphone #821803 shielded cable is required to maintain signal integrity and meet audio performance standards.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Aiphone NI-BA solves a specific integration problem: you need distributed voice communication points across a large facility without running dedicated conduit or adding complexity to your master station architecture. The NI-BA works best as a secondary communication node—a reception desk substation, departmental hub, or floor-level call point—rather than as a primary control interface. Its surface-mount design and 650-foot transmission range make it practical for retrofit deployments where cavity walls or cable trays are unavailable or too expensive to install.

Technical Highlights:

• 650-Foot Transmission Range: When wired with Aiphone #821803 shielded cable at 18AWG, the substation reliably communicates across multi-building campuses or large warehouse facilities. Undersized or unshielded cable cuts this range significantly—a common field mistake that triggers callbacks and system redesigns.
• Hands-Free Dual-Channel Audio: Full duplex operation means simultaneous speak-and-listen without handset pickup. In high-traffic reception areas, this reduces call-answer latency and allows multiple staff to monitor facility announcements without blocking incoming calls.
• Surface Mount (No Cavity Required): Mounts directly to drywall, desk surfaces, or panels. This eliminates the cost and schedule impact of in-wall installation—a real differentiator during office retrofits or temporary deployments in leased space.

Deployment Considerations:

• Master Station Dependency: The NI-BA has no independent operation mode. Every substation requires power and call logic from the master station. If your master station fails or loses power, all connected substations go offline. Plan for master station redundancy or backup power if continuity is mission-critical.
• Cable Specification Compliance: Use only Aiphone #821803 shielded cable. Standard UTP or undersized conductors will degrade signal quality and reduce range. This is not a cost-optimization point—field substitutions always cost more in remediation.
• Slave-Station Role: The NI-BA cannot route calls or manage system logic independently. It is purely a communication endpoint. If you need call control or intercom logic, you must upgrade to a master station or intermediate control unit.

Deploy the Aiphone NI-BA in multi-zone office complexes, educational campuses, or healthcare facilities where you need reliable hands-free communication at distributed points without complex wiring or expensive structural modifications. It is not a fit for outdoor perimeter monitoring, extreme temperature environments, or facilities requiring call-management intelligence at the substation level—those require different master-station variants or supplementary door-station units.
