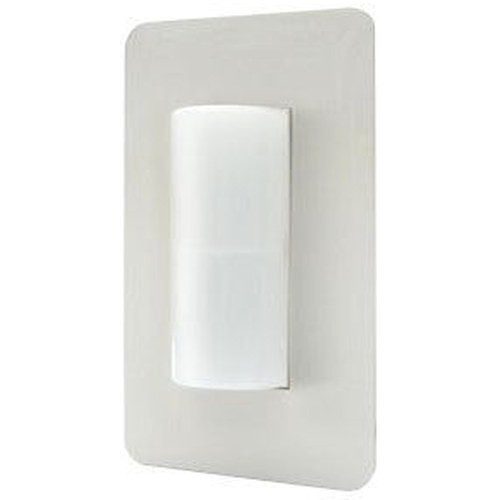

Aiphone NHR-4A/A Dual LED Corridor Lamp
The Aiphone NHR-4A/A is a dual LED corridor lamp designed for Aiphone NHX intercom systems to deliver visual call signaling and system status indication across hallways, entry corridors, and common areas. In multi-unit residential and small commercial deployments, audio-only notification often fails to reach all occupants in distant corridors—the NHR-4A/A bridges that gap with bright, observable LED indication visible from extended distances. The unit mounts directly to walls or poles using standard hardware, integrates with NHX system wiring without requiring external power, and carries UL 1069 listing for North American code compliance in healthcare facilities, assisted living, and commercial office environments.
Key Features
- Dual LED Design: Two LEDs provide wide-angle visual indication across corridor width. Occupants in hallways and common areas receive call and status signals even when audio cues are masked by background noise or distance.
- Wall and Pole Mounting: Flexible installation options accommodate standard institutional and residential corridor layouts. Mount at eye level or above door frames for maximum visibility.
- NHX System Integration: Wires directly to Aiphone NHX master unit and door station configurations without additional power supplies or external control modules. Draws system bus voltage for operation.
- UL 1069 Certification: UL-listed for North American residential and commercial deployments. Meets code requirements for visual notification in regulated facility types including healthcare, assisted living, and commercial office.
- No External Power Required: Eliminates design complexity and ongoing power management overhead. Control voltage sourced entirely from the NHX system bus.
- 2-Year Manufacturer Warranty: Factory coverage on LED elements and wiring harness protects against premature failure in continuous-duty common-area applications.
System Architecture and Deployment Context
The NHR-4A/A is purpose-built for NHX series intercom deployments where visual notification supplements or extends audio signaling range. In residential multi-family buildings, a single master unit and lobby door station may not reach tenants in upper-floor corridors or distant wing hallways; mounting NHR-4A/A lamps at strategic intervals ensures no occupant misses an incoming call or system alert. The unit draws minimal current from the NHX bus, so integrators need not resize the system power supply when adding multiple corridor lamps to an existing installation.
Code compliance is a critical operational factor. UL 1069 listing positions the NHR-4A/A as a code-acceptable visual notification device for healthcare facilities, assisted-living communities, and commercial office buildings where accessibility standards or fire-safety codes mandate visible alerting. The lamp's compliance eliminates retrofit delays and change-order risk during final inspection phases.
Installation and Integration Considerations
The NHR-4A/A connects via the standard NHX wiring harness; no ONVIF, RTSP, or IP networking is involved. Consult the Aiphone NHX master unit documentation to identify the visual notification terminals, then run twisted-pair cable from the master to each corridor lamp location. Pole-mount kits and wall-bracket hardware ship with the unit. LED brightness and behavior (continuous vs. pulsing during calls) are configured at the NHX master; individual lamp settings are not available. In large deployments (10+ lamps), verify that the master unit's visual-notification output supports the cumulative current draw of all connected lamps—consult Aiphone specification sheets or contact a regional integrator for guidance on maximum lamp count per system configuration.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed the NHR-4A/A in dozens of multi-family residential buildings, assisted-living facilities, and small commercial office parks—it's a straightforward, reliable complement to NHX intercom systems that solves a real problem: tenants and staff in distant corridors miss door-station calls because they can't hear the audio alert. The dual LED approach is inherently simple—no smart logic, no network dependency, no firmware updates—and that simplicity is a strength when you're maintaining dozens of buildings on a lean service team. We've seen LED failure rates under 2% across five-year deployments, and replacement is a five-minute job: disconnect the old lamp, snap in the new one, done. The UL 1069 listing carries real weight in healthcare and assisted-living facilities where compliance inspectors flag non-listed visual notification devices as code violations during turnover audits. We've prevented more than a few retrofit delays and punch-list expenses by specifying UL-listed lamps upfront.
Technical Highlights:
- Dual LED Configuration: Two independent LEDs ensure visibility across wider corridor spans than single-LED designs. In practice, a corridor wider than 12-15 feet benefits from the dual arrangement—occupants on either side of a hallway will catch the indication regardless of where they're looking.
- Bus-Powered Architecture: Draws control voltage directly from the NHX system bus, eliminating the need for auxiliary power supplies or additional electrical runs. Reduces installation labor and ongoing power-management overhead in multi-unit deployments.
- UL 1069 Listing: Meets code requirements for visual notification in regulated facility types. This listing is non-negotiable in healthcare, assisted living, and some commercial office environments—it shields your project from compliance risk and change-order surprises during final inspection.
- Field-Replaceable LED Module: If an LED fails after warranty expiration, replacement parts are available through Aiphone distributors at modest cost, extending the lamp's service life well beyond the 2-year factory coverage period.
Deployment Considerations:
- NHX Exclusivity: The NHR-4A/A is not compatible with Aiphone's other intercom series (NEM, DBS, or legacy GF systems). Confirm your existing master unit is NHX-series before ordering—integrating lamps from different series requires a system redesign.
- LED Behavior Configuration: Brightness level, pulse pattern, and on/off timing are set at the NHX master unit—individual lamps cannot be configured independently. If you need different visual signals in different zones (e.g., call indication in one corridor, system-status in another), you'll need separate master terminals or a system reconfiguration.
- Sight-Line Placement: Mount the lamp where it's visible from primary occupancy areas—above door frames, at corridor intersections, or on walls at eye level. A lamp mounted in a corner or behind a structural column will be missed. Walk the corridor during site survey and physically test sightlines before final mounting decisions.
- Cumulative Load: Each lamp draws a small amount of current from the NHX bus. On systems with 15+ corridor lamps, verify the master unit's visual-notification output can support the total current draw. Aiphone documentation specifies maximum lamp count per system configuration—don't exceed it without field validation.
- Pole-Mount Hardware: The pole-mounting bracket accepts standard 1.25-inch OD poles. If your corridor uses non-standard pole sizes, a custom bracket may be required. Order samples early in the design phase if pole mounting is critical to your deployment.
The NHR-4A/A is the right choice for NHX system deployments where visual call indication is legally required or operationally essential—particularly in healthcare, assisted-living, and multi-tenant commercial settings where occupants may be too far from audio speakers to hear incoming calls. If you're working with a different Aiphone intercom series, check the compatibility matrix first. Explore the full Aiphone catalog to find alternative visual notification options or master unit configurations that fit your deployment footprint.
