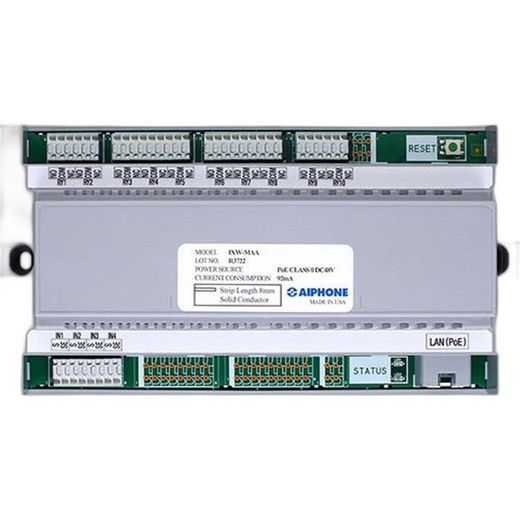

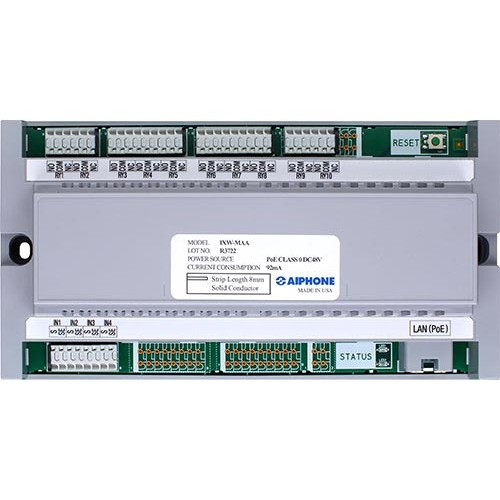

Aiphone IXW-MAA-SOFT-5 Multi-Purpose Adaptor with PC Master Station Software
Overview
The IXW-MAA-SOFT-5 is a PoE-powered integration hub for Aiphone IP intercom systems, specifically the IX and IXG series. It bridges intercom logic to external security devices — door locks, access control readers, gate operators — via 10 Form C relay outputs and 4 contact inputs. The package includes five IX-SOFT PC Master Station software licenses, enabling centralized station monitoring and relay assignment across your deployment.
Key Features
- Ten Form C Relay Outputs: Rated 24V AC/DC 500mA per relay. Each output can be assigned to trigger from relay activity on a specific station, letting you automate lock release, gate control, or alarm outputs directly from intercom calls. No external relay module needed for moderate-scale integrations.
- Four Contact Inputs: Accept dry contact closure signals (e.g., door sensors, push buttons, alarm zone inputs). Pair these with the relay outputs to build simple two-way logic — ring button triggers a lock release, or a sensor input triggers an intercom alert.
- PoE Power (802.3af Class 0): Draws 4.48W maximum, meaning it won't strain a standard PoE switch or injector. One Ethernet cable handles both data and power — simplifies wall conduit runs and eliminates a separate 12VDC transformer.
- DIN Rail or Wall Mount: Includes a 35mm DIN rail (170mm length) for panel integration, or mount directly to a wall using the side mounting points. Compact footprint (4.25″H × 8.25″W × 2.375″D) fits in most electrical boxes or equipment racks.
- Network Protocols: Supports IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, SFTP, DHCP, NTP, DNS, and 802.1X port security. Integrates cleanly into secured enterprise networks with static or DHCP addressing and encrypted remote management.
- Five PC Master Station Licenses: The IX-SOFT software bundled with this SKU provides five licensed stations for centralized control and monitoring. Assign relays, review call logs, and manage system configuration from a Windows workstation without per-station licensing overhead.
- Operating Range: Rated 14°F to 122°F (-10°C to 50°C). Suitable for indoor installations in climate-controlled spaces; not rated for outdoor or unheated enclosures.
Integration & Configuration
Programming occurs via IX or IXG Support Tools — a straightforward process if you're already administering the parent intercom system. Relay outputs 1 and 2 on the adaptor monitor the state of corresponding relay outputs on assigned stations. When a station's relay 1 or 2 activates (typically from a call or button press), the adaptor's corresponding relay energizes, triggering your external device. This architecture avoids direct station-to-lock wiring and allows one adaptor to fan out control to multiple locations.
The adaptor integrates with IP intercom systems using standard Ethernet. It shares the same network as your IX or IXG stations, so it respects your existing network management policies and security configurations.
What's in the Box
- 1x IXW-MAA-SOFT-5 adaptor unit
- 1x 35mm DIN rail (170mm)
- 5x IX-SOFT PC Master Station software licenses
- 30-day free trial download of IX-SOFT available
Frequently Asked Questions
Q: Can the IXW-MAA-SOFT-5 work with Aiphone models outside the IX and IXG series?
A: No. Compatibility is restricted to Aiphone IX and IXG series intercom systems. Verify your station model before ordering.
Q: What's the maximum load per relay output?
A: Each Form C relay is rated 24V AC/DC 500mA. For devices drawing more current (electric strikes, gate motors), you'll need an external relay or contactor to switch the high-current circuit.
Q: Does the adaptor require a separate power supply?
A: No. It draws 4.48W via PoE (IEEE 802.3af), so a single Ethernet cable from a PoE switch supplies both data and power.
Q: Can relay outputs be assigned independently to different stations?
A: Yes. Each relay output can be programmed to respond to relay 1 or 2 activity on a specific station, giving you granular control over which station triggers which external device.
Q: What operating temperature range is the IXW-MAA-SOFT-5 rated for?
A: The unit operates between 14°F and 122°F (-10°C to 50°C). It is designed for indoor, climate-controlled environments and should not be installed in unheated or outdoor enclosures.
Q: Is the IX-SOFT software license transferable if I upgrade hardware?
A: License transfer policies are set by Aiphone. Contact the manufacturer or your reseller for details on license mobility.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The IXW-MAA-SOFT-5 solves a real problem on mixed IX/IXG deployments: you need relay control without building a parallel wired network. This adaptor handles that cleanly — pull one Ethernet cable, get 10 relay outputs and 4 inputs. The PoE power envelope (4.48W) is tight but workable in most rack scenarios.
Technical Highlights:
- Form C Relay Rating (24V AC/DC 500mA): Adequate for low-current devices (electric locks, solenoid gates). Anything heavier (5+ amp door strikes, 24VDC motors) needs an external contactor. Know your load before wiring.
- PoE 802.3af Class 0 at 4.48W: Minimal power overhead. Will not tip a 30W or 60W budget on any modern PoE switch. Simplifies power distribution — one cable, no transformer clutter.
- DIN Rail Mount with Wall Option: Compact (4.25″ height). Fits 35mm rail standard, works in a wall box, doesn't demand a dedicated enclosure. Industrial deployments appreciate that flexibility.
Deployment Considerations:
- Limited to IX and IXG systems. If you're running legacy Aiphone GX or TX models, this does not bridge. Verify firmware version and series before purchase — especially on retrofit projects mixing old and new hardware.
- Ten relays sounds like a lot until you plan a three-story office with separate lock release per floor plus two gate operators. You'll hit the limit. Plan your relay budget early. Adding a second IXW-MAA-SOFT-5 is possible but requires a second PoE feed and dual software licensing.
- Operating range maxes out at 50°C. Not suitable for unheated mechanical rooms or outdoor cabinets. Scope thermal management before committing to a location.
Best fit: Small-to-mid office buildings or warehouses running a handful of IX stations with straightforward access control logic — one door unlock per call, maybe a gate trigger. If your automation map is complex (conditional logic, multiple relay sequences, time-based rules), consider whether you need a dedicated access control panel instead of trying to layer that complexity onto the intercom adaptor.
