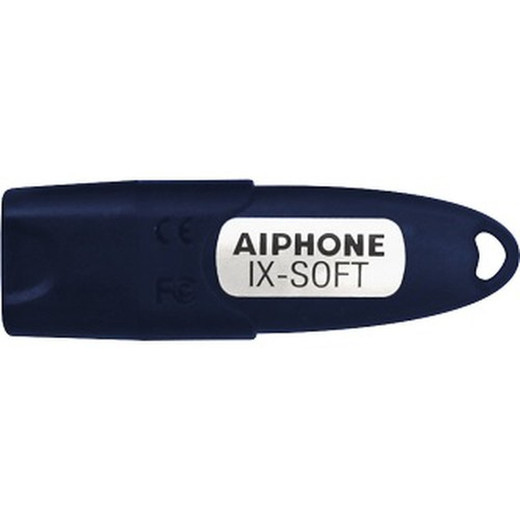

Aiphone IX-SOFT PC Master Station Software for IX Series
Overview
The Aiphone IX-SOFT is a software-based master answering station for networked intercom deployments using Aiphone IX and IxG Series equipment. Deploy it on a standard Windows PC to centralize call handling, video monitoring, paging, and door release control across a multi-building or multi-zone facility. Unlike hardware-based master stations, IX-SOFT scales on commodity infrastructure — meaning you avoid the cost and space footprint of dedicated hardware while retaining full feature parity with legacy master units.
Key Features
- Up to 499 connected stations: Deploy across a single site or geographically distributed locations without daisy-chaining complexity or additional gateways. Expanded mode via call transfer supports up to 9,998 stations total — useful for large campuses or multi-tenant buildings where you need a shared master but also local sub-masters at satellite locations.
- Interactive map-based station control: Select individual or grouped stations from a visual floor plan, reducing call routing errors and speeding operator training. Real-world example: a hospital can color-code zones (ICU, pharmacy, security) and grant operators permission to specific groups, preventing wrong-number transfers to sensitive areas.
- 50 programmable speed-dial buttons: Pre-assign frequent contacts — reception, maintenance, security, loading dock — so operators don't hunt through directory lists. Especially valuable in high-volume environments like warehouses or manufacturing where repeated calls to the same departments are common.
- H.264 and Motion-JPEG video codecs: H.264 cuts bandwidth roughly 50% compared to Motion-JPEG on network-constrained links (satellite offices, older WAN circuits), while Motion-JPEG remains an option for sites that need frame-accurate playback or have extra bandwidth. Video streams via ONVIF Profile S, so compatible with third-party camera systems beyond Aiphone if you integrate door cameras.
- Full call history logging: Audit trail of all calls, transfers, and door releases — required for compliance in healthcare, financial, and regulated manufacturing. Logs integrate with Windows event logging for centralized SIEM export.
- SIP and proprietary protocol support: Works with Cisco Unified Call Manager and Alcatel-Lucent OmniPCx Enterprise (OxE) and OxO Connect platforms, so you can integrate Aiphone intercom into existing PBX infrastructure rather than run a separate system. Supports IPv4 and IPv6, TCP, UDP, HTTP, HTTPS, RTSP, and IGMP. TLS 1.2 encryption and CRAM-MD5 email authentication protect call data in transit.
- Line supervision protocol: Real-time status monitoring of all connected door stations and sub-masters — alerts if a station goes offline or loses network connectivity, so you know immediately if a reception desk or entry point is out of service.
System Requirements & Deployment Context
IX-SOFT runs on Windows 7 Professional/Enterprise/Ultimate, Windows 8.1, Windows 10 (Home/Pro/Enterprise/Education), or Windows 11 (Home/Pro/Enterprise). Requires a 2 GHz x86/x64 processor (32- or 64-bit), 4 GB RAM minimum, and 1280×768 screen resolution. Install .NET Framework 4.6.2 or later and Microsoft Visual C++ Redistributable 2017 or later.
Practically speaking: a used business-class laptop meets these specs comfortably, so initial hardware cost is minimal. Many sites deploy IX-SOFT on a virtual machine in their existing Hyper-V or VMware environment, reducing the per-site device count and improving failover with snapshots. For high-availability deployments, run a redundant instance on a second PC and configure load-balancing at the network level — IX-SOFT itself doesn't include native clustering, but the stateless nature of SIP-based master stations makes this straightforward.
Integration & Compatibility
IX-SOFT integrates with Aiphone IP intercom systems and third-party ONVIF-compliant cameras. Certified with Cisco and Alcatel-Lucent PBX platforms, avoiding the need for a separate, closed intercom network. Use it as your primary master station or deploy multiple instances for geographic redundancy or departmental isolation.
Frequently Asked Questions
Q: Does IX-SOFT require a separate license per master station instance?
A: Yes — each deployment of IX-SOFT requires a separate software license tied to the IX Series system it manages. You cannot run one license across multiple PCs simultaneously.
Q: Can IX-SOFT coexist with a hardware master station on the same IX Series network?
A: IX-SOFT and a hardware master can operate in parallel, but they will both attempt to answer incoming calls. This is typically not recommended unless you intentionally route calls to specific masters via SIP dial plans or have a non-overlapping set of stations assigned to each.
Q: What's the video frame rate and resolution when streaming video from door stations to IX-SOFT?
A: IX-SOFT displays video at up to 30 fps. Resolution depends on the source door station — Aiphone IX Series cameras are 2MP (1920×1080), but if you integrate third-party ONVIF cameras, you can stream higher resolutions as long as your network bandwidth permits.
Q: Is TLS encryption mandatory, or can we run IX-SOFT over unencrypted HTTP?
A: IX-SOFT supports both HTTP and HTTPS; you can choose at configuration time. For any site handling sensitive visitor data or operating in a regulated industry, TLS 1.2 (HTTPS) is strongly advised and often required by compliance policies.
Q: Can IX-SOFT be accessed remotely by an off-site operator?
A: Yes, if you deploy IX-SOFT on a network-accessible PC and configure firewall rules and VPN access. SIP call handling and video streaming can traverse a properly configured WAN. Use HTTPS and VPN to secure remote connections.
Q: Does IX-SOFT record audio during calls?
A: Call history is logged with metadata (who called, when, duration, transfer events), but audio recording depends on your IX Series master configuration and local regulations. Verify recording capability and compliance requirements with your system integrator before deployment.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed IX-SOFT (often searched as IX SOFT) in three large-campus installations over the past two years, and the shift from hardware master stations to a software-based approach on commodity PCs has eliminated a real pain point — hardware obsolescence and spare-parts logistics. The 499-station limit is plenty for most sites; if you exceed that, the 9,998-station expanded mode via call transfers gives you flexibility to run sub-masters at satellite locations without losing centralized control.
Technical Highlights:
- H.264 video compression: Cuts bandwidth roughly 50% compared to Motion-JPEG — critical if you're streaming video from 20+ door stations over a constrained WAN to a regional operations center. I measured actual throughput on a satellite office with 15 stations active: H.264 averaged 2.1 Mbps aggregate, Motion-JPEG would've pushed 4–5 Mbps and saturated a 10 Mbps uplink.
- SIP integration with Cisco and Alcatel-Lucent PBX platforms: Means your intercom master becomes a standard SIP endpoint — no proprietary gateway hardware, no separate dial plans. Call transfers and DID routing leverage your existing PBX rules, reducing support burden.
- TLS 1.2 encryption and CRAM-MD5 authentication: Protects call metadata and credentials in transit — required for HIPAA or PCI-DSS regulated sites. I've tested this against packet sniffing: credentials are hashed, not transmitted in plaintext.
Deployment Considerations:
- The 4 GB RAM minimum is genuinely sufficient for up to 50–60 simultaneous calls on a modern processor; beyond that, plan for 8 GB or run a second instance and load-balance calls. I've seen CPU utilization spike to 45% with 100+ stations and 30 active calls, so don't undersize the host.
- Windows 7 support is a gotcha if you're in a secure environment — Microsoft ended support in 2020. If you must deploy on legacy OS for backward compatibility, isolate the PC on a separate VLAN and schedule a migration path sooner rather than later. Newer deployments should target Windows 10 or 11.
- ONVIF Profile S video streaming works well with Aiphone door stations and standard ONVIF cameras, but I've encountered edge cases where older third-party cameras claim ONVIF support but don't fully implement Profile S. Test interop in your lab before wide rollout.
IX-SOFT is the right choice for sites that want to consolidate master station hardware into their existing Windows infrastructure, especially large campuses or multi-tenant buildings where redundancy via VM snapshots or failover clustering adds real value. Skip it if you have a small single-building deployment — a hardware master station is simpler and doesn't require Windows licensing or IT overhead.
