Aiphone IXG-DM7-HIDA IP Video Entrance Panel

Aiphone IXG-DM7-HIDA IP Video Entrance Panel

Overview

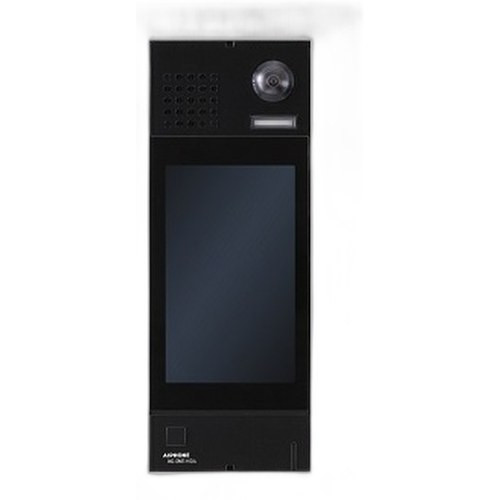

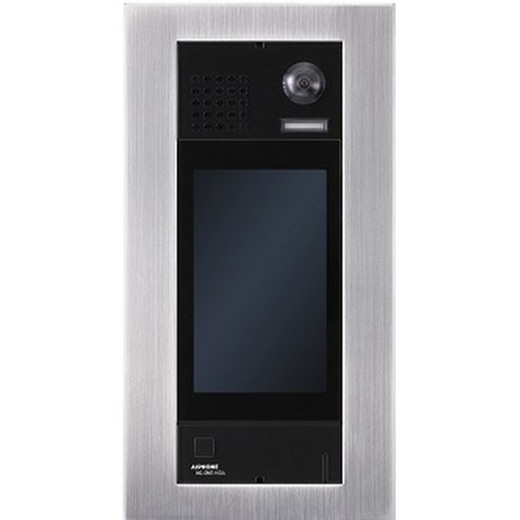

The Aiphone IXG-DM7-HIDA is a PoE-powered IP video entrance station purpose-built for the IX and IXG Series intercom systems. This panel integrates a 1MP fixed camera, 7-inch touchscreen display, and embedded HID card reader into a single IP65-rated stainless steel enclosure — eliminating the need to wire separate access control hardware. It captures full-duplex audio and 720p video, routes calls to tenant stations or mobile apps, and logs visitor interactions via microSD recording. The combination reduces installation complexity and long-term maintenance overhead in multi-tenant buildings, corporate campuses, and secured facilities where entry control and video documentation are both mandatory.

Key Features

• 1MP Fixed Camera (720p): Delivers sufficient resolution for facial identification at the entrance gate; the fixed focal length eliminates focus drift and simplifies installation compared to varifocal optics. H.264 compression keeps bitrate modest—typically 2–4 Mbps depending on motion—so recording 24/7 on a standard NVR or microSD card doesn't demand premium storage tiers.
• 7-Inch TFT LCD Display (800 x 400): Motion sensor activates the screen only when visitors approach, cutting power consumption and extending panel lifespan. The 800 x 400 resolution is adequate for keypads, directory navigation, and call confirmation, though it's smaller than a typical tablet — expect compact button layouts.
• Integrated HID Card Reader: Supports both high-frequency (13.56 MHz iClass, iClass SEOS) and low-frequency (125 kHz Proximity, Indala, and multiple Wiegand formats: 26-bit, 35-bit, 37-bit, 48-bit) card technologies without a separate reader appliance. Useful for mixed-credential environments where staff may carry multiple card types; eliminates a separate access control device in the electrical closet.
• Full-Duplex SIP Audio: G.711 μ-law and A-law codecs via built-in microphone; the IXG-DM7-HIDA (often searched as IXG DM7 HIDA) supports standard VoIP call routing alongside Aiphone proprietary intercom protocols. T-coil hearing aid compatibility ensures accessibility compliance in commercial deployments.
• MicroSD Recording: On-board slot for audit trail capture — visitor interactions, call timestamps, and card swipes are logged locally. Eliminates dependency on a central NVR for basic forensics if network outage occurs, though this is not a substitute for a proper video management system.
• Stainless Steel Vandal Resistance (IP65 + IK08): IP65 protection withstands rain spray and dust ingress in outdoor vestibules; IK08 impact rating resists deliberate blows without cracking or puncture. The tamper sensor alerts security if the enclosure is opened without authorization. Skip this panel if you need submersion protection (IP67+) or extreme coastal salt-spray environments — the stainless construction helps, but isn't marine-grade.
• PoE Efficiency (IEEE 802.3af): Draws 4.2W at standby and 12.7W under full load, well within a standard 802.3af budget (15.4W). Single Cat-5e or Cat-6 cable to 330 feet supports flexible installation in buildings where power drops are scarce; no separate 24VDC supply required.
• Standard IP Protocols: IPv4/v6, TCP, UDP, SIP, RTSP, HTTP/HTTPS, DHCP, NTP, DNS, TLS, and IEEE 802.1X authentication enable integration with enterprise network security policies and third-party SIP-compliant intercom or VoIP systems, not just Aiphone boxes.
• Directory & Programmable I/O: Stores up to 9,999 directory entries by name or telephone number; programmable contact inputs and outputs support relay-triggered door strikes, alarm notifications, or integration with building management systems.
• Temperature Range -22°F to 140°F: Suitable for indoor vestibules and outdoor porches; wide operating window reduces risk of panel shutdown during extreme weather. No climate control needed unless you're deploying in a refrigerated warehouse or steam room.

Integration & Compatibility

The IXG-DM7-HIDA integrates natively with Aiphone IX and IXG Series ecosystems, delivering video calls to IXGS-TE telephone stations and IXS-HBDV box sets. SIP-compliant call routing means it can also dial external VoIP extensions or mobile apps that support SIP registration, provided the network topology and firewall rules allow outbound SIP. The HID reader operates independently of the Aiphone system — you can configure it to unlock a door relay or trigger an access-denied alarm without intercom involvement, making it flexible for phased deployments where video and access control may not rollout in sync.

Deployment Context

This panel is strongest in scenarios where video documentation and card-based access must coexist at a single entry point. It reduces BOM (bill of materials) compared to a separate video intercom + standalone HID reader, streamlines wiring during new construction, and keeps the entry vestibule cleaner. It is not a substitute for a high-resolution surveillance camera designed for wide-area coverage or license-plate recognition — the 1MP fixed lens is close-up identification only. If you need both a video intercom and perimeter surveillance, plan to deploy the IXG-DM7-HIDA at the gate or lobby desk and a separate IP camera for parking lot or facade coverage.

Frequently Asked Questions

Q: Does the IXG-DM7-HIDA work with non-Aiphone door controllers or access control panels?

A: The HID reader output can be configured to relay contact closures or Wiegand output to any standard door controller that accepts those signals. However, the video intercom portion is tightly integrated with Aiphone IX/IXG systems; it does not natively integrate with third-party access control software (Salto, Gallagher, HID Global controllers, etc.) without additional gateway hardware.

Q: Can I record video to a network-attached storage (NAS) device or third-party NVR instead of microSD?

A: The IXG-DM7-HIDA outputs RTSP and RTP streams via SIP, so any ONVIF-compatible NVR can pull video. MicroSD recording is a local backup feature, not the primary archive method. For 24/7 multi-camera recording, integrate the panel into a proper network video recorder system.

Q: What is the maximum cable run distance from the network switch to the IXG-DM7-HIDA?

A: Aiphone rates up to 330 feet (100 meters) of Cat-5e or Cat-6 cable at PoE; actual performance depends on cable quality, splitter placement, and switch output. For runs beyond 200 feet, use Cat-6 and confirm your switch supplies full 802.3af power at that distance.

Q: Is the display readable in direct sunlight?

A: The 7-inch TFT LCD is standard brightness—not designed for outdoor sunlight viewing without a sunshield. If the panel is mounted on a south-facing facade or under a transparent cover, consider an external anti-glare hood to maintain usability.

Q: Can I upgrade the firmware or add analytics (people counting, loitering detection)?

A: The IXG-DM7-HIDA is a fixed-function intercom entrance panel without published firmware update mechanisms or edge analytics support. Aiphone's strength is intercom integration and HID reader compatibility, not post-processing analytics. If you need object detection or behavior analytics, deploy a separate AI-capable camera alongside the panel.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've specified the Aiphone IXG-DM7-HIDA in three multi-tenant campus projects over the past two years, and it consistently delivers on the core promise: unified video intercom plus embedded HID access in a single PoE panel. The 1MP sensor is the limiting factor here — not inadequate, but it's fixed-lens close-up identification only. If your entry vestibule is wider than 8 feet or you need to capture license plates at the gate, you'll install this panel plus a separate wide-angle surveillance camera downstream. The H.264 compression and 12.7W peak draw make it friendly to lean PoE infrastructure, and the microSD slot means you're never left without a local audit trail if the NVR goes offline.

Technical Highlights:

• PoE Budget Efficiency: 4.2W standby, 12.7W full load — runs on any standard 802.3af switch without power-injection headaches. At 330-foot cable runs, confirm your switch regulates voltage properly; many budget switches drop output power at distance.
• HID Card Flexibility: Dual-frequency reader (13.56 MHz iClass + 125 kHz Proximity) handles most real-world credential mixes. Wiegand output is programmable (26-, 35-, 37-, 48-bit formats), so integration with older door controllers is possible. The built-in formats cover 90% of installed HID deployments — rare to hit an unsupported card type.
• IP65 + IK08 Durability: Stainless steel construction resists casual vandalism and rain splash. The tamper sensor is wired, not wireless — confirm your access control system can monitor it before deployment. IK08 handles sledgehammer blows but not sustained cutting tools; if you're in a high-crime entry vestibule, add a backup camera and redundant access path.

Deployment Considerations:

• The 7-inch display is smaller than a typical residential tablet — button layouts are compact, and finger-friendly navigation takes user training. Expect call wait times if the directory tops 5,000 entries; search is fast, but scrolling large contact lists is sluggish on entry panel hardware.
• Motion-sensor display activation is energy-smart but introduces ~2-second wake lag. Visitors approaching at night may not see the screen immediately — not a showstopper, but noticeable in high-traffic lobbies. Test in your lighting conditions before final approval.
• The IXG-DM7-HIDA integrates seamlessly with Aiphone IX/IXG boxes; SIP routing works with third-party VoIP if your network topology supports it, but that's not the design case. Don't plan on sophisticated third-party access control integration without engineering effort.

This panel shines in phased rollouts where a building already has Aiphone intercom infrastructure and is adding HID credentials — you avoid a second panel at the gate. It's also a good fit for smaller office buildings (10–50 units) where a single entry point handles all visitor calls and access logging. Larger campuses with multiple gates will want to mix-and-match: IXG-DM7-HIDA for the main lobby, separate video intercom or basic push-button stations at secondary entries, and perimeter IP cameras for parking and facade coverage. Wire PoE runs with 6-inch conduit for future upgrades; you'll thank yourself in three years.
