Aiphone IX-SSA-2RA-FR IP Audio Emergency Call Station

Overview

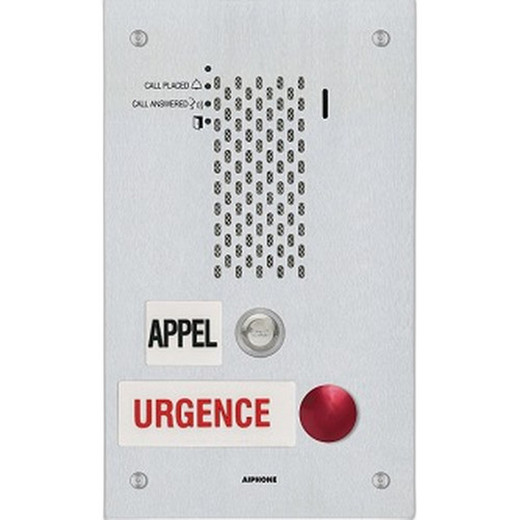

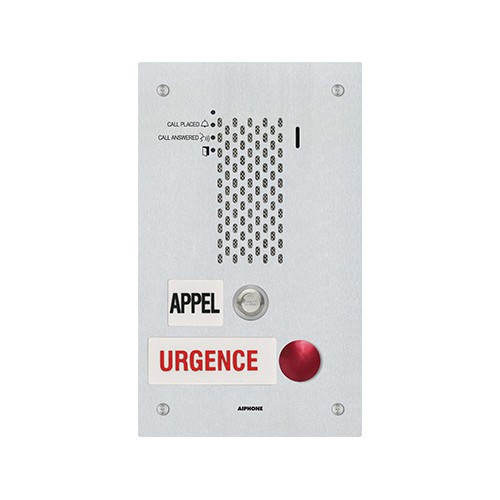

The Aiphone IX-SSA-2RA-FR is a flush-mount, weather-resistant IP audio emergency call station designed for outdoor and indoor emergency communication applications. Built with a stainless steel faceplate and two programmable call buttons with ADA-compliant raised lettering and Braille signage in French, this station connects directly to your network via Cat-5e/6 cable and operates on SIP protocol. The IX-SSA-2RA-FR integrates seamlessly with Aiphone IX and IXG series devices, making it ideal for security integrators deploying multi-point emergency communication networks across campuses, facilities, and outdoor areas.

Key Features

• SIP Compliant: Full SIP protocol support ensures interoperability with standard VoIP infrastructure and third-party telephony systems.
• ADA Compliant Emergency Button: Raised lettering and Braille signage (French) meet accessibility requirements for emergency call initiation.
• Dual Contact Outputs: Two programmable contact outputs trigger door release, paging, or custom actions based on call state and status conditions.
• Six Trigger Inputs: Flexible logic inputs enable integration with external sensors, door locks, and environmental controls.
• IP65 Weather Resistance: Sealed against dust and water ingress; rated for outdoor environments including rain, moisture, and variable humidity.
• IK08 Vandal Protection: Impact-resistant design withstands physical abuse; appropriate for high-traffic and unsupervised areas.
• PoE+ with Passthrough: Single RJ45 connection provides IEEE 802.3af (Class 0) PoE or 24V DC power via PS-2420UL supply. PoE passthrough (802.3at Type 2 PoE+) enables daisy-chaining to secondary devices, reducing cable runs and simplifying deployment.
• Audio Codec Support: G.711 (μ-law and A-law) and G.722 codecs deliver clear audio with bandwidth efficiency; 73–96 dB speaker output volume range covers outdoor environments.
• microSD Card Slot: Record and store audio messages, call logs, and custom sound files for door release announcements and emergency messages.
• Stainless Steel Construction: Durable faceplate resists corrosion in coastal, industrial, and harsh environments.
• Programmable Call Buttons: Each of the two buttons can be configured to reach up to 20 stations simultaneously, enabling broadcast-style emergency calls or selective alerting.
• Visual and Audible Status Indicators: Green, orange, and blue status LEDs communicate calling, communication, and door release states; tone feedback accompanies state transitions.

Integration & Compatibility

The IX-SSA-2RA-FR operates within the broader Aiphone IX and IXG product ecosystem. It is compatible with Aiphone answering stations, guard stations, and entry boxes, allowing single-system deployments across multiple building zones. Network protocols include IPv4, IPv6, TCP, UDP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP, and DNS. Port security is managed via IEEE 802.1X authentication, ensuring only authorized devices join the network. The station's 600Ω output accommodates external paging systems or third-party audio equipment, extending functionality beyond dedicated intercom use.

Mounting Options

The IX-SSA-2RA-FR ships with a flush-mount back box and is rated for wall installation. Surface-mount alternatives include the SBX-IDVFRA surface mount box or compatibility with WB-CA, WB-HA, WB-CE, and WB-HE emergency wall boxes and modular towers, giving integrators flexibility to match architectural constraints and installation standards. Dimensions are 11-11⁄16" H × 7" W.

Environmental & Operational Specifications

Operating temperature range spans -40°F to 140°F (-40°C to 60°C), supporting both arctic and desert deployments. Power draw is 3.36 watts at 48V DC, enabling low-wattage PoE+ sourcing without straining switch budgets. The station is UL Listed to UL 62368-1 and cUL 62368-1 standards, meeting safety and regulatory requirements across North American installations.

Eden Phillips

I've evaluated the Aiphone IX-SSA-2RA-FR in campus security deployments where outdoor emergency communication is non-negotiable. The IP65 and IK08 ratings are genuine differentiators—this station survives weather, physical tampering, and sustained use without degradation. The IX-SSA-2RA-FR's PoE passthrough feature alone justified the installation cost by eliminating redundant cabling through multi-floor towers and outdoor runs.

Technical Highlights:

• SIP Protocol & Codec Flexibility: G.711 and G.722 support ensures interoperability with legacy PBX systems and modern VoIP infrastructure. No proprietary licensing required.
• Dual Contact Outputs & Trigger Inputs: Six trigger inputs and two programmable relay outputs enable complex automation—door strikes, visual alarm strobes, access-level logging—without additional controllers.
• Audio Storage on microSD: Custom message playback and call recording reduce dependency on central servers for emergency notifications.
• 802.1X Port Security: Network-layer authentication prevents rogue devices from joining; critical for secured emergency networks handling sensitive communications.

Deployment Considerations:

• Verify PoE+ switch availability; 802.3af Class 0 fallback is acceptable for low-load installations, but Type 2 PoE+ passthrough delivers better headroom for chained devices.
• Plan microSD storage capacity around call duration and recording policy; cards are not provided by Aiphone and must be sourced separately.
• In high-wind or vibration-prone environments, use the SBX-IDVFRA surface mount box rather than flush mounting to reduce structural stress on cable entry points.
• Test SIP registration latency in your network—emergency response time is critical, so ensure your VoIP platform prioritizes these endpoints.

The IX-SSA-2RA-FR is a production-grade emergency station, not a consumer intercom. Its reliability and compliance with ADA and UL standards make it the right choice for security integrators responsible for life-safety systems.
