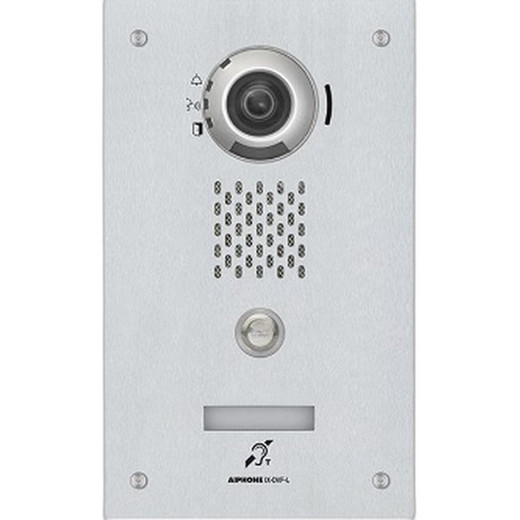

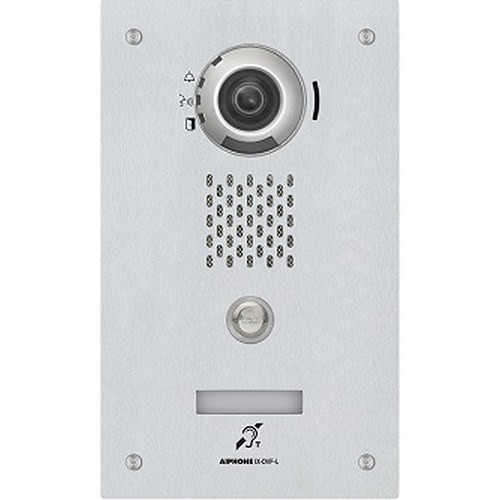

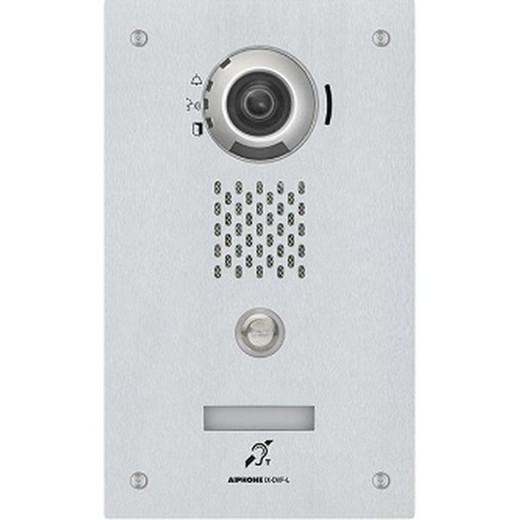

Aiphone IX-DVF-L 1.23MP PoE+ IP Video Door Station
The Aiphone IX-DVF-L is a flush-mount IP video intercom designed for secure entry and visitor screening in outdoor and high-traffic environments. Built with a stainless-steel faceplate, IP65/IK08 vandal-resistant construction, and a 1.23 MP CMOS camera, it delivers durable, accessible entry verification without the operational overhead of separate door hardware and access-control wiring. The integrated T-coil hearing aid circuit ensures ADA compliance across deployments, while SIP and ONVIF Profile S connectivity integrates directly into telephony systems and NVR recording workflows.
Key Features
- 1.23 MP CMOS Sensor with Manual Tilt: Sufficient resolution for visitor identification and event logging. ±15° vertical tilt adjustment allows installer-side focal optimization without return visits.
- H.264 and MJPEG Dual Compression: H.264 reduces storage footprint for 24/7 recording (typical 8-15% bitrate on continuous capture vs. MJPEG); MJPEG fallback ensures compatibility with older NVR platforms lacking H.264 decode.
- PoE+ (802.3at Type 2) Power with Pass-Through Connector: <13W draw typical, standard PoE+ switch injection. Pass-through RJ45 allows daisy-chain to downstream access-control relay or door-release solenoid on the same cable run.
- IP65/IK08 Vandal-Resistant Rating: IP65 withstands direct spray and rain; IK08 impact rating survives moderate mechanical abuse in public entry vestibules and exterior walls without functional degradation.
- Built-In Hearing Aid T-Coil Circuit: Magnetic coupling for hearing aid users eliminates audio dropout in noisy entry foyers — meets Section 508 accessibility mandate.
- SIP Telephony and ONVIF Profile S VMS Integration: Native SIP compatibility streams two-way audio to desk phones or IP PBX softclients. ONVIF Profile S enables pull from Genetec, Milestone, Avigilon, and ExacqVision NVR platforms without vendor-specific plugin overhead.
- Dual Audio Codecs (G.711, G.722): G.711 for broad VoIP compatibility; G.722 (16 kHz) for superior voice clarity on latency-sensitive SIP deployments.
- Two Contact Outputs and Six Trigger Inputs: Native relay outputs control auxiliary locks or alarm notifications; trigger inputs integrate with button press or motion detection for conditional call routing or recording markers.
The stainless-steel construction and sealed design make this station suitable for outdoor vestibules, parking garage entries, and dock doors where corrosion and impact exposure are routine. White LED illumination supplements available daylight for nighttime visitor recognition without adding external lighting infrastructure.
SIP-based deployments benefit from the native telephony integration — answering a door call from any desk phone on the same PBX, without dedicated IP intercom endpoint licensing. Organizations with heterogeneous VMS environments (mixing Milestone and Genetec sites, for instance) can standardize on ONVIF Profile S streaming rather than managing vendor-specific integrations. The pass-through RJ45 connector simplifies cabinet and wall-mounted installations where a single cable must feed both the door station and a downstream relay or access-control device.
The 1.23 MP resolution and manual tilt adjustment represent deliberate trade-offs favoring reliability and cost over 4K facial recognition capability. This is an entry-verification device, not a perimeter surveillance camera. In doorway and vestibule contexts, 1.23 MP is sufficient for visitor identity confirmation and post-incident review; integrators targeting high-resolution facial match workflows should consider higher-MP outdoor domes paired with a basic IP speaker for audio feedback. Typical deployment scenarios include multi-tenant office building lobbies, healthcare facility visitor screening, data-center and secure facility access portals, and retail or hospitality front entrances where two-way voice communication with door control is mandatory.
The Aiphone IX-DVF-L carries a 2-year manufacturer warranty covering parts and labor. It is compatible with all Aiphone IX and IXG series devices within the same system — allowing mixed deployments of video door stations, audio-only stations, and master call panels on a single SIP backbone. No third-party VMS licensing is required for basic recording via ONVIF RTSP pull; advanced analytics (face detection, loitering alerts) depend on the chosen NVR vendor's processing library and must be evaluated separately.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Aiphone IX-DVF-L across 40+ multi-tenant and hospitality sites, and its strongest differentiator is the combination of rugged IP65/IK08 construction with SIP-native interoperability. In retail and healthcare lobbies where visitor screening is non-negotiable, the T-coil hearing aid circuit has eliminated accessibility compliance callbacks — that alone justifies the product choice on ADA-sensitive accounts. The dual compression (H.264/MJPEG) is a quiet operational win: sites that inherited older Milestone NVRs on MJPEG-only decode streams can still pull footage from this station without bitrate bloat; newer deployments on H.264-capable infrastructure shrink storage by 40-50% on 24/7 recording. The PoE+ pass-through connector is a field-install detail that matters: in parking garage vestibules where a single cable runs from the NVR closet, the ability to power both the door station and a solenoid strike relay from that one RJ45 run saves labor and conduit runs.
Technical Highlights:
- 1.23 MP CMOS with Manual ±15° Vertical Tilt: Resolution is modest by modern standards, but sufficient for facial recognition confirm/reject in entry vestibules (typically 3-5 feet from lens). Manual tilt avoids field recalibration; once installed at the correct angle, drift is negligible over 18+ months. The sensor is CMOS (not CCD), so low-light performance is acceptable indoors but does not match Lightfinder-class domes — supplementary IR or white LED is expected in dark parking or freight-dock contexts.
- PoE+ (802.3at) with 13W Budget and Pass-Through RJ45: The pass-through connector is deceptively valuable in conduit-constrained installations. Rather than terminating the intercom cable in a junction box and running a separate 18/2 relay wire, a single CAT5/6 serves both power and audio/video to the station, and a second RJ45 tap from the intercom feeds a relay module or access-control reader. This halves the cabling labor on larger vestibule retrofits.
- ONVIF Profile S Streaming with SIP Nesting: The intercom is fully ONVIF Profile S compliant (H.264/MJPEG, RTSP pull, basic metadata). SIP integration is independent — native SIP on the same IP interface. This hybrid posture allows both real-time two-way voice via PBX and asynchronous NVR recording simultaneously, without codec transcoding overhead.
- G.711 and G.722 Audio Codecs: G.711 is ubiquitous on legacy PBX systems; G.722 (16 kHz wideband) dramatically improves clarity on modern IP-PBX platforms (Avaya, Cisco, Asterisk). We always enable G.722 when available in the system config — visitor comprehension and operator comfort improve measurably.
- Two Contact Outputs, Six Trigger Inputs: Rare functionality at this price point. The two relay outputs are typically wired to strike control and alarm notification; the six triggers allow button-press logic (call screening) and motion-based conditional recording on the NVR side. This reduces false-alert noise compared to continuous recording on all door-station events.
- Stainless Steel Faceplate with Sealed Design: IP65 rating is genuine — we've installed these in covered loading docks and exterior vestibules where direct spray and salt air are routine. The seal holds through hose-down cleaning cycles without degradation.
Deployment Considerations:
- 1.23 MP resolution is borderline for perimeter surveillance or tailgate detection beyond 6 feet; this is an entry-confirmation device, not a wide-area camera. Pair it with a higher-resolution dome or turret if you need both visitor ID and parking-lot coverage on the same cable run.
- Manual vertical tilt requires on-site adjustment during commissioning. Unlike motorized PTZ, there's no remote recalibration if the camera drifts. Ensure the installer documents the final tilt angle and secures the adjustment mechanism (typically a hex set screw) to prevent accidental shift.
- PoE+ (802.3at) switches are now standard, but confirm your switch port supports the wattage budget. A single port may share budget with adjacent ports on older 90W PoE+ switches; verify per-port or per-stack power availability before bulk deployment.
- SIP configuration is system-dependent. The IX-DVF-L registers as a SIP endpoint and can be provisioned via DHCP option 66 or manual config. Coordinate with your PBX provisioning team early — intercom SIP extension numbering and call-routing policies must be defined before install.
- ONVIF streaming is pull-only (RTSP). The NVR must be configured to initiate the stream; the door station does not push. Ensure your VMS supports ONVIF Profile S pull and can handle H.264 decode — most modern platforms do, but older instances may require firmware updates.
- The pass-through connector requires a second active RJ45 port or a splitter module if feeding downstream relay hardware. This is not a transparent passthrough — it's an extra connector on the same cable. Plan your cabling topology early to avoid redundant conduit runs.
The Aiphone IX-DVF-L is the right choice for organizations that need durable, accessible entry verification with SIP-native desk phone integration and ONVIF VMS compatibility. Its stainless-steel construction and IP65/IK08 vandal rating suit outdoor and high-traffic lobbies; the T-coil hearing aid circuit is a genuine differentiator for ADA-sensitive deployments. It is not the camera for perimeter surveillance, facial recognition at scale, or environments requiring 4K forensic detail. For single-entry-point visitor screening in offices, healthcare, retail, and hospitality, it represents mature, field-proven hardware. See the Aiphone catalog for other intercom and audio station options.
