Aiphone IM-1 Cashier Window System Set

Aiphone IM-1 Cashier Window Intercom System Set

Overview

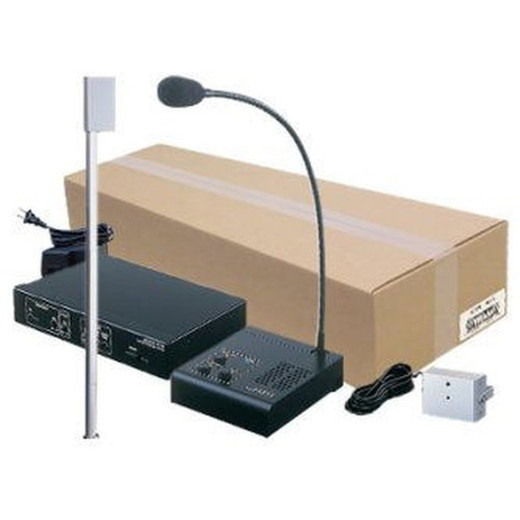

The Aiphone IM-1 is a complete hands-free intercom solution designed for cashier windows, ticket counters, and security access points where clear two-way communication and unobstructed sightlines are essential. The IM-1 system uses voice-actuated (VOX) technology to eliminate the need for push-to-talk operation, enabling natural conversation between staff and customers while maintaining visibility through the service window. This box set includes all components needed for a single installation: the IMU-100 controller unit, IAI-100 speaker driver with acoustic I/O tube, IME-100 gooseneck microphone, IAX-100 acoustic tube extension, ISE-100 proximity sensor, and PS-2420UL power supply.

Key Features

• Hands-free VOX communication: Automatic voice-activation eliminates manual operation, allowing staff to respond naturally without toggle switches or push buttons
• Low-profile design: Inconspicuous units do not obscure or obstruct the faces of customers approaching the window, preserving visibility and security sight lines
• Flexible gooseneck microphone: IME-100 component adjusts to virtually any position for optimal microphone placement and speech capture
• Standby mode with ambient monitoring: When the TALK switch is off, the operation unit enters low-power standby while still receiving audio from the public side at reduced volume, enabling staff awareness
• Motion sensor integration: System can be linked to the ISE-100 proximity sensor to automatically activate communication mode when a customer approaches the window
• Adequate output power: 3W transmit output at 4Ω and 1.5W receive output at 16Ω deliver clear audio across the window barrier
• Computer-style headset compatible: Supports optional headset operation for hands-free staff use during busy periods
• Extended cable runs: Supports distances up to 66 feet between control unit and speaker driver using recommended 22AWG or 18AWG shielded cable

System Components and Wiring

The IM-1 box set delivers a fully integrated solution requiring minimal field assembly. The IMU-100 controller unit serves as the central control point, housing the operation unit and power distribution logic. The IAI-100 speaker driver assembly includes the DR-100 speaker and acoustic I/O tube, which directs sound through the service window. The IME-100 flexible gooseneck microphone captures customer speech from the public side, while the IAX-100 acoustic tube extension (3-foot length) allows positioning flexibility for optimal microphone placement. The ISE-100 proximity sensor enables motion-activated operation.

Interconnection uses shielded twisted-pair cabling as follows: speaker driver to control unit requires 2x2-conductor cable with overall shield (Aiphone part #822202 or #821802), while power supply to control unit requires 2-conductor shielded cable (Aiphone part #8222202 or #821802). The PS-2420UL provides 24V DC at 2A, UL Listed, supporting the entire system. Maximum cable distance is 66 feet when using 22AWG or 18AWG shielded conductors, allowing flexibility in window installation geometry.

Integration and Deployment Considerations

The IM-1 system is designed for indoor cashier, ticket window, and access control applications where two-way conversation clarity and unobstructed operator visibility are priorities. The VOX activation system operates without requiring operator training or habit formation—staff need not remember to push a button, making it suitable for high-traffic environments with frequent customer interactions. Proximity sensor integration enables hands-free activation workflows, with communication automatically enabled when customers approach the service window. The system operates in standard indoor office and commercial environments.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've specified the Aiphone IM-1 for several cashier and secure access installations where visual monitoring of the customer approach is non-negotiable. The VOX architecture eliminates operator error and the learning curve associated with push-to-talk systems, which is important in high-volume environments. The IM-1 delivers straightforward, reliable two-way audio without the complexity of networked systems, making it an appropriate choice for facilities that prioritize simplicity and operational uptime.

Technical Highlights:

• Voice-activated operation: VOX eliminates manual switching; conversation begins automatically when either party speaks, reducing staff workload in busy cashier environments
• Output specifications: 3W transmit and 1.5W receive power provide adequate clarity across typical service window distances; integrated amplification handles both directions independently
• Shielded cabling: Specified 2-conductor and 2x2-conductor shields with ground prevent RF and audio interference in commercial buildings with HVAC, lighting, and other noise sources
• Proximity sensor integration: ISE-100 sensor enables automatic activation without staff interaction, supporting zero-touch operation for high-frequency customer transactions

Deployment Considerations:

• Install the IAI-100 speaker driver unit and IME-100 microphone on opposite sides of the service window for clean audio separation and to prevent feedback during two-way conversation
• Verify cable distances do not exceed 66 feet at the specified gauges; longer runs require heavier gauge or active line drivers, which are not included in the box set
• Position the flexible gooseneck microphone at customer mouth height (approximately 48–60 inches above the floor) to optimize speech capture and minimize ambient noise from the service area
• Test proximity sensor placement to ensure the ISE-100 reliably detects customer approach; adjust sensitivity and position if required for your specific window geometry

The IM-1 is a straightforward, maintenance-friendly choice for facilities integrators deploying cashier and access window systems. Its reliance on analog VOX signaling and simple DC power architecture means no network dependency, no software licensing, and no firmware updates—attributes that appeal to organizations seeking durable, long-service-life intercom solutions. This system performs well in baseline installations where the priority is clear audio communication and unobstructed visibility.
