Aiphone IMU-100 Security Window Intercom Control Kit

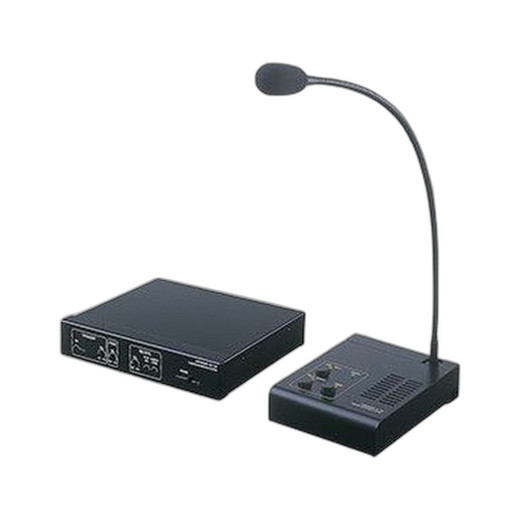

Aiphone IMU-100 Control and Operation Unit Kit

Overview

The Aiphone IMU-100 is a complete control and operation unit kit designed for two-way intercom communication in security window and cashier applications. The kit includes the MU-100 Control Unit and OU-100 Operation Unit with supplied connector, providing a comprehensive platform for hands-free and push-to-talk communication. Operating across a temperature range of 14°F to 140°F (-10°C to 60°C), the IMU-100 delivers reliable performance in indoor environments where customer interaction and security verification are critical.

Key Features

• Dual Communication Modes: Supports both hands-free VOX (voice-operated transmit) operation and push-to-talk simplex communication, with adjustable VOX sensitivity for different acoustic environments.
• Ambient Noise Cancellation: Built-in ambient noise cancelling control reduces background interference and improves speech clarity during transactions and security inquiries.
• High-Power Transmit Output: 3W transmit output with 4-ohm impedance ensures clear, loud audio delivery to connected speaker drivers and external operation units.
• Receive Output: 1.5W receive output at 16-ohm impedance for balanced incoming audio from operation units and secondary stations.
• Independent Volume Controls: Separate transmit, speaker, receive, and standby volume adjustments provide granular control over all communication paths. Dual-position volume switch (hi/lo) allows quick adjustment without menu navigation.
• Flexible Mounting: Desk mounting and under-counter installation with supplied bracket accommodate various facility layouts and counter configurations.
• Extended Operation Unit Placement: Supports up to 6 operation units positioned up to 66 feet away from the MU-100 control unit (using 22 AWG or 18 AWG cabling), enabling multi-station deployments across larger spaces.
• Headset Compatibility: 3.5mm headset jack accepts standard headsets with rated input of 40mW or greater, maximum input 100mW, and 32-ohm impedance for hands-free operator use.
• Optional Gooseneck Microphone Support: Socket for IME-100 gooseneck microphone (sold separately) for enhanced voice pickup and directional audio capture during transactions.
• LED Status Indicators: Transmit, speaker, receive, and standby LED indicators provide real-time visibility into system operation and communication state.
• Shielded Wiring Standard: Requires 2-conductor shielded cable (2 x 2-cond., overall shield) between speaker driver and control unit; Aiphone #822202 or #821802 recommended for proper impedance matching and noise rejection.

Integration and Compatibility

The IMU-100 functions as the core controller in Aiphone's IM-1 cashier and security window systems. The kit integrates with the IAI-100 Speaker Driver and Acoustic I/O Tube Kit (includes DR-100 speaker), ISE-100 Proximity Sensor, and IAX-100 acoustic tube extensions for multi-position configurations. The modular architecture allows expansion to support multiple operation units, secondary intercoms, and ancillary sensor inputs within a single security or customer service zone. Consult Aiphone documentation for specific system topology and device compatibility matrices.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Aiphone IMU-100 during deployments at bank teller windows and retail security counters. This is a straightforward, reliable control platform that handles the core intercom function without unnecessary complexity. The IMU-100 delivers adequate power and audio clarity for typical transaction distances, and the VOX sensitivity adjustment is practical for operators who need to toggle between hands-free and push-to-talk without hardware changes.

Technical Highlights:

• Dual-Mode Operation: VOX sensitivity adjustment allows operators to customize activation thresholds, reducing unintended transmissions in higher-noise environments like retail floors or bank lobbies. Push-to-talk mode is available for security-sensitive applications where unguarded audio is not acceptable.
• Extended Reach: 66-foot cable run (22 AWG/18 AWG) supports medium-scale facilities without requiring repeaters or signal amplifiers. This is sufficient for most cashier windows and security checkpoints in single-story or open-plan layouts.
• Shielded Architecture: The specified 2-conductor shielded cable requirement (Aiphone #822202 or #821802) ensures immunity to crosstalk and RF interference—critical in retail environments with POS systems, wireless networks, and cellular devices nearby.

Deployment Considerations:

• Pair the control unit with the IAI-100 speaker driver to complete the transmission path; the kit alone does not include active speakers or amplified output.
• Plan for dedicated shielded cabling runs; do not run intercom wiring in the same conduit as power or data lines, and use grounding practices consistent with Aiphone technical documentation to prevent ground loops.
• Test VOX sensitivity during commissioning to balance hands-free convenience with false-trigger avoidance in your specific acoustic environment.

The IMU-100 is a solid foundational choice for single-zone or multi-station intercom deployments where reliability and straightforward operation take priority over advanced features. It performs predictably across the stated temperature range and integrates well with other Aiphone IM-series components.
