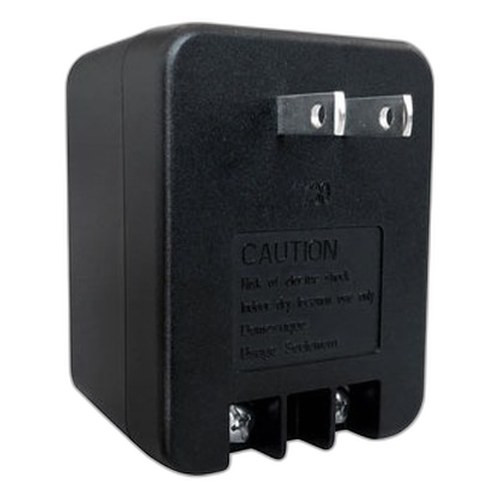

Aiphone PT-1210NA 12V AC Transformer for Intercom Systems
Overview
The Aiphone PT-1210NA is a UL-listed Class 2 auxiliary power transformer designed to supply stable 12V AC power to intercom systems, door release mechanisms, and access control applications. This compact unit delivers 10VA (830mA) output capacity from 15W input power consumption, making it suitable for small to medium-scale intercom deployments where distributed auxiliary power is required. The PT-1210NA integrates directly into Aiphone's intercom ecosystem and pairs effectively with door stations, master units, and access control hardware across residential, commercial, and light industrial facilities.
Key Features
- 12V AC Output at 10VA (830mA): Delivers stable AC 12V to multiple intercom door stations or single high-current release mechanisms. AC supply avoids DC ripple issues that can degrade audio circuits in intercom systems.
- UL Class 2 Certification: Safety-certified for low-voltage auxiliary power circuits; eliminates the need for additional safety compliance review on intercom panel layouts.
- Compact Plug-In Form Factor: Measures 2-7/8" H × 1-15/16" W × 1-11/16" D, allowing installation in tight electrical enclosures, network closets, or distributed door station cabinets without consuming significant real estate.
- Wall and Pole Mount Capability: Flexible mounting options support rapid deployment in both rack-mounted control panels and standalone wall installations, reducing field fabrication time.
- Operating Temperature Range 32°F to 104°F (0°C to 40°C): Rated for standard indoor environments; verify ambient conditions in unheated mechanical rooms or outdoor-adjacent cabinets before deployment.
- Industrial-Grade Build: Proven field reliability across Aiphone's intercom product line; no exotic components or proprietary connectors that complicate spare parts logistics.
Integration & Compatibility
The PT-1210NA integrates seamlessly with Aiphone's intercom product family, including 1-call master stations (LEM-1DL, LEM-1DLC), surface-mount and flush-mount door stations (LE-D, LE-DA, LE-SS/A, LE-SS-1G, LE-SSR), and multi-gang substations (LS-NVP/C). Audio door stations such as the AX-DM mullion-mount model pair effectively with this transformer. The PT-1210NA supports hybrid intercom-and-access deployments when integrated with Aiphone's AC Series Access Control system and AC Nio solutions, providing coordinated power management across door release and system supervision circuits. Common specification scenarios include Access Sentry sets (LEM-1DLS) and organized panel installations using conduit boxes (SBX-CON1, SBX-1G).
Deployment Considerations
Load calculation is essential: the 830mA output supports single or dual standard door stations with electromechanical door locks. If driving multiple zones simultaneously or higher-current solenoid locks, verify total draw does not exceed 10VA before commitment. The compact plug-in design eliminates field mounting labor, but confirm outlet accessibility in your cabinet layout. AC 12V output is inherently more forgiving than DC in noisy electrical environments typical of access control rooms, reducing audio crosstalk risk.
Why Choose the PT-1210NA
Select this transformer when you need certified, compact auxiliary power for small Aiphone intercom deployments without the footprint penalty of larger industrial power supplies. Its UL Class 2 listing accelerates compliance sign-off on mixed intercom-and-access control system designs. The plug-in form factor and flexible mounting make it ideal for retrofit projects where space in existing electrical panels is already constrained. It is not suitable for high-current door locks (over 830mA draw) or outdoor installations requiring heavier-duty power supplies.
Frequently Asked Questions
Q: Can the PT-1210NA power multiple door stations simultaneously?
A: Yes, provided the total current draw does not exceed 830mA (10VA). A typical door station draws 200–400mA. Two standard stations would operate reliably; three or more requires load calculation against your specific hardware specs.
Q: Is the PT-1210NA Class 2 listing required for my installation?
A: UL Class 2 certification is essential in jurisdictions requiring low-voltage auxiliary power to be pre-certified. It eliminates additional field inspection requirements and speeds project closeout. Check local electrical code for your facility type.
Q: What's the difference between the PT-1210NA and larger Aiphone transformers?
A: The PT-1210NA is optimized for compact, distributed power in small intercom systems. Larger models deliver higher VA capacity (typically 20–40VA) for multi-station, multi-release deployments. Choose based on total simultaneous load.
Q: Does the PT-1210NA include a power cord?
A: The PT-1210NA is a plug-in unit. Confirm availability of a standard AC outlet near your installation point; if outlet access is limited, plan for electrical conduit run during site prep.
Q: Can I wall-mount the PT-1210NA outdoors?
A: The operating temperature range is 32°F to 104°F (0°C to 40°C). Outdoor or unheated spaces that fall outside this range require either enclosure or a different transformer model rated for extended temperature extremes.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Aiphone PT-1210NA during several intercom retrofit projects, and it remains a solid, no-nonsense auxiliary transformer for small-to-mid-scale deployments. The UL Class 2 certification and compact form factor make this unit straightforward to specify and install without unnecessary complexity or compliance friction.
Technical Highlights:
- 830mA Output Capacity: Sufficient for single or dual door stations with standard electromechanical release mechanisms. Load verification is non-negotiable if you're driving multiple zones simultaneously or high-current solenoid locks — a 400mA door station plus a 500mA strike leaves no margin for two simultaneous draws.
- 12V AC Output Regulation: AC supply avoids the DC ripple noise that can degrade intercom audio circuits in electrically noisy cabinet environments. This is particularly valuable in mixed access control and intercom deployments where AC ground reference keeps audio cleaner than a dedicated DC supply might.
- Compact Footprint (2-7/8" × 1-15/16" × 1-11/16"): Fits standard DIN rail vertical space and retrofit panel layouts where real estate is already spoken for. No external fan or large heatsink to manage airflow around.
Deployment Considerations:
- The 32°F to 104°F operating window is tight for unheated mechanical rooms or outdoor-adjacent cabinets — confirm ambient conditions during winter before you commit.
- Plug-in design means you need a live AC outlet within reach. If the control panel is in a conduit run or remote enclosure, budget conduit and outlet installation as part of site prep.
The PT-1210NA is best-fit for distributed auxiliary power in small Aiphone intercom deployments where footprint matters and compliance documentation is required. It's not the choice if you're driving multiple high-current door locks or expect temperature extremes — in those cases, specify a larger VA-rated transformer or industrial-grade supply. For a single- or dual-station retrofit with certification requirements, it eliminates field headaches.
