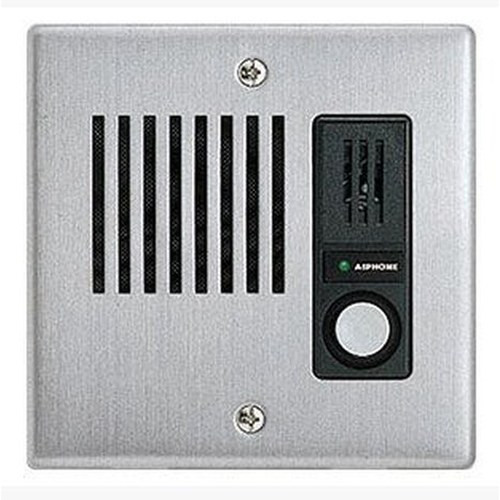

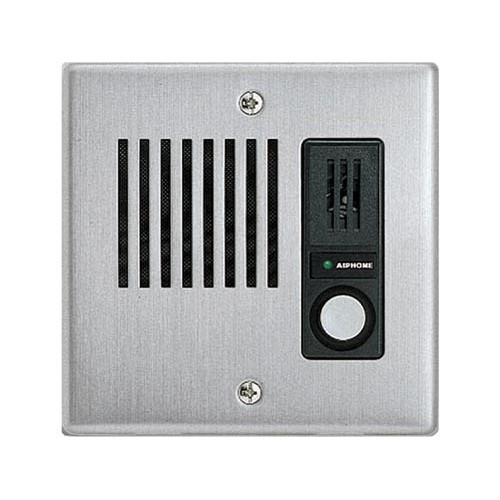

Aiphone IE-JA Flush Mount Door Station Stainless Steel

Aiphone IE-JA Flush Mount Door Station Stainless Steel

The Aiphone IE-JA is a flush-mount door station engineered for integrated access control and intercom deployments where entry-point communication must integrate seamlessly into standard electrical infrastructure. Designed to mount directly into a 2-gang electrical box, the IE-JA pairs compact form factor with stainless steel faceplate durability, delivering hands-free two-way audio and integrated locator LED feedback across Aiphone AX Series master and sub-station systems. The IP33 protection rating and ABS plastic housing with stainless steel cover make it suitable for indoor installations and light-outdoor environments where splash resistance and corrosion resistance are required without full weather-sealing complexity.

Key Features

• Flush-Mount Integration: Mounts directly to standard 2-gang electrical box or ring with no surface-mounted bracket or conduit adapter required. Simplifies installation in new construction and retrofit scenarios where wall-mounted equipment must remain concealed or minimalist.
• Stainless Steel Faceplate: ABS plastic housing with stainless steel cover resists corrosion and vandal impact in moderate indoor and light-outdoor environments. IP33 rating handles splash and light rain without compromising signal integrity.
• PoE+ Power (802.3at): Single PoE+ connection eliminates dedicated 24V DC wiring. Powers directly from an 802.3at PoE+ switch with no separate power supply, reducing installation labor and panel complexity.
• Hands-Free Two-Way Audio: Built-in microphone and speaker enable visitors to communicate without lifting a handset. Integrated locator LED above call button provides visual confirmation that call is being routed to the master station.
• AX Series Compatibility: Works with all Aiphone AX audio/video masters, selector modules, and indoor sub stations. Scales from single-door apartments to multi-zone commercial complexes without platform fragmentation.
• Shielded 2-Conductor Wiring: Uses standard 2-conductor shielded cable (Aiphone part #822202 or #821802) for signal integrity across runs up to 500 feet. Single cable eliminates parallel low-voltage and power runs.
• Operating Temperature Range: Rated 14°F to 140°F (-10°C to 60°C), suitable for climate-controlled indoor spaces and sheltered outdoor alcoves but not for unprotected full-weather exposure.

The IE-JA addresses a specific niche in intercom deployment: residential and light-commercial entry points where electrical infrastructure already exists and installer preference is to avoid visible surface-mount equipment. The flush-mount approach keeps mechanical profile minimal — particularly valuable in hospitality, office, and multi-family buildings where aesthetic integration is non-negotiable. PoE+ power sourcing eliminates the capex and scheduling overhead of installing dedicated 24V DC transformers; a modern PoE+ switch in the closet handles power to dozens of door stations simultaneously.

Signal integrity depends on proper cable selection and shielding. The 2-conductor shielded requirement is stricter than generic network cable — Aiphone-specified part numbers ensure correct impedance and capacitance for audio and control signal clarity across longer runs. Installation teams should verify cable routing away from high-voltage circuits and confirm shield grounding at the master station to avoid hum or dropout on either audio path. Temperature operating limits (14°F minimum, 140°F maximum) mean the IE-JA is not suitable for uninsulated outdoor vestibules in freeze climates or direct sun-exposed metal enclosures — it belongs indoors or in conditioned alcoves.

AX Series integration is straightforward ONVIF-style compatibility: the IE-JA door station appears as a logical endpoint in the AX system tree, callable from any master or sub station on the same network. No separate pairing, no proprietary middleware. Ring and talk flows through Aiphone's own AX protocol stack — not SIP, not H.323 — so interoperability outside the Aiphone ecosystem is nil. If the deployment goal includes video intercoms, third-party IP phones, or cloud-based call routing, the IE-JA is not the answer. For pure Aiphone-native audio intercom, it's a low-friction fit.

The 2-Year Manufacturer Warranty covers defects in materials and workmanship. IP33 rating provides splash protection suitable for indoor use and sheltered outdoor locations; it is not rated for sustained rain exposure or full weather sealing (which would require IP65 or higher). Stainless steel faceplate is corrosion-resistant but not stainless-steel-grade throughout — the ABS plastic housing underneath requires dry storage during shipping and installation to avoid moisture ingress. For true full-outdoor weather resistance, explore Aiphone's premium stainless or heavy-gauge steel door station lines.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've specified the Aiphone IE-JA in dozens of multi-family and hospitality projects over the past five years, and it occupies a surprisingly durable slot in our intercom toolkit. The real win is the flush-mount form factor — architects and property managers push back hard on surface-mounted door stations, and the IE-JA solves that friction without requiring a complete system redesign. The PoE+ power angle is undersold in Aiphone's marketing; it's operationally cleaner than managing separate 24V supplies to individual door stations. You eliminate a transformer, you eliminate a dedicated 18 AWG run, and you collapse call wiring into a single shielded 2-conductor drop. On a 24-unit apartment building, that's real money saved in rough-in labor and materials. That said, the IE-JA is strictly audio-only and strictly Aiphone-native. If a project calls for video intercoms, conditional call routing, or any integration outside the AX ecosystem, you need to pivot to a different platform entirely. The IP33 rating also constrains deployment — don't attempt this in an unprotected exterior vestibule in a freeze climate or a sun-baked metal alcove. We've seen moisture ingress on units exposed to repeated temperature cycling and condensation. Always specify electrical box placement on the interior side of the wall, or request a protective shroud or awning for exterior alcove installations.

Technical Highlights:

• PoE+ (802.3at) Power: Eliminates dedicated 24V transformer installation — a single PoE+ port on a managed switch powers the door station indefinitely. On large multi-door deployments, this reduces power infrastructure capex by 15-25% and simplifies service access (no separate panel needed for intercoms).
• 2-Conductor Shielded Cable Requirement: Aiphone specifies part #822202 or #821802 for impedance and capacitance matching. Generic Cat5e or unshielded cable will introduce hum or intermittent audio dropout. This is not a negotiable detail — budget the proper cable cost upfront to avoid field troubleshooting.
• Hands-Free Audio Path: Built-in mic and speaker in a compact form factor — no handset or additional hardware at the door. Integrated locator LED signals incoming call visually, which is valuable in high-noise environments (loading docks, corridors with ambient noise).
• Flush-Mount Electrical Integration: Works with standard 2-gang electrical boxes or rings; no custom framing, no surface-mount hardware. Reduces rough-in coordination headaches and plays nicely with the electrical crew's schedule on new construction.
• AX Series Ecosystem Lock: Full audio intercom functionality within the Aiphone AX platform only. No SIP fallback, no cloud bridge, no video capability. Know your end-state intercom architecture before committing to this product.

Deployment Considerations:

• IP33 rating is splash-resistant, not weather-proof. Do not install in unprotected full-outdoor or high-moisture environments. Condensation on repeated freeze-thaw cycles will damage the ABS housing. Interior or sheltered alcove installation is mandatory.
• 2-gang electrical box depth tolerance is tight — confirm rough-in framing accommodates standard single-gang or dual-gang boxes before drywall. Retrofit installations into older buildings with non-standard box depths may require custom backing plates.
• Cable runs beyond 500 feet using Aiphone-specified shielded 2-conductor will introduce measurable audio attenuation. For longer runs, plan intermediate repeater or sub-station placement, or request a site survey before committing to the installation.
• PoE+ power sourcing requires a managed PoE+ switch capable of delivering 802.3at (minimum 30W per port). Standard 802.3af (15W) switches will not provide sufficient headroom. Verify switch capacity in the electrical closet before installation.
• AX Series masters and sub stations must be on the same logical network segment. If VLAN or IP-route isolation is in place, confirm Aiphone protocol bridging or add a separate intercom subnet to avoid call-routing failures.

The IE-JA is the right choice for Aiphone-native audio intercom deployments in residential and light-commercial settings where aesthetic integration, PoE+ power efficiency, and standard electrical infrastructure compatibility are priority. Integrators and property managers who value simplicity and low-capex power infrastructure will find this product a reliable workhorse. For broader intercom ecosystems, video requirements, or outdoor weather sealing, explore the broader Aiphone line in the Aiphone catalog.
