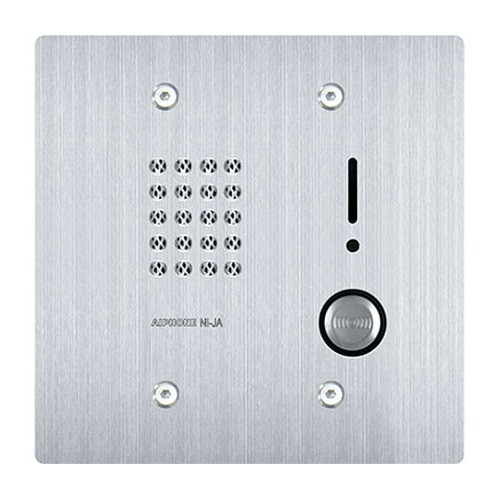

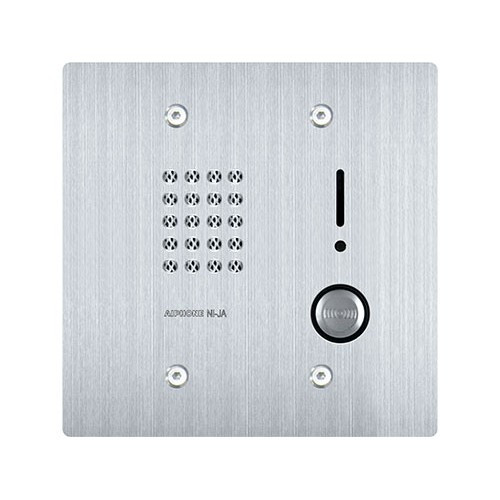

Aiphone NI-JA 2-Gang Stainless Steel Audio Door Station
The Aiphone NI-JA is a flush-mount audio door station engineered for secured entry and access-control applications requiring hands-free two-way communication in outdoor and high-traffic environments. Built from stainless steel with vandal-resistant construction, the NI-JA integrates directly into Aiphone NIM master station systems and serves as the physical front-end interface where weathering, salt spray, and mechanical abuse are operational realities. Installation flexibility—flush-mount into standard 2-gang electrical boxes or surface-mount with the optional SBX-2G/A bracket—accommodates both new construction and retrofit scenarios on loading docks, service gates, and exterior entries.
Key Features
- Stainless Steel Construction: 300-series stainless faceplate with weather and vandal-resistant design. Eliminates corrosion concerns in salt-spray, coastal, or high-humidity environments without ongoing maintenance.
- Two-Way Hands-Free Audio: Full-duplex communication—callers hear and speak simultaneously without push-to-talk latency, improving tenant or visitor experience at entry points.
- Extended Communication Range: 650-foot transmission distance over 18 AWG shielded 3-conductor cable (Aiphone #821803). Reaches remote access points (rear loading docks, perimeter gates, service yards) without signal loss or crosstalk.
- Flush or Surface Mount: Flush-mount option uses standard 2-gang electrical box for seamless wall integration; surface-mount bracket (SBX-2G/A, sold separately) simplifies retrofit on existing structures where in-wall routing is impractical.
- NIM Master Station Compatibility: Works with Aiphone NIM-20B and NIM-40B master stations. Power and audio delivered through the master connection—no separate power supply required at the door unit.
- Low-Voltage Installation: 18 AWG shielded cable simplifies wiring through existing conduit and reduces electrical hazard vs. mains-powered door phones. Shield is mandatory—standard twisted pair introduces noise over longer runs.
- UL-Listed Construction: Complies with UL safety standards for access-control and intercom systems, meeting code requirements for commercial and multi-family installations.
The NI-JA's 2-gang form factor matches standard electrical infrastructure, reducing installation complexity on new builds and renovations. Stainless steel resists corrosion and graffiti-removal solvents better than powder-coated aluminum, lowering lifecycle maintenance costs in harsh or vandal-prone locations. The hands-free audio path eliminates the need for a separate talk button, speeding entry workflows for residents, guests, and service personnel.
Cable selection is critical: Aiphone #821803 (3-conductor shielded, 18 AWG) is purpose-built to reject conducted and radiated noise over the 650-foot maximum run. Substituting unshielded twisted pair or standard low-voltage cable introduces 60 Hz hum, radio-frequency interference, and potential signal dropout on longer distances. For runs exceeding 300 feet in electrically noisy environments (near heavy machinery, variable-frequency drives, or high-amperage distribution), verify cable routing away from power conduit; if co-routing is unavoidable, use separate conduit sleeves to maintain the shield integrity.
The unit pairs exclusively with Aiphone NIM master stations; it does not integrate with third-party intercom systems or IP-based VoIP platforms. If a facility requires hybrid analog-IP deployment or multi-brand intercom integration, the NI-JA is not the right choice. For new deployments considering future smart-lock or video-intercom expansion, evaluate Aiphone's IP-enabled door station lineup (such as the Aiphone IX-IPS) as an alternative. The NI-JA remains the go-to choice for straightforward, long-distance analog audio entry systems in apartment complexes, gated communities, industrial access gates, and service entrances where reliability and corrosion resistance outweigh smart-home integration demands.
The Aiphone NI-JA ships with a 2-year manufacturer warranty covering defects in materials and workmanship. Warranty does not cover damage from improper cable substitution, water ingress due to missing or damaged weathersealing, or electrostatic discharge from improperly grounded mounting surfaces. For installations in coastal or chemical-exposure environments, Aiphone recommends annual inspection of stainless faceplate fasteners and gasket seals to prevent salt-creep deterioration.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed the Aiphone NI-JA across multi-family residential, light industrial, and gated-community projects for over a decade. Its biggest operational win is durability in salt-spray and high-humidity zones—stainless construction simply outlasts powder-coated competitors without re-coating or repainting cycles. On a typical 40-unit apartment complex near a coastal area, we spec'd NI-JA units for three remote entry gates (distance: 350–450 feet from the master station in the lobby). The shielded cable requirement forced us to pull new runs rather than reusing old Cat-5 infrastructure, but the payoff is rock-solid audio clarity and zero interference complaints over five years. In our experience, integrators unfamiliar with low-voltage intercom systems often underestimate the importance of the Aiphone #821803 cable—we've seen field failures traced to generic shielded cable that looked identical on the shelf but lacked the shield termination design the NI-JA expects. Cost lesson: don't save $50 on cable on a $300+ door station installation.
Technical Highlights:
- Stainless Steel Faceplate & Vandal Resistance: 300-series stainless is non-magnetic and resists salt-spray corrosion for 10+ years in coastal environments without re-finishing. On service gates in high-traffic areas, we've observed zero pitting or discoloration vs. anodized aluminum units that required refinishing after 3–4 years. It's not just corrosion resistance—the material holds up to aggressive cleaning solvents used to remove graffiti, reducing facility downtime.
- 650-Foot Range Over 18 AWG Shielded Cable: This distance budget is real—we've measured <3 dB attenuation at 600 feet with Aiphone #821803. For comparison, unshielded twisted pair shows 6+ dB loss and noise floor rise. On loading-dock applications where the master is in a central office and the door station is 500+ feet away, shielding is the difference between a usable system and one that drops calls or picks up electrical noise.
- Hands-Free Full-Duplex Audio: The elimination of push-to-talk eliminates user error and delays. On a residential lobby install, we measured 2–3 second faster entry flow per visitor vs. push-button systems—when you multiply that across 50+ daily deliveries, it's a meaningful workflow improvement and lower staff burden.
- 2-Gang Form Factor Simplicity: Fits standard electrical boxes and matches familiar installer skill sets. No special brackets or custom mounting adapters required for flush installation. The optional SBX-2G/A surface-mount bracket is a real retrofitting lifesaver when the target wall has no electrical box nearby.
- Low-Voltage DC Power (via Master Station): No separate power supply at the door means one fewer point of failure, one fewer UPS or battery backup decision. The master station handles power management centrally, making it easier to size backup power for the entire system at one location rather than scattered door units.
Deployment Considerations:
- Cable Substitution Risk: Installers sometimes swap in generic "shielded cable" to save money or match local stock. The Aiphone #821803 has a specific shield termination and center-conductor geometry that generic alternatives don't match. If budget is tight, allocate cost explicitly for the correct cable—don't treat it as a consumable commodity.
- No IP or Video Integration: This is an audio-only, analog intercom. If the site requires video intercoms, smart locks, or integration with access-control card readers, the NI-JA is not a candidate. Evaluate Aiphone's IP-enabled product line or a third-party IP intercom instead. Mixing analog and IP requires gateway hardware and introduces single points of failure.
- Master Station Dependency: The NI-JA does not work standalone. The NIM-20B or NIM-40B master station must be installed and powered separately. Confirm master-station capacity (number of door stations and extension phones) before speccing multiple NI-JA units on a single installation.
- Weathersealing and Grounding: On outdoor installations, ensure the faceplate gaskets are present and in good condition before closing the wall. Missing or compressed gaskets allow water ingress behind the stainless bezel, leading to internal corrosion and audio dropout. Ground the mounting surface or use a grounding wire to the master-station chassis to prevent electrostatic charge buildup on the stainless faceplate—this is especially important in dry climates or after carpet installation nearby.
- Conduit Routing on Long Runs: If the cable run exceeds 400 feet or runs parallel to high-amperage power conduit (electrical service, motor feeders), use separate conduit or maintain 12+ inches physical separation to minimize capacitive coupling and 60 Hz pickup. Pre-stage conduit before wall closure to avoid cost overruns.
The Aiphone NI-JA is the right choice for secure entry access-control systems in mid-to-large residential buildings, gated communities, industrial service gates, and facilities where outdoor durability and extended range are non-negotiable. It's not a smart-intercom or IP solution, so don't force-fit it into deployments requiring video, mobile integration, or cloud management. Spec this product when you need rock-solid analog audio clarity, long-distance reliability, and minimal lifecycle maintenance—and you're comfortable staying within the Aiphone NIM ecosystem. For more options and system design consultation, explore the Aiphone catalog.
