Middle Atlantic 5AR21 Adjustable Rear Rack Rail for Slim 5 Series

Overview

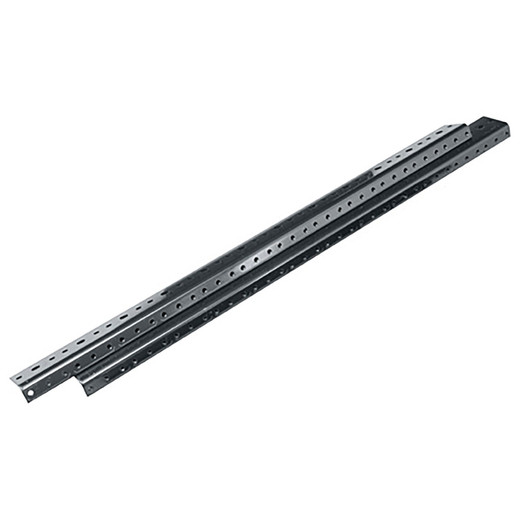

The Middle Atlantic 5AR21 is a replacement and supplementary adjustable rear rack rail engineered specifically for the Slim 5 series rack enclosures. Rated at 17 RU of usable rail space within a 36.75-inch usable height envelope, the 5AR21 gives integrators the ability to fine-tune rear equipment depth without modifying the enclosure itself — a practical necessity when mixing shallow and deep gear in a single cabinet. If you're building out a rack enclosure system and need rear rail flexibility for varying equipment depths, this is the component that makes it work cleanly.

Fabricated from steel with a black e-coat finish, this rail is sized to 20 inches in depth and a slim 0.68 inches in width — purpose-matched to the tight clearances inside the Slim 5 frame. The 10-32 threaded rail pattern is the standard found across pro-AV and security rack equipment, meaning virtually any cage-nut-free gear with 10-32 captive hardware will mount without adapter plates.

Key Features

• 17 RU Capacity, 36.75-Inch Usable Height: Seventeen rack units of mounting space in a 36.75-inch (93.3 cm) usable column means you're not wasting vertical real estate in a Slim 5 cabinet. That's enough room for a mid-density NVR stack, patch panels, and a power distribution unit without cramming them onto front rails alone.
• 20-Inch Depth (50.8 cm): The 20-inch rail depth accommodates the majority of 1U and 2U security appliances — NVRs, managed switches, and access control servers — that commonly populate physical security racks. Shallower gear mounts equally well with the adjustment range.
• 10-32 Threaded Rail Pattern: Standard 10-32 threading eliminates the cage nut step entirely. Equipment with integrated 10-32 screws drops in directly, cutting rack build time on dense deployments. This is the pattern you'll find on Middle Atlantic, rack-mount power distribution units, and most current-generation network hardware.
• Adjustable Rear Positioning: The adjustable mounting design lets you slide the rear rail fore-and-aft within the Slim 5 enclosure to match equipment depth — critical when you're mixing, say, a 12-inch-deep NVR with a 20-inch-deep UPS in the same bay. Without this adjustment, deep gear either overhangs unsupported or front-mounts with no rear constraint.
• Black E-Coat Steel Finish: Electrophoretic coating (e-coat) on steel provides uniform corrosion resistance including inside threaded holes and rail cutouts where spray paint doesn't reliably penetrate. In a security head-end closet or IDF where humidity can be a factor, that matters for long-term rail integrity.
• Slim Profile — 0.68 Inches Wide: At just 0.68 inches (1.7 cm) wide, this rail doesn't steal usable interior width from an already-compact Slim 5 enclosure. Slim 5 cabinets are chosen specifically for space-constrained installs; an over-built rail defeats the purpose.
• Slim 5 Series Base Compatibility: Designed as a matched component for the Slim 5 series, so hole patterns, mounting points, and adjustment travel are pre-aligned — no drilling, no shimming, no improvised brackets. Use it as a factory replacement or as a second rear rail when the enclosure configuration requires it.

Integration & Compatibility

The 5AR21 is a Middle Atlantic Slim 5 series-specific component. It is not a universal rack rail — do not order it for standard EIA 19-inch open-frame racks or for Middle Atlantic's non-Slim-5 enclosures (the C3, BGR, or ERK series use different rail geometry). Confirm your enclosure model against the Slim 5 base series before ordering.

The 10-32 threaded pattern is compatible with equipment from virtually all major security and networking vendors — Axis, Hanwha, Milestone appliances, Cisco, and Fortinet rack-mount hardware all use 10-32 captive screws as standard. If you're sourcing a complete rear-rail rack accessory set, pair this rail with the matching front rail and vertical cable management to maintain airflow discipline inside the Slim 5 frame.

For integrators specifying a full rack build, review the rack planning and cable management guide to confirm rail depth selection against the equipment list before the enclosure ships — rear rail adjustments are easiest before equipment is populated.

Frequently Asked Questions

Q: What rack enclosure series is the 5AR21 designed for?

A: The 5AR21 is engineered specifically for Middle Atlantic's Slim 5 series rack enclosures. It is not compatible with other Middle Atlantic enclosure families or generic EIA open-frame racks.

Q: How many rack units does the 5AR21 support?

A: The 5AR21 provides 17 RU of rail space within a 36.75-inch (93.3 cm) usable height envelope.

Q: What thread pattern does the 5AR21 use?

A: It uses standard 10-32 threading, which is compatible with the captive screws found on most current rack-mount security, networking, and AV equipment — no cage nuts required.

Q: What is the rail depth on the 5AR21?

A: The 5AR21 has a 20-inch (50.8 cm) depth, accommodating the majority of 1U and 2U rack-mount appliances used in physical security and IT deployments.

Q: What material and finish is used on the 5AR21?

A: The rail is fabricated from steel with a black e-coat (electrophoretic) finish, which provides uniform corrosion resistance including inside threaded holes.

Q: Can I use the 5AR21 as a replacement rail if my original rear rail is damaged?

A: Yes — provided your enclosure is a Slim 5 series model. The 5AR21 is the correct replacement rear rack rail for that specific series. Verify your enclosure base series before ordering.

Ted Perry

The 5AR21 looks simple on paper — it's a rear rack rail — but the detail that matters most in practice is that 20-inch depth combined with the adjustable fore-aft positioning inside the Slim 5 frame. I've seen integrators order fixed-depth rear rails and then discover mid-install that a 17-inch-deep NVR and a 24-inch-deep UPS can't both be rear-supported without one of them riding on thin air. The 5AR21 solves that before it becomes a site problem.

Technical Highlights:

• 17 RU / 36.75-inch usable height: Seventeen rack units is a practical mid-density column — enough for a 4U NVR, a managed PoE switch, a patch panel, and a 1U PDU with room to spare, all rear-supported rather than front-cantilevered.
• 10-32 threaded pattern: No cage nut installation step means faster rack builds. On a 17U column fully populated, that's 34–68 fewer cage nuts to press and align — meaningful on a multi-rack head-end build with a tight commissioning window.
• Black e-coat steel: E-coat penetrates recesses and threads where spray finishes fail. In a security closet without climate control, that's the difference between a rail that still looks and functions correctly in five years and one that seizes at the adjustment slots.

Deployment Considerations:

• Confirm the enclosure base series is Slim 5 before ordering — the 5AR21's mounting geometry is specific to that line. Using it in a non-Slim-5 Middle Atlantic enclosure will result in misaligned hole patterns and non-adjustable fit.
• The 0.68-inch rail width is tight by design for the Slim 5 interior — do not substitute a wider universal rail expecting the same clearance. Interior cable routing and side-panel clearance in the Slim 5 are dimensioned around this rail profile.

For security head-end closets where the Slim 5's compact footprint is the reason it was specified, the 5AR21 is the correct rear rail to maintain that form-factor discipline — particularly in telecom room builds where rack depth is constrained and equipment depth varies across the NVR, switch, and power layer.
