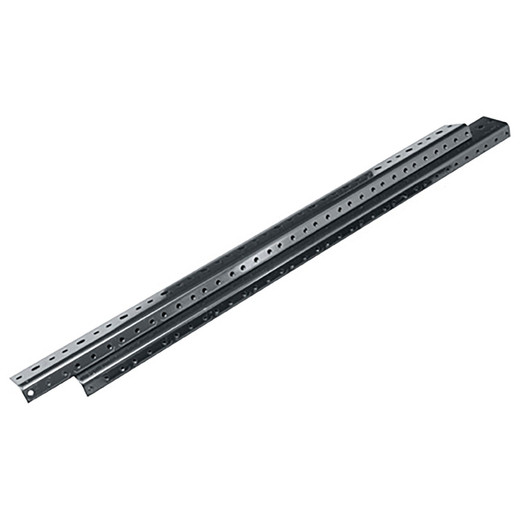

Middle Atlantic 5AR37 Adjustable Rear Rack Rail for Slim 5 Series

Overview

The Middle Atlantic 5AR37 is a factory-replacement adjustable rear rack rail designed specifically for Slim 5 series enclosures in the 5-37 size range. If you're expanding an existing Slim 5 cabinet or replacing a damaged rail, this is the part — it covers 30 RU of usable mounting space across a 64.75-inch usable height, and the adjustable depth lets you reposition equipment without modifying the cabinet. For integrators building out Middle Atlantic rack enclosures or specifying spares for ongoing service contracts, having the correct rail on hand eliminates the most common cause of delayed equipment installs.

Key Features

• 30 RU / 64.75 in Usable Height: Full-height coverage for the 5-37 enclosure — enough vertical real estate to rack a mix of NVRs, patch panels, switches, and power distribution without compromising cable management clearance above or below.
• Adjustable Depth (20 in / 50.8 cm): The 5AR37 slides fore-and-aft to match the depth of the equipment being racked. Heavy network switches and UPS units that extend past standard rack depth can be properly supported rather than cantilevered on front rails alone — a common cause of chassis flex and connector stress over time.
• 10-32 Rack Rail Threading: Standard 10-32 tapped holes are compatible with the overwhelming majority of commercial rack-mount hardware — NVRs, managed switches, access control panels, AV equipment. No cage nuts required, which speeds up installs and eliminates the cage-nut-dropping problem in tight enclosures.
• Steel Construction with Black E-Coat Finish: The e-coat finish isn't just cosmetic — it provides consistent corrosion resistance without the thickness variation of powder coat, which matters when rack-unit alignment tolerances are tight. Steel construction handles the static load of dense rack fills without deflection that would bind slide-mounted equipment.
• Slim 5 Series Compatibility: Engineered specifically for the Slim 5 cabinet family. Slim 5 enclosures are a common choice in AV-over-IP, physical security, and distributed IT closets where footprint is constrained — this rail keeps those installs field-serviceable without sourcing a generic substitute that may not align correctly.
• 0.68 in Width Profile: The narrow rail width preserves interior clearance on both sides of the rack — relevant when you're running dense cable bundles alongside equipment or mounting vertical cable managers inside the enclosure.

Integration & Compatibility

The 5AR37 is rated for the Slim 5 series rack enclosures in the 5-37 configuration. Before ordering, confirm your enclosure model matches the Slim 5 / 5-37 base series — Middle Atlantic produces multiple rail families across their enclosure lineup and cross-series fitment is not guaranteed. The 10-32 thread pattern is compatible with standard commercial rack equipment from virtually all manufacturers. If you're specifying a full rack accessory kit for a new deployment, verify front rail, rear rail, and side panel compatibility as a matched set. Shipping weight is 14 lbs — factor this into freight planning for multi-unit orders on larger installations.

Frequently Asked Questions

Q: What enclosure series is the 5AR37 designed for?

A: The 5AR37 is designed specifically for Middle Atlantic Slim 5 series enclosures in the 5-37 size range. It is not a universal rail and should be matched to the correct enclosure model before ordering.

Q: What rack unit capacity does the 5AR37 provide?

A: The 5AR37 provides 30 RU of rack mounting capacity, with a usable height of 64.75 inches (164.5 cm).

Q: What thread type does the 5AR37 use?

A: The 5AR37 uses 10-32 tapped rack rail threading, which is compatible with standard commercial rack-mount hardware and does not require cage nuts.

Q: Is the depth of the 5AR37 adjustable?

A: Yes. The 5AR37 is an adjustable rear rail with a depth of 20 inches (50.8 cm), allowing repositioning to support equipment of varying depth within the enclosure.

Q: What is the finish and material of the 5AR37?

A: The rail is constructed from steel with a black e-coat finish, which provides corrosion resistance and maintains tight dimensional tolerances for accurate rack unit alignment.

Eden Phillips

The detail I always flag for integrators on the 5AR37 is the 10-32 tapped rail — not because it's exotic, but because it eliminates cage nuts in a 30 RU enclosure where you're likely installing 20+ pieces of equipment. That's 40+ cage nuts you're not fighting with in a tight cabinet, and it meaningfully speeds up both initial build and any future hardware swaps. This is a purpose-built rear rail for the Slim 5 / 5-37 enclosure, not a generic substitute.

Technical Highlights:

• 30 RU Usable Height: At 64.75 inches of usable rail, you have full-height coverage for dense security and AV-over-IP rack fills — NVRs, PoE switches, patch panels, and power distribution can all coexist without sacrificing vertical space.
• 20-Inch Adjustable Depth: The adjustable rear rail accommodates equipment that runs deeper than the standard 19-inch rack depth — important when racking managed switches or UPS units that extend toward the rear of the cabinet.
• Black E-Coat Steel: E-coat finish holds tighter dimensional tolerances than powder coat, which matters when you're aligning rack units across front and rear rails — a misaligned rear rail is one of the most common causes of chassis binding on slide-mounted equipment.

Deployment Considerations:

• Confirm your enclosure is a Slim 5 series 5-37 before ordering — Middle Atlantic produces multiple enclosure families and rail fitment is series-specific, not interchangeable across product lines.
• At 14 lbs shipping weight, this is a single rail — factor accordingly for multi-enclosure deployments where you may need several units shipped to a single site.

The 5AR37 is the right call for security operations centers, IT closets, and AV-over-IP head-end racks built on Slim 5 enclosures — specifically where you need a replacement or additional rear rail that aligns correctly and supports a full 30 RU of commercial rack-mount gear without improvising with a non-OEM substitute.
