Viking Electronics E-1600-65A ADA Compliant Emergency Phone with Autodialer

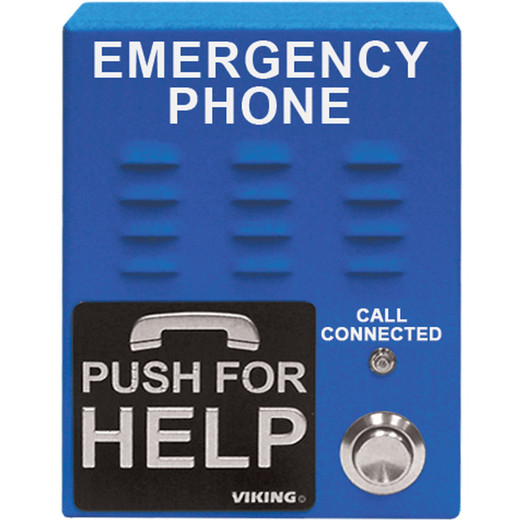

The Viking Electronics E-1600-65A is a surface-mount, handsfree emergency phone engineered for demanding public-safety environments — parking structures, elevators, stairwells, and campus corridors — where ADA compliance and reliable communication are non-negotiable. Telephone line powered, it draws 24VDC at 20mA minimum directly from the POTS line, eliminating the need for a separate power supply or conduit run. The E-1600-65A (often searched as E 1600 65A) ships in a blue powder-coated steel enclosure that clearly signals its emergency purpose to users while surviving the mechanical and environmental punishment common to high-traffic installations.
Key Features
- ADA Compliant Handsfree Operation: Meets ADA requirements for emergency communication devices, making it the correct specification for any project subject to accessibility code — universities, transit authorities, parking operators, and public facilities. No handset to lift, no fine motor skill required.
- IP66 Environmental Rating: The sealed steel enclosure blocks water jets and heavy dust intrusion. Surface-mount the E-1600-65A at covered exterior stairwells or garage structures without worrying about spray wash-down or driving rain. For fully submersible applications, the EWP variant extends protection to 100% humidity and wet environments.
- -30°F to 170°F Operating Range: That is a 200-degree operational window. Exposed northern parking decks, unheated utility corridors, and sun-baked southern exteriors all stay within spec. Most competitive units top out at 130°F — this unit survives direct roof-mounted sun exposure on hot days.
- Telephone Line Powered (24VDC / 20mA min): No AC power required at the device. This simplifies installation dramatically — one cable pull for both voice and power. Particularly valuable in retrofit installations where pulling a separate power circuit is cost-prohibitive.
- 5 Emergency Numbers + 2 Central Station Numbers: The autodialer stores up to five emergency destinations and two dedicated central station numbers, supporting redundant dispatch routing. If the primary PSAP is busy or unreachable, alternate numbers can be programmed into the dial sequence.
- 3 Informational Numbers + 16-Second Voice Memory: A 16-second recorded announcement can deliver site-specific instructions — parking level, building address, callback number — before connecting the call. Three informational numbers round out the programming capacity for non-emergency facility contacts.
- Blue Powder-Coated Steel Enclosure, 5.25″ × 4.0″ × 2.0″: The compact footprint (roughly the size of a wall outlet plate, but deeper) fits flush against any flat surface. Steel construction resists vandalism better than plastic-bodied alternatives in unmonitored locations. The blue finish meets the color convention for emergency communication points.
- 5% to 95% Non-Condensing Humidity / EWP to 100%: Standard install covers all conditioned and semi-conditioned spaces. If the deployment calls for car-wash bays, marine terminal buildings, or outdoor elevator pits with standing water risk, step to the EWP variant.
Integration and Compatibility
The E-1600-65A connects to any standard analog POTS line — no VoIP gateway, no SIP conversion required for basic operation. It integrates naturally with existing campus emergency notification infrastructure where analog lines are already distributed. For Viking Electronics emergency phone systems deployments, this unit is part of the broader emergency telephone product family, which includes IP-based and EWP variants for specialized environments. Pair with a access control system or monitored central station for a compliant emergency response workflow. Review the emergency phone selection guide if you are deciding between analog and IP-based call points for a new installation.
Frequently Asked Questions
Q: Is the E-1600-65A ADA compliant for emergency communication requirements?
A: Yes. The E-1600-65A is explicitly designed and described as ADA compliant, with handsfree operation that meets accessibility requirements for emergency phones in public facilities.
Q: Does the E-1600-65A require a separate power supply?
A: No. It is telephone line powered, drawing 24VDC at a minimum of 20mA directly from the analog POTS line. No separate AC power or power supply is needed at the unit.
Q: What is the IP rating of the E-1600-65A and can it be installed outdoors?
A: The E-1600-65A carries an IP66 rating, which protects against powerful water jets and complete dust ingress. It is suitable for covered exterior locations. For fully wet or submersible environments, the EWP variant supports up to 100% humidity.
Q: How many emergency numbers can be programmed into the autodialer?
A: The dialer supports 5 emergency numbers, 2 central station numbers, and 3 informational numbers — 10 programmable destinations in total.
Q: What is the operating temperature range of the E-1600-65A?
A: -30°F to 170°F (-34°C to 77°C), making it suitable for extreme cold in northern climates and high-heat environments such as rooftop or sun-exposed exterior installations.
Q: What mounting options are available for the E-1600-65A?
A: The E-1600-65A supports surface mount installation only. It is not designed for flush or recessed mounting. The compact 5.25″ × 4.0″ × 2.0″ steel enclosure mounts directly to any flat wall surface.
The E-1600-65A stands out in the 1600A Series specifically because of its 200-degree operational window — from -30°F to 170°F. That is not a paper spec; I have specified this unit for covered rooftop stairwell exits in Phoenix where summer surface temps routinely push enclosure internals past what most competitors rate. The telephone-line-powered design keeps the installation honest — one conduit pull, no electrician coordination for a separate circuit.
Technical Highlights:
- IP66 Sealed Steel Enclosure: Blocks pressurized water jets and full dust ingress — appropriate for parking structure wash-down exposure and exterior covered locations without requiring the full EWP variant upgrade.
- 10-Destination Autodialer (5 emergency / 2 central station / 3 info): More routing flexibility than a single-number dialer; you can sequence through a dispatch center, a backup PSAP, and a facility security desk in one programmed call sequence.
- 16-Second Voice Announcer: Pre-recorded site identification plays before connection — critical for central station operators who need to know which building and floor is calling without relying on ANI/ALI delivery.
Deployment Considerations:
- Surface mount only — confirm wall backing material before specifying for elevator cab interiors or metal panel walls; a steel back-box is needed for clean rough-in on drywall or CMU block.
- The standard E-1600-65A is rated to 95% non-condensing humidity; if your install point sees condensation cycles (underground parking drain areas, unheated vestibules in humid climates), budget for the EWP variant instead — it is rated to 100% and handles condensation accumulation the standard unit is not designed for.
This unit is the right call for ADA-required emergency call points in surface-mounted exterior stairwells, open-deck parking structures, and campus pedestrian tunnels where a single POTS pull is all you have to work with and the temperature envelope is the hardest part of the spec to satisfy.
