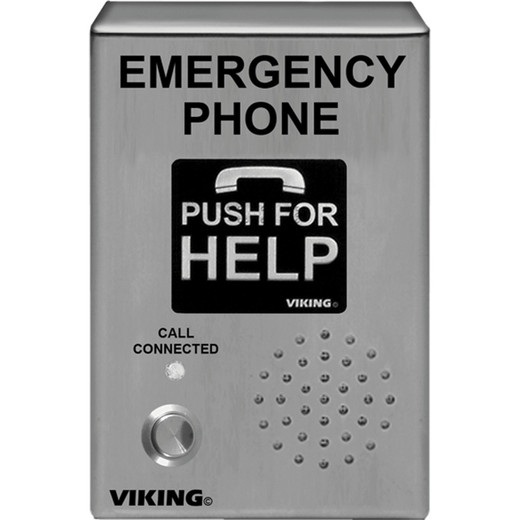

Viking E-1600-03B-EWPCE ADA Emergency Phone IP66 Surface Mount

Viking Electronics E-1600-03B-EWPCE ADA Emergency Phone with Enhanced Weather Protection

Overview

The Viking Electronics E-1600-03B-EWPCE is a surface-mount, handsfree emergency phone built for demanding outdoor and high-abuse environments where reliability under adverse conditions is non-negotiable. Constructed from marine-grade 316 brushed stainless steel and rated IP66, it delivers ADA-compliant emergency communication across parking structures, elevator lobbies, campus pathways, and industrial facilities. The unit is telephone-line powered — no batteries, no external power supply, no additional power circuit to install — and carries a CE Mark for deployments requiring European compliance. At 7.22" x 5.36" x 1.55" and 3 lbs, the E-1600-03B-EWPCE fits standard surface-mount conduit boxes without bulky housing additions.

Key Features

• Marine-Grade 316 Stainless Steel Panel: Grade 316 alloy resists chloride corrosion, making it the correct choice for coastal installations, pool decks, and salt-air-exposed parking garages where lower-grade enclosures pit and corrode within a few seasons. The brushed finish also reduces visible scratches from everyday contact.
• IP66 Enhanced Weather Protection (EWP): IP66 blocks powerful water jets from any direction — heavy rain, pressure washing, and sprinkler overspray won't compromise the electronics. If your deployment involves submersion risk (flood-prone areas), you'll need a higher rating; IP66 is the right spec for surface-exposed but non-submerged installations.
• Telephone Line Powered: The phone draws power directly from the POTS line, eliminating batteries and external power supplies entirely. This matters in retrofit projects where running a separate power circuit to a remote emergency phone location is cost-prohibitive or structurally impractical.
• -30°F to 170°F Operating Range: A 200-degree operational span covers everything from Minnesota winters to sun-baked desert parking structures. The low-end figure is particularly meaningful — most commercial enclosures struggle at temperatures below -20°F, so this rating provides real margin for northern climate installations.
• Up to 100% Humidity Rating: Full humidity tolerance means condensation, fog, and steam environments (covered aquatic centers, car wash facilities, steam tunnels) won't cause electrical failures from moisture ingress.
• Up to 5 Emergency Numbers with Non-Volatile Memory: Program up to five sequential callback numbers — primary dispatch, backup central station, facility security, local 911 relay. Non-volatile memory retains the dialing sequence through power interruptions, so the phone is ready immediately when the line restores.
• ADA Compliance with Grade 2 Braille Label: Meets ADA requirements including tactile identification via Grade 2 Braille — required in any public accommodation or federally funded facility. This is a code compliance item, not a feature option; specifying a non-ADA unit in covered facilities creates liability exposure.
• Call Connected LED Indicator: Visual confirmation that a call has connected is critical in noisy environments (loading docks, construction sites) where the caller can't rely on audio feedback alone. The LED gives a clear go/no-go signal without ambiguity.
• Handsfree Operation: No handset to vandalize, freeze, or cut. Handsfree design is the standard for public emergency phones precisely because it eliminates the most common failure point in high-traffic or high-abuse locations.

Integration & Compatibility

The E-1600-03B-EWPCE connects to any standard analog POTS telephone line and is compatible with common Central Station Monitoring equipment — no proprietary interface required. Surface mount installation is the only supported method for this model; recess or flush-mount applications require a different variant in the 1600 series. The CE Mark on the E-1600-03B-EWPCE (often searched as E 1600 03B EWPCE) confirms it meets European electromagnetic compatibility and safety directives for facilities requiring that compliance documentation. For IP-network-connected deployments, Viking's 1600-IP Series is the parallel product line using PoE power delivery instead of POTS.

Frequently Asked Questions

Q: Does the E-1600-03B-EWPCE require an external power supply or batteries?

A: No. The unit is powered entirely by the telephone line — no batteries and no separate power circuit are needed. It draws all required power from the connected POTS analog line.

Q: Can this phone be recessed or flush-mounted into a wall?

A: No. The E-1600-03B-EWPCE supports surface mount installation only. If a flush or recess mount is required, a different model in the Viking 1600 series should be specified.

Q: What is the IP rating and what does it cover?

A: The unit is rated IP66, meaning it is fully protected against dust ingress and against powerful water jets from any direction. It is not rated for submersion — if the installation area is subject to flooding or immersion, a higher IP rating (IP67 or IP68) is required.

Q: How many emergency numbers can be programmed, and are they retained during a power outage?

A: Up to 5 emergency phone numbers can be programmed in sequence. The phone uses non-volatile memory, so the stored numbers are retained through power interruptions without needing to be re-entered.

Q: Is the E-1600-03B-EWPCE ADA compliant?

A: Yes. The unit is ADA compliant and includes a Grade 2 Braille label to meet tactile identification requirements for public accommodations and federally funded facilities.

Q: What temperature range does this phone support?

A: The operating temperature range is -30°F to 170°F (-34°C to 77°C), covering severe cold climates and high-heat outdoor exposures such as sun-baked parking structures.

Ted Perry

The E-1600-03B-EWPCE stands out on one spec that integrators often underestimate: the -30°F to 170°F operating range. That 200-degree span isn't marketing copy — it's the difference between a phone that works on a Minnesota January morning and one that fails during the first hard freeze. I've specified Viking's 1600 series on municipal parking structures specifically because that cold-end rating provides genuine margin, not a squeaky pass at -20°F.

Technical Highlights:

• Marine-Grade 316 Stainless Steel: Grade 316 resists chloride pitting — relevant not just for coastal installs but for any structure where road salt spray or pool chemistry is in the air. Lower-grade enclosures become maintenance problems within 3-5 years in those environments.
• Telephone Line Power: Drawing power from the POTS line directly means no UPS coordination, no power circuit to the phone location, and no battery replacement schedule. In retrofit projects, that can cut rough-in labor cost significantly versus running a dedicated power feed to a remote location.
• Non-Volatile Memory for 5 Numbers: Sequential dialing to up to 5 numbers with memory retained through power loss means the unit is immediately operational when the line restores after an outage — no technician re-programming needed on recovery.

Deployment Considerations:

• Surface mount is the only supported installation method for this model — verify conduit box compatibility and wall depth before specifying. Flush-mount applications require a different 1600-series variant.
• IP66 covers rain, pressure washing, and sprinkler exposure, but is not a submersion rating. Installations in below-grade locations with flood risk or in areas subject to standing water require IP67 or IP68 — don't assume IP66 is sufficient for those scenarios.

The E-1600-03B-EWPCE is the right unit for covered outdoor walkways, campus parking structures, and industrial facility perimeters where ADA compliance, POTS integration, and genuine cold-climate reliability are all required in a single device — particularly on projects where running a separate power circuit to the phone location would add meaningful cost or complexity.
