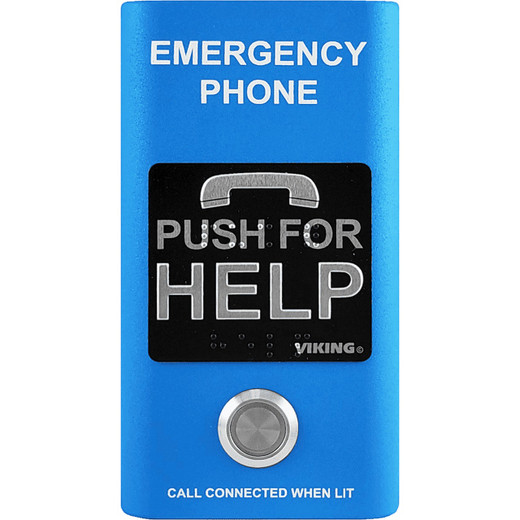

Viking Electronics E-1600-30A-EWPCE ADA Compliant Emergency Phone with Voice Announcer and Enhanced Weather Protection
Overview
The Viking Electronics E-1600-30A-EWPCE is an ADA-compliant, handsfree emergency phone engineered for standard analog telephone lines in applications where fast, reliable one-touch communication is non-negotiable. Designed for stairwells, parking structures, elevator lobbies, and campus corridors, this unit ships ready for flush mounting with the included rough-in box or surface mounting using an optional VE-5x5 enclosure. The enhanced weather protection (EWP) variant and CE Mark make it suitable for installations that cross both indoor-outdoor boundaries and international compliance requirements.
The 1600A Series platform underlying this phone is built around analog telecom signal standards — a point worth flagging early: phone systems that fall outside standard analog specs may require compatibility verification before deployment.
Key Features
- Handsfree ADA-Compliant Operation: No handset to grab under stress. The unit activates with a single button press, meeting ADA requirements for emergency communication — critical for any project where life-safety code compliance drives the spec.
- Dual Mount Flexibility: Ships with a rough-in box for flush mounting into drywall or masonry. Add the optional VE-5x5 surface enclosure for retrofit installations where cutting into the wall isn't feasible — one SKU covers both scenarios.
- Voice Announcer: Built-in voice announcer confirms call status to the caller without requiring visual confirmation — useful in high-ambient-noise environments where a display isn't practical.
- Enhanced Weather Protection (EWP): The EWP designation means the phone is hardened against moisture ingress beyond a standard indoor unit — appropriate for covered outdoor entries, parking deck call stations, or any location with humidity exposure.
- Analog Line Compatibility with Defined Signal Tolerances: Operates to a minimum signal level of -22 dBm across dial tone, ringback, and busy signal detection (300–2000 Hz frequency range). Ringback cadence support spans 1 sec ON/1 sec OFF through 2.5 sec ON/5 sec OFF — broad enough to handle most PBX and PSTN configurations without custom tuning.
- Precise Busy Signal Detection: Detects standard busy at 450–550ms ON/OFF and fast busy at 150–300ms ON/OFF, so the phone correctly interprets both line-busy and network-congestion conditions and responds accordingly rather than leaving the caller in silence.
- CPC (Calling Party Control) Support: Recognizes CPC disconnect signals from 450ms minimum with no maximum ceiling — accommodates loop-current-drop disconnect signaling from virtually any analog CO or PBX that supports it.
- Minimum Ring Voltage Compliance: Operates down to 30VAC RMS at 20Hz and 25VAC RMS at 30Hz ring voltage — important on longer cable runs or systems with marginal ring generators, where lower-spec phones fail to detect incoming calls.
- CE Mark: Confirms electromagnetic compatibility and safety compliance for European deployments or projects requiring CE documentation for building permits.
Integration and Compatibility
The E-1600-30A-EWPCE connects to any standard analog (POTS) telephone line or analog port on a PBX/hybrid system. The defined signal tolerances (-22 dBm minimum, 300–2000 Hz) align with Telcordia/ITU analog standards. Systems operating outside these parameters — some hosted VoIP ATAs and proprietary hotel PBXs in particular — should be validated before bulk deployment. The unit does not support VoIP natively; an ATA is required for SIP environments.
Frequently Asked Questions
Q: Is the E-1600-30A-EWPCE compatible with VoIP phone systems?
A: The E-1600-30A-EWPCE is designed for standard analog telephone lines. VoIP systems require an analog telephone adapter (ATA) to provide a compatible analog interface. Compatibility depends on the ATA's ability to meet the unit's signal level and ring voltage requirements.
Q: What mounting options are available for the E-1600-30A-EWPCE?
A: The unit supports flush mounting using the included rough-in box, or surface mounting using the optional VE-5x5 enclosure sold separately.
Q: What does the CE Mark on the E-1600-30A-EWPCE indicate?
A: The CE Mark confirms the unit meets European electromagnetic compatibility and safety directives, making it suitable for projects requiring CE documentation in EU member countries or other CE-accepting jurisdictions.
Q: What is the minimum ring voltage the E-1600-30A-EWPCE will respond to?
A: The unit requires a minimum of 30VAC RMS at 20Hz or 25VAC RMS at 30Hz. On long cable runs or systems with marginal ring generators, verify your line meets these minimums before installation.
Q: Does the E-1600-30A-EWPCE meet ADA requirements?
A: Yes. The unit is specified as ADA compliant, supporting one-button handsfree operation as required for accessible emergency communication installations.
Q: What analog signal level does the E-1600-30A-EWPCE require?
A: The unit requires a minimum signal level of -22 dBm for dial tone, ringback, and busy signal detection, within a frequency range of 300–2000 Hz.
The E-1600-30A-EWPCE sits in a well-defined niche: ADA life-safety call points on analog infrastructure where you need a unit that handles the full range of analog signaling edge cases without babysitting. The -22 dBm minimum signal floor and 300–2000 Hz detection bandwidth mean this phone will work reliably on both fresh POTS drops and aging building wiring that's picked up noise over the years.
Technical Highlights:
- Ring Voltage Floor (30VAC @ 20Hz / 25VAC @ 30Hz): Lower than many competing units — directly relevant on runs exceeding 500 feet where ring voltage sag can cause missed incoming calls from a monitoring center.
- Fast Busy Detection (150–300ms ON/OFF): The phone distinguishes network congestion (fast busy) from a legitimately busy destination, which matters when you're troubleshooting why a call didn't connect — the phone won't silently fail.
- CPC Disconnect (450ms–unlimited): Broad CPC window means the phone releases the line correctly whether your PBX uses a tight 450ms loop-current drop or a longer disconnect pulse — no stuck calls.
Deployment Considerations:
- Verify your PBX or ATA delivers at least -22 dBm and standard 300–2000 Hz signaling before install — hosted VoIP ATAs with non-standard line simulation have caused detection failures on this class of phone in the field.
- The EWP rating covers moisture resistance for covered outdoor or high-humidity locations, but this is not a submersion-rated unit — avoid direct rain exposure without additional housing.
Best fit: university campus emergency call network, parking structure life-safety stations, or hospital corridor emergency points where ADA compliance, analog backbone, and dual-mount flexibility are all requirements in the same project.
