Viking E-1600-02A-EWP ADA Emergency Phone EWP Flush Mount

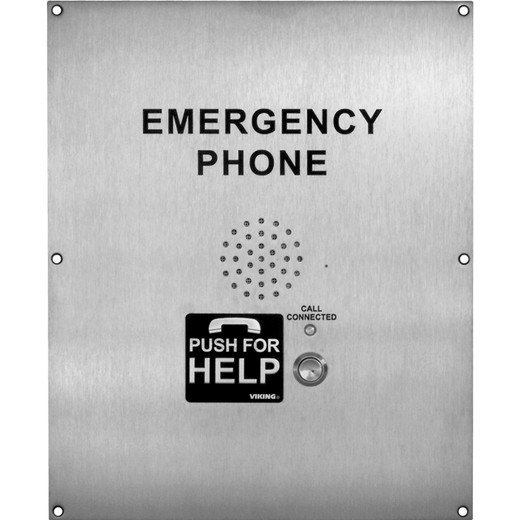

Viking Electronics E-1600-02A-EWP ADA Stainless Steel Emergency Phone with Enhanced Weather Protection

Overview

The Viking Electronics E-1600-02A-EWP is an ADA-compliant, handsfree emergency phone engineered for flush-mount deployment in environments where reliability and weather resistance are non-negotiable. Designed for any standard analog telephone line, this unit requires no batteries and no external power supply — it draws everything it needs from the phone line itself. That single constraint also defines its sweet spot: wherever you have POTS or a compliant analog loop, you have a fully operational emergency station with zero ongoing power infrastructure to maintain.

Built for emergency communication stations in parking structures, elevator lobbies, campus walkways, and industrial facilities, the E-1600-02A-EWP pairs a stainless steel housing with Viking's Enhanced Weather Protection (EWP) package — making it the outdoor-rated variant in the 1600A Series. If you're speccing for an indoor-only location without exposure risk, the non-EWP sibling E-1600-02A covers that use case at lower cost. For this unit, the EWP designation means it's the correct choice when the installation faces rain, condensation, or temperature cycling.

Key Features

• Phone-Line Powered, No External Power Required: The E-1600-02A-EWP draws power directly from the analog phone line — no conduit runs for AC, no battery maintenance schedules, no UPS sizing. In a parking garage or remote stairwell, that simplifies rough-in considerably and eliminates a common failure point.
• ADA-Compliant Handsfree Operation: Hands-free audio meets ADA requirements for accessible emergency communication. Callers don't need to pick up a handset, which matters in scenarios involving mobility impairment or injury — exactly when an emergency phone gets used.
• Voice Announcer with Auto-Dialer: On activation, the unit automatically dials a pre-programmed number and plays a recorded voice announcement — giving the monitoring station immediate location context before a dispatcher even speaks. This reduces response time on high-volume campuses where multiple emergency stations may activate.
• Enhanced Weather Protection (EWP): The EWP designation on the E-1600-02A-EWP indicates weatherproofing beyond the standard 1600A chassis. Flush-mount only — plan the rough-in opening and back-box accordingly. This is not a surface-mount unit.
• Analog Telecom Compatibility — With a Critical Caveat: The unit is designed for standard analog telephone loops. Viking explicitly notes that some phone systems do not conform to analog telecom standards and may not be compatible with the 1600A Series. Before speccing this into a VoIP-only or non-standard PBX environment, verify the loop characteristics against Viking's published signal requirements.
• Signal Sensitivity Down to -22 dBm: The -22 dBm minimum signal level means the unit will maintain reliable communication on long cable runs or attenuated loops — relevant in large facilities where the emergency phone may be far from the demarcation point.
• Ring Detection: 30VAC RMS at 20Hz (Primary), 25VAC RMS at 30Hz (Secondary): The dual ring voltage/frequency specification means the unit accommodates variation in ring signal delivery across different analog systems, reducing incompatibility surprises during commissioning.
• Busy and Ringback Tone Detection (300–2000 Hz): The unit monitors busy cadence (450–550ms ON/OFF standard, 150–300ms fast busy) and ringback (1–2.5 sec ON, 1–5 sec OFF) within the 300–2000 Hz band. This enables the auto-dialer to correctly interpret call progress and take appropriate action — hanging up on a busy signal rather than holding an open line indefinitely.
• Configurable Ring Count (2–9 or Disabled): The minimum ring count before the dialer acts is adjustable from 2 to 9 rings, or can be disabled entirely. In Central Station monitoring setups, this lets you match the dialer behavior to the dispatch protocol at the monitoring center.
• CPC Disconnect Support (450ms Minimum): The unit recognizes CPC (Calling Party Control) disconnect signals with a minimum pulse of 450ms and no maximum ceiling. Compatibility with Central Station Monitoring equipment for loop supervision is documented — relevant for AHJ submissions in jurisdictions requiring supervised emergency communication systems.
• Stainless Steel Flush-Mount Housing: The stainless steel faceplate resists vandalism and corrosion in high-traffic areas. Flush-mount installation integrates cleanly into wall surfaces in elevator lobbies, garages, and institutional corridors — no protruding surface box to snag or damage.

Integration & Compatibility

The E-1600-02A-EWP connects to any standard analog POTS line or analog port on a compatible PBX or VoIP gateway. Viking's own documentation flags that non-standard phone systems may not work — if your facility runs a hosted UCaaS platform with analog FXS adapters, test the loop voltage and ring characteristics against the published specs before finalizing the design. The unit is compatible with common Central Station Monitoring equipment, supporting CPC loop disconnect for supervised applications. It is part of the broader Viking Electronics emergency communication line, which includes surface-mount, pedestal, and tower variants for different site conditions — the EWP flush-mount is one configuration in a larger family. For facilities requiring ADA emergency phone coverage across multiple zones, the 1600A Series supports consistent deployment with standardized analog integration across all units. Pair with a managed PoE switch infrastructure only if using a VoIP-to-analog gateway — the phone itself is passive analog and requires no network connection.

Frequently Asked Questions

Q: Does the E-1600-02A-EWP require an external power supply or batteries?

A: No. The E-1600-02A-EWP is phone-line powered — it draws all operating power from the analog telephone loop. No batteries, no AC power supply, and no UPS are required.

Q: Is the E-1600-02A-EWP ADA compliant?

A: Yes. The unit is designed and documented as ADA compliant, with handsfree operation to meet accessibility requirements for emergency communication.

Q: What type of mounting does the E-1600-02A-EWP support?

A: Flush mount only. The EWP variant is not designed for surface or pedestal mounting. Plan your rough-in opening and back-box depth accordingly before installation.

Q: Will the E-1600-02A-EWP work with a VoIP phone system?

A: Viking explicitly states that some phone systems not conforming to analog telecom standards may not be compatible with the 1600A Series. If your system uses VoIP, you will need a compliant analog FXS port or ATA that meets the loop voltage and ring signal specifications before this unit will operate correctly.

Q: What ring voltage does the E-1600-02A-EWP require?

A: The unit requires a minimum of 30VAC RMS at 20Hz for primary ring detection, or 25VAC RMS at 30Hz as an alternate. Verify your analog line or FXS port delivers at least one of these ring signal parameters.

Q: Is the E-1600-02A-EWP compatible with Central Station Monitoring equipment?

A: Yes. The unit supports CPC (Calling Party Control) disconnect with a minimum pulse length of 450ms, which is compatible with common Central Station Monitoring equipment used for supervised emergency communication applications.

James Everett

The detail I always flag first on the E-1600-02A-EWP is the CPC disconnect specification: 450ms minimum with no upper ceiling. That's not a footnote — it's what determines whether this unit will reliably terminate calls and reset for the next activation on your Central Station Monitoring setup. Get that wrong in your line selection and you end up with a unit that holds open lines or misses disconnect events, which is a real operational problem in a supervised emergency communication system.

Technical Highlights:

• -22 dBm Minimum Signal Level: Gives you meaningful headroom on long analog runs. In a large parking structure where the emergency phone is 800+ feet from the MDF, a weak signal level spec is what separates a unit that commissions cleanly from one that needs a line amplifier or rerouted home-run.
• Dual Ring Detection (30VAC/20Hz + 25VAC/30Hz): The two ring voltage/frequency thresholds mean this unit is more forgiving of variation in ring signal delivery than a single-spec design. When you're integrating with a legacy Centrex line or an older analog CO, that tolerance reduces commissioning callbacks.
• Busy Cadence Detection 300–2000 Hz, 450–550ms Standard / 150–300ms Fast Busy: The auto-dialer interprets both standard and fast busy cadences correctly within a wide frequency band. That matters when the monitoring center has a congested trunk — the dialer won't hang on a fast-busy indefinitely, it will detect, disconnect, and retry per the programmed behavior.

Deployment Considerations:

• Flush-mount only — this is not a field-selectable option. The rough-in back-box must be sized and positioned before drywall or masonry finish. Confirm the wall depth at every station location during pre-construction walk, not during trim-out.
• Viking's compatibility warning about non-standard phone systems is the one item most likely to generate a callback. If the facility uses a hosted UCaaS platform with FXS ATAs, bench-test the ring voltage and CPC signaling on the specific ATA model before placing a multi-unit order. Not all ATAs deliver 30VAC RMS ring.

This unit is the right specification for ADA emergency station coverage in parking structures, campus pedestrian paths, and industrial facility egress corridors — anywhere you have an analog loop, a flush-mount wall surface, and exposure conditions that rule out the non-EWP variant. It is not the right choice for a VoIP-only facility without verified analog compatibility at the port level.
