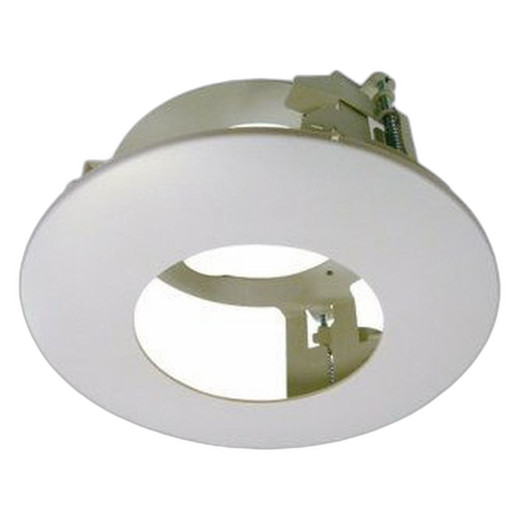

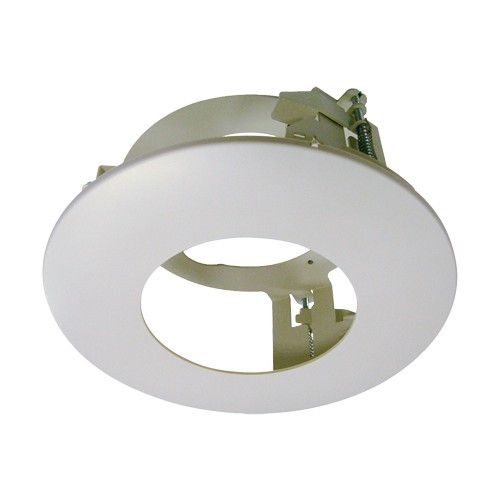

ACTi PMAX-1003 Flush Mount Kit
Overview
The ACTi PMAX-1003 is a flush mount accessory kit designed to conceal compatible ACTi dome and compact cameras within wall cavities. This eliminates the protruding dome that can draw attention in retail, hospitality, or corporate settings where aesthetic integration matters. The kit supports PoE-powered cameras (802.3af), so you avoid running separate power lines — a real time and cost save on retrofit jobs where wall runs are already tight.
Compatibility
The PMAX-1003 works with ACTi D6x, D7x, D8x, E61–E67, E7x (except E78), and E81–E88 series cameras. Verify your exact camera model against this list before ordering — flush mount kits are form-factor specific and won't adapt to different dome sizes or mounting flanges. If you're integrating across multiple camera families, confirm each model's compatibility.
Installation Notes
In-wall flush mounting requires a wall cavity or recessed installation box; the camera body sits flush or nearly flush against the drywall or backing surface. Ensure the wall cavity depth and width accommodate the camera's barrel diameter and lens protrusion — measure before cutting. PoE power delivery via standard 802.3af eliminates the need for dedicated 24VAC or 12VDC runs, reducing labor. For installations in fire-rated or insulated wall sections, verify local fire code compliance (some jurisdictions restrict equipment mounting inside rated walls). Test PoE availability from your switch before final wall closure.
What's in the Box
- Flush mount housing/trim ring (specific to ACTi D/E series)
- Mounting bracket and fasteners
- Installation template
