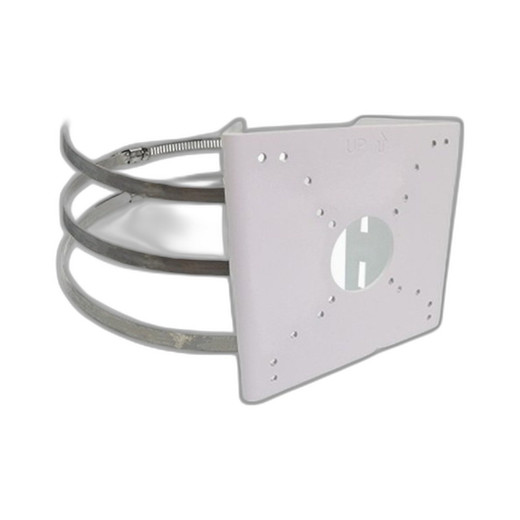

ACTi PMAX-0527 Pole Mount Bracket

The PMAX-0527 is a pole-mount bracket for ACTi dome and bullet cameras, built for installs where wall or ceiling mounting isn't an option — light poles, utility poles, and perimeter fence posts in parking lots, yards, and outdoor corridors. It clamps around poles ranging from 2.64" to 5" in diameter, covering most standard steel and wood utility poles without an adapter. Housed in white to match ACTi's outdoor camera line and rated for outdoor exposure, it carries a 3-Year Warranty and weighs 2.2 lb, so it adds minimal load to the pole or the camera's own mounting point.

Compatibility

PMAX-0527 is purpose-built for the ACTi Z4x, Z710, Z8x, Z9x, and A7x camera series. If you're deploying any of these lines on a pole run instead of a wall, this bracket is the matched mounting path rather than a generic third-party clamp — confirm your specific camera model falls in one of these series before ordering, since ACTi mounting accessories are series-specific and not universally interchangeable across the broader ACTi camera catalog.

Installation Notes

Pole diameter is the deciding constraint here: measure before ordering, since anything outside the 2.64"-5" range won't seat correctly in the clamp. This is a dedicated pole adapter, not a wall or corner bracket, so plan your cable run accordingly — pair it with a matched junction box or wall-mount base if your run transitions from pole to structure. As a PoE-compatible mounting point for PoE-powered ACTi cameras, it doesn't introduce any additional power requirements of its own; the camera's PoE drop still handles power and data. For broader camera placement planning across a pole-mounted perimeter, a camera selection and coverage guide is worth reviewing before finalizing pole locations. If you're running multiple pole-mounted cameras back to a head end, check network video recorders and PoE switches sized for the total camera count on that run.
