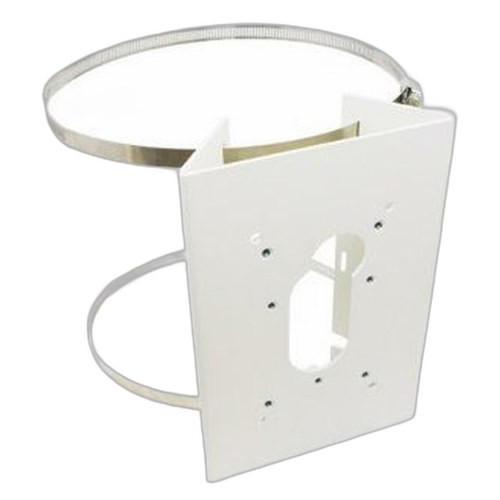

ACTi PMAX-0503 Pole Mount Kit
Overview
The PMAX-0503 is a pole mounting bracket engineered for ACTi's 2MP PoE camera line. It solves the standard integration problem: how to mount a dome or compact camera on a standard vertical pole (1.5–2.5 inch diameter range) without custom fabrication. The kit handles both indoor and outdoor deployments, making it useful for perimeter fencing, parking structures, campus pathways, and building fascias where pole-based mounting simplifies cable runs and keeps cameras at eye level or above.
Compatibility
The PMAX-0503 is engineered for six specific ACTi camera models: PMAX-0102, PMAX-0312, PMAX-0313, PMAX-0314, PMAX-0702, and PMAX-1106. All are 2MP PoE-powered cameras, meaning your switch power budget remains predictable at 13W per camera (standard 802.3af). This compatibility scope simplifies spares inventory and standardizes mounting geometry across multi-camera projects. If you're deploying a different ACTi series or megapixel class, confirm compatibility with the camera datasheet before ordering.
Installation Notes
The mount is rated for both indoor and outdoor environments — no seasonal removal required. PoE power delivery means no separate power conduit to the pole; a single Ethernet run handles both signal and power. Pole diameter tolerance and any torque specifications are not detailed in available documentation; consult the hardware manual or contact pre-sales engineering if your pole diameter falls outside standard 1.5–2.5 inch range or if you require wind-load calculations for exposed installations.
What's in the Box
- Pole mount bracket assembly
- Hardware (bolts, washers, nuts)
- Installation template
