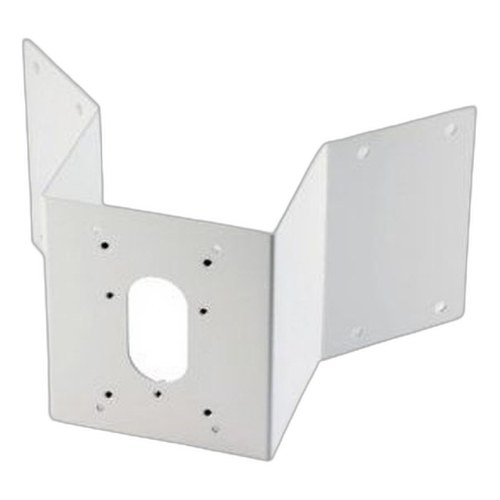

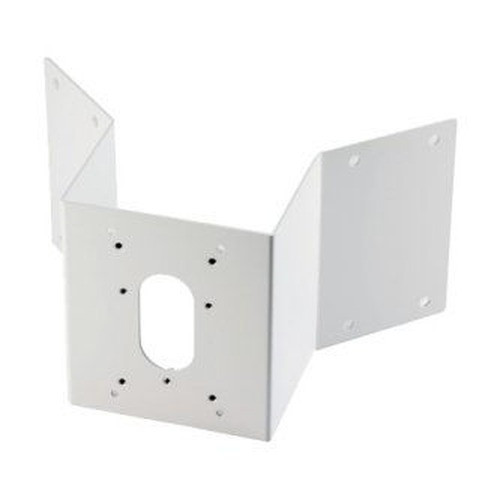

ACTi PMAX-0402 Corner Mount White

Overview

The PMAX-0402 is a purpose-built corner mount for ACTi 8MP camera deployments where wall or corner placement is the specified installation geometry. White powder-coated finish suits indoor and outdoor environments without visual intrusion. The mount accommodates PoE-powered cameras, integrating power and signal delivery without requiring separate infrastructure at the installation point—a real advantage when running camera cabling through conduit or across open spans where dedicated power would add cost and complexity.

Compatibility

Designed for ACTi 8MP camera systems and ONVIF-compliant IP cameras that fall within the weight and form factor envelope supported by the mount bracket. Suitable for wall and corner-mounted deployment scenarios in networked surveillance architectures. Verify your specific camera model against ACTi's compatibility matrix before ordering—corner mounts are geometry-specific, and forcing an incompatible camera into the bracket can damage both the camera and the mount.

Installation Notes

White finish is powder-coated for corrosion resistance in humid and coastal environments. Confirm wall material (concrete, masonry, drywall) and load-bearing capacity before installation—8MP cameras with environmental housings can weigh 3–5 lbs when fully assembled. PoE power support means your network switch's PoE budget and cable run length (max 100 meters per 802.3af standard) are the limiting factors, not local power availability. No separate power supply required at the mount.
